Vertical lifelines installed on telecom towers. 50 Metres lifelines with its accesories.Fall Protection System,

Name: Vertical lifelines installed on telecom towers. 50 Metres lifelines with its accesories.Fall Protection System,
Brand: Infinity group
Availability: InStock

Specifications

FALL PROTECTION SYSTEM

Engineered for Safety at Heights

Rail-Based Fall Protection System

The TF-R/F series systems are compatible with aluminum and steel ladders. Compliant with EN 353-1, they feature integrated mechanical structures for high impact resistance and an anti-misinstallation design. The arrester slides synchronously with the user and locks instantly upon fall detection.

Applications: Wind Power (Onshore/Offshore), Utility Towers, Petrochemical, Construction, Railway Maintenance.

Product Variants

TF-R: Internal Sliding Rail
TF-F: External Clamping Rail
TF-R5: Internal Sliding Rail (Enhanced)

Technical Specifications

Parameter	Specification
Rail Type	Internal Sliding / External Clamping
Compatible Arresters	SL-R50 / R50E / R60S / F10
Ladder Compatibility	Aluminum or Steel
Max. Load	16 kN
Standards	EN 353-1:2014+A1:2017; ANSI A14.3; CSA Z359.2.1; GB/T 24542-2009

Rail-Based Fall Arresters

Precision-cast stainless steel construction ensures lightweight durability, corrosion resistance, and acid/alkali tolerance. Dual anti-misinstallation design ensures correct setup.

*All models can be installed or removed at any point along the rail.*

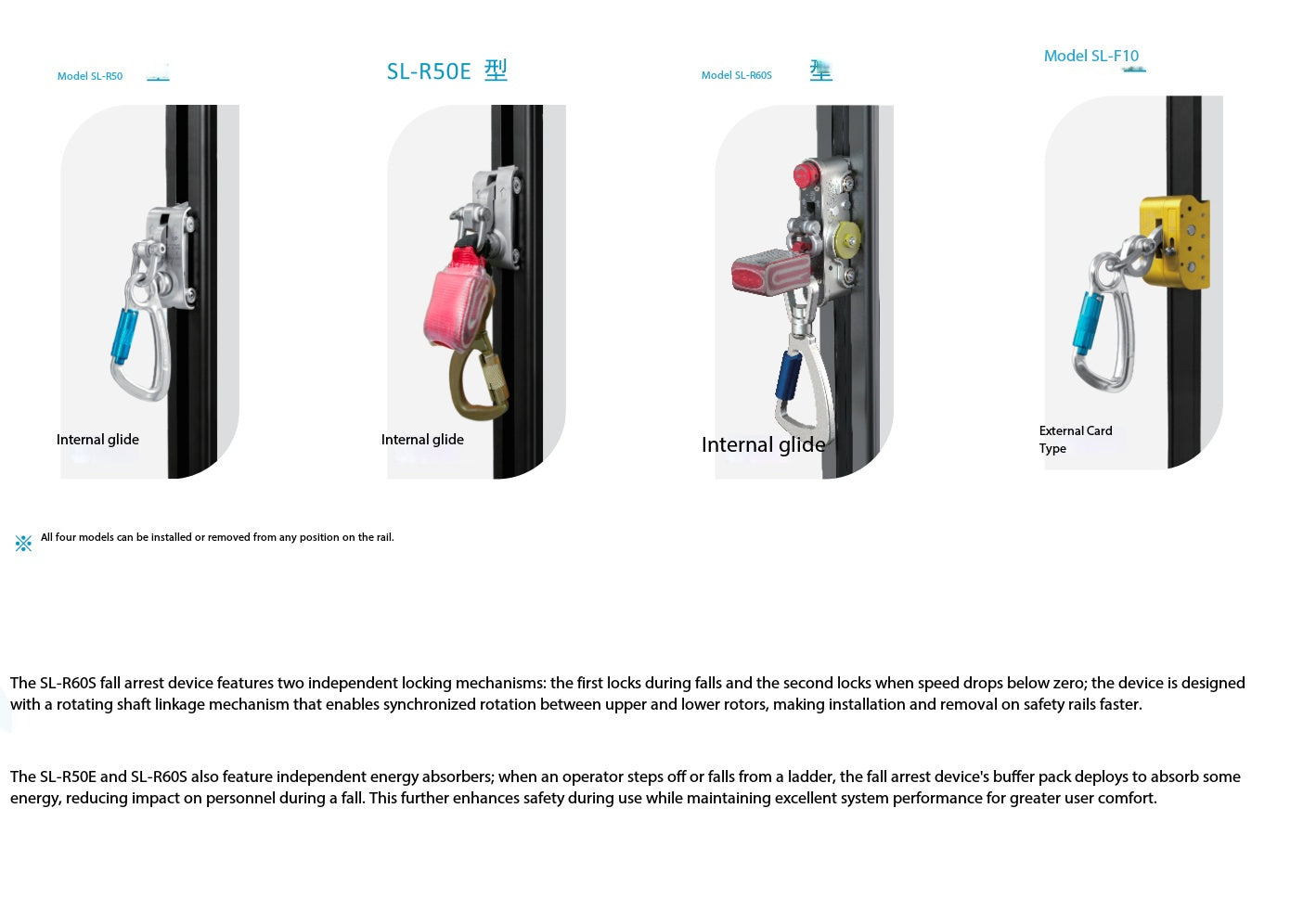

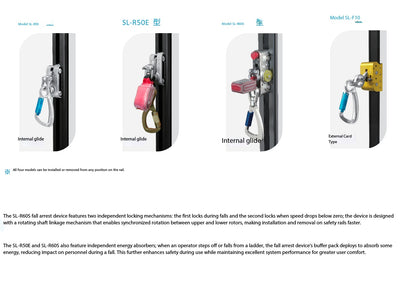

Key Models

SL-R50: Standard compliance model.
SL-R50E: Integrated energy absorber reduces fall impact.
SL-R60S: Dual independent locking mechanisms (fall & overspeed arrest); rotating shaft linkage for quick installation.
SL-F10: Optimized for external clamping rails.

Specifications

Model	SL-R50	SL-R60S	SL-F10	SL-R50E
Compatible Rail	TF-R/R5	TF-R/R5	TF-F	TF-R/R5
Rated Load	140 kg	140 kg	140 kg	140 kg
Max. Static Load	15 kN	16 kN	15 kN	16 kN
Standards	EN 353-1 ANSI A14.3	AS/NZS 1891.3 ANSI Z359.16 CSA Z259.2.4	EN 353-1	EN 353-1 ANSI Z359.16
Certifications	CE	CE, NA, AU	CE	CE, NA

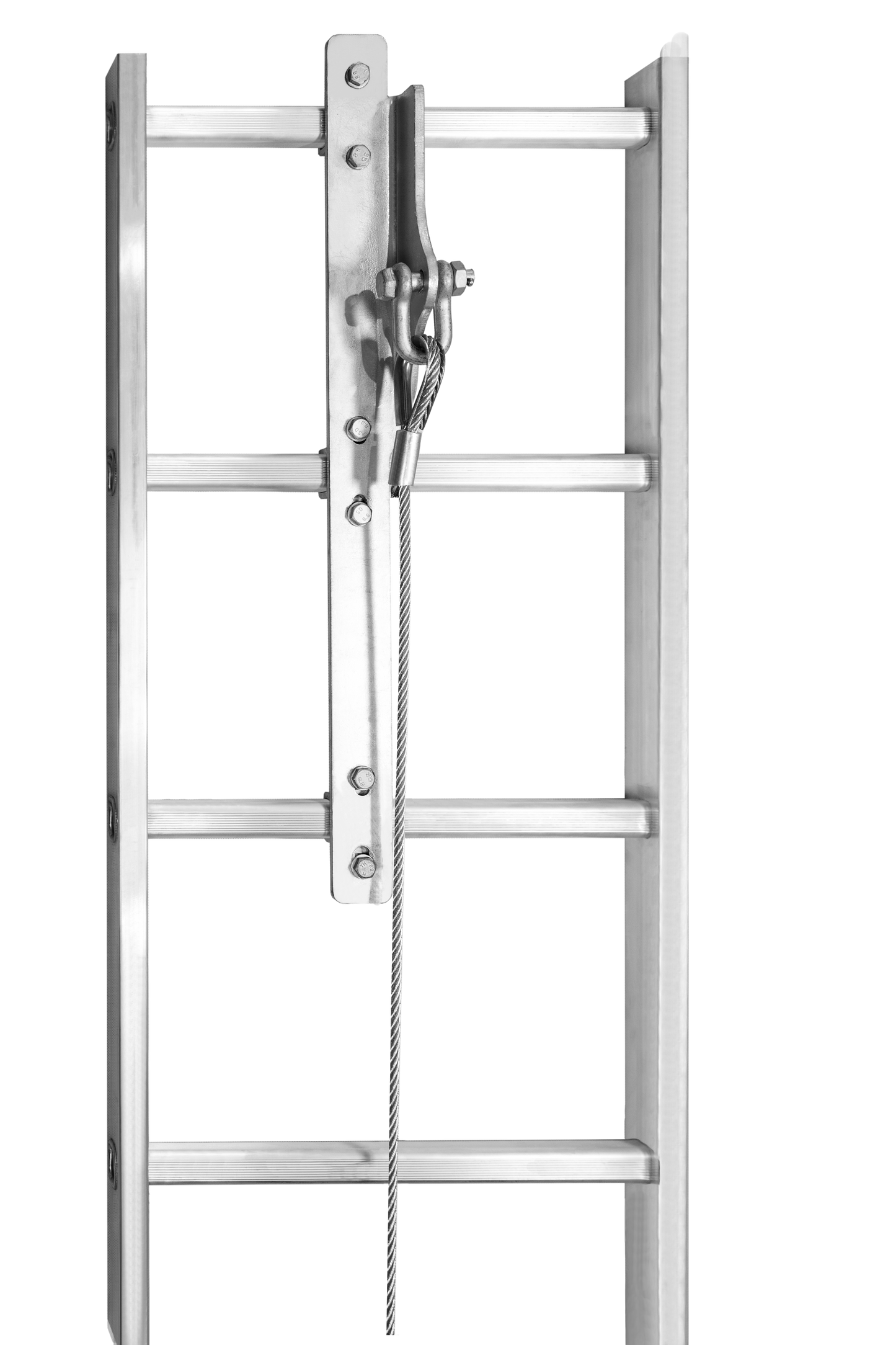

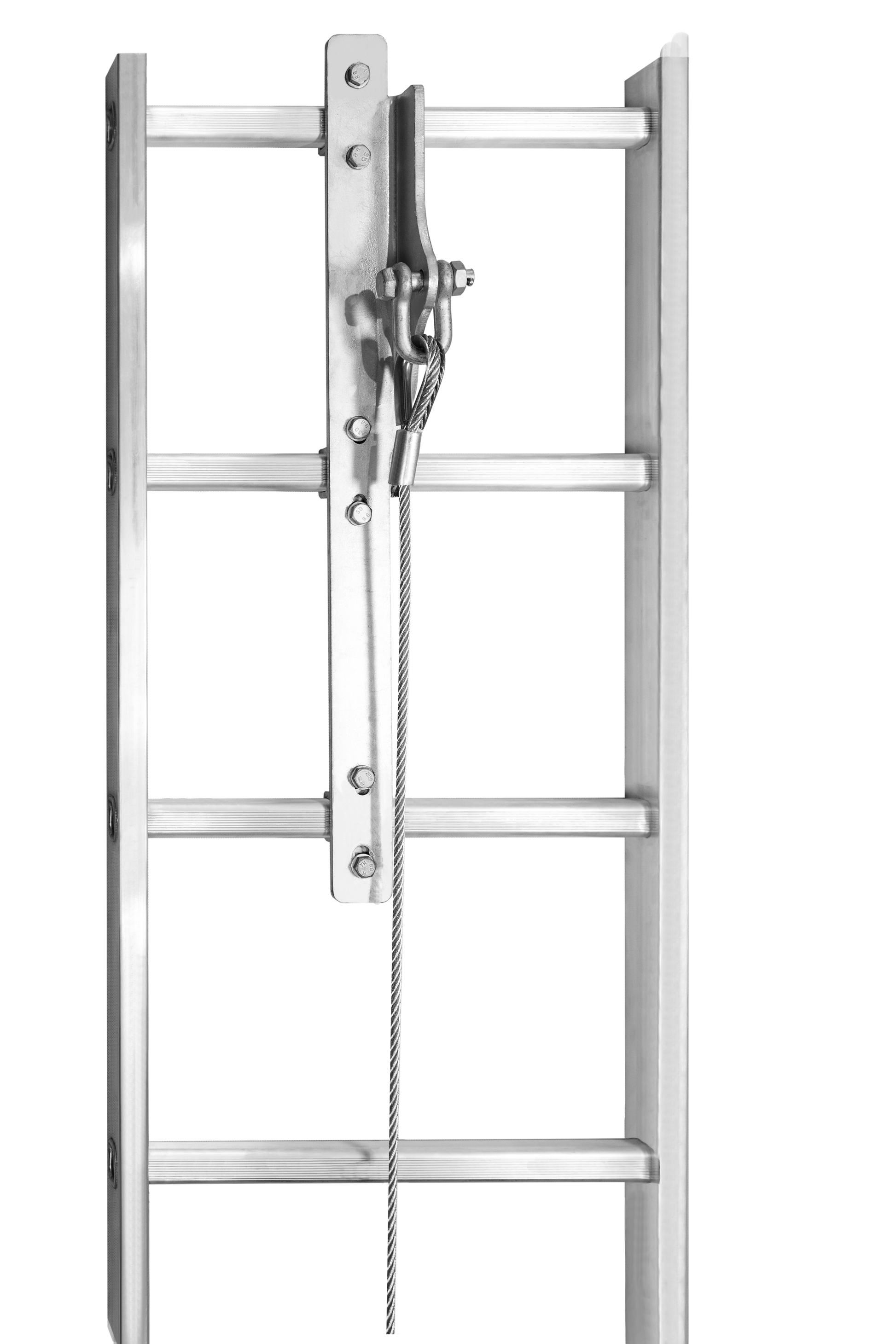

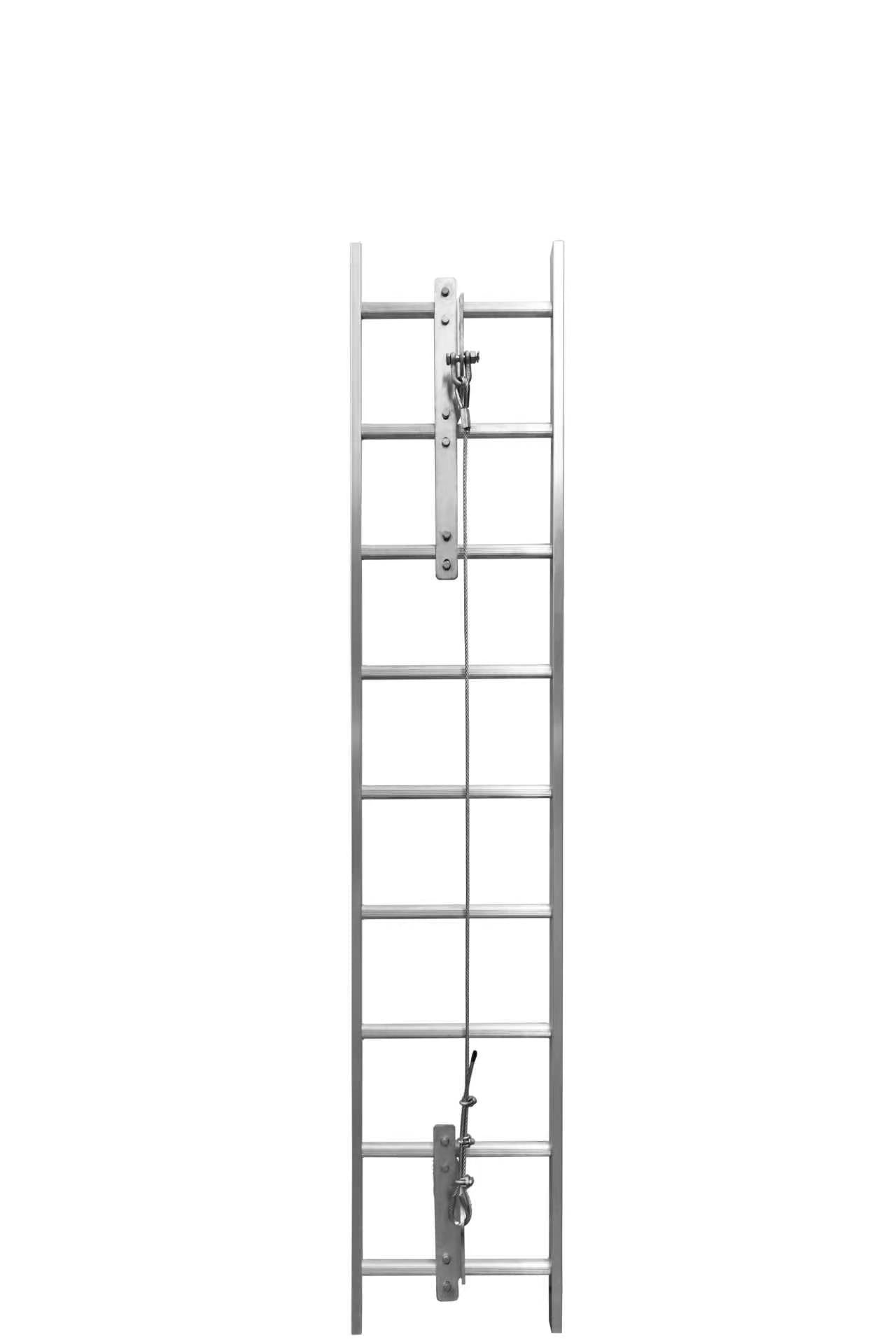

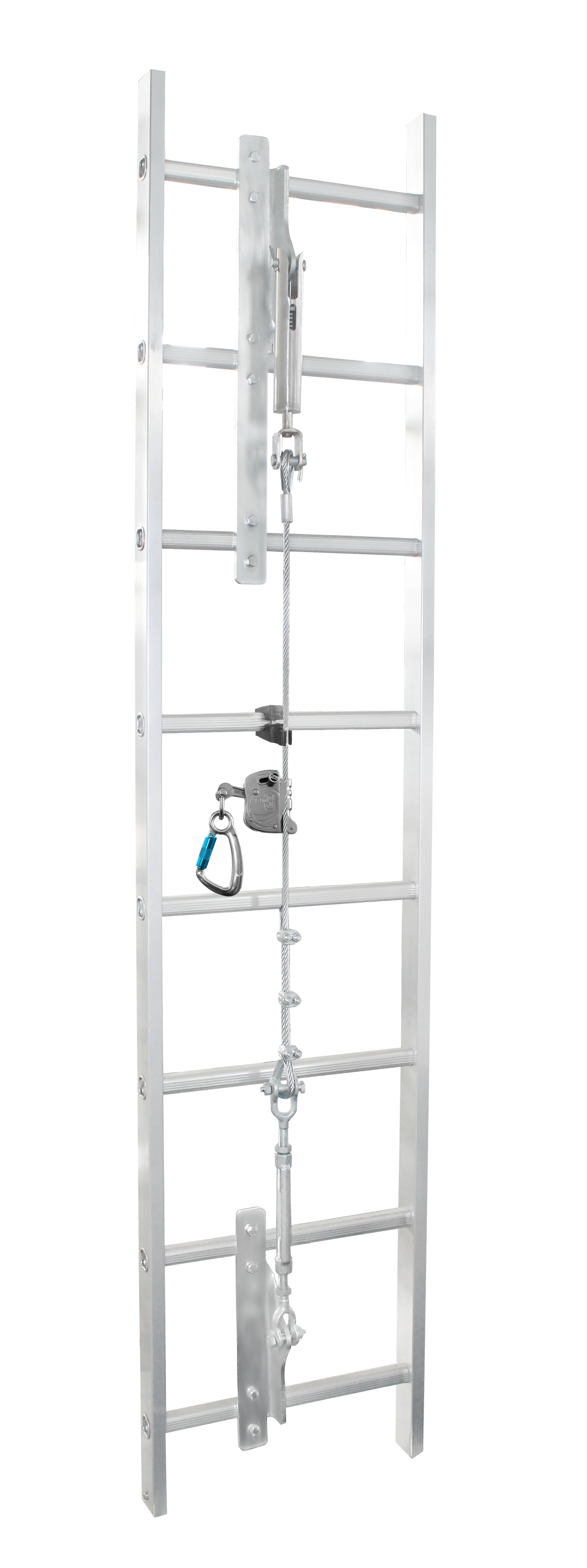

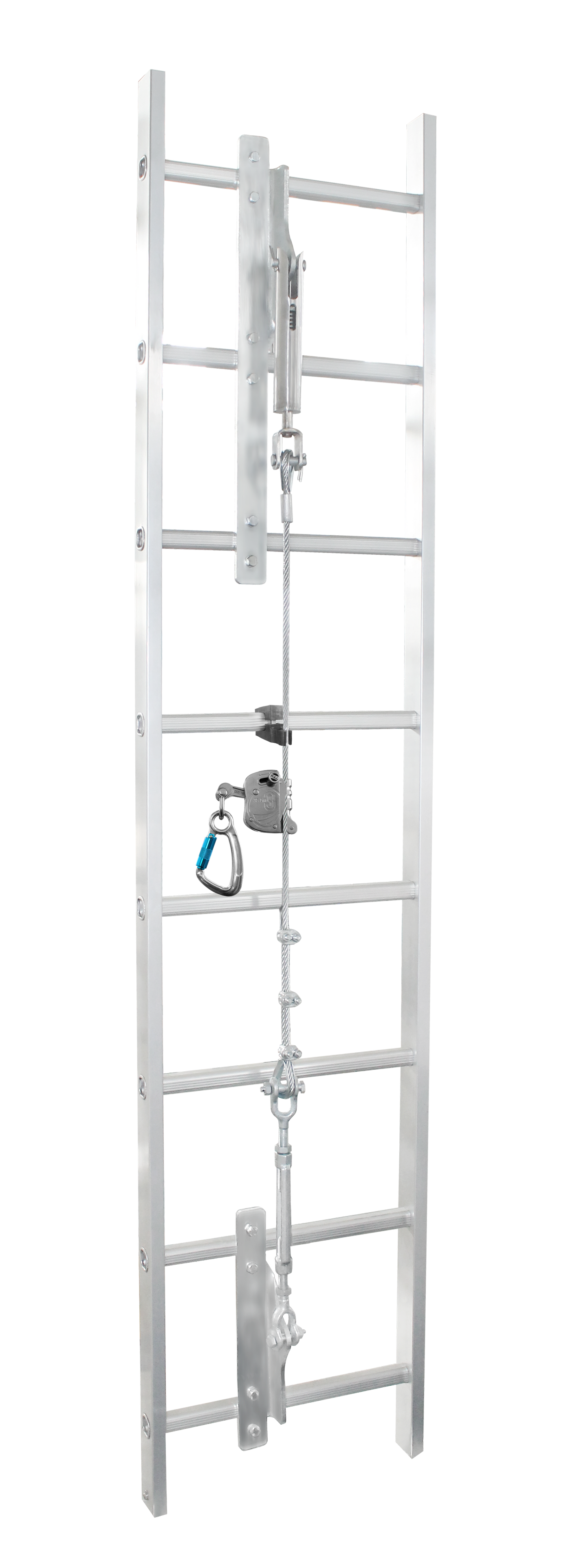

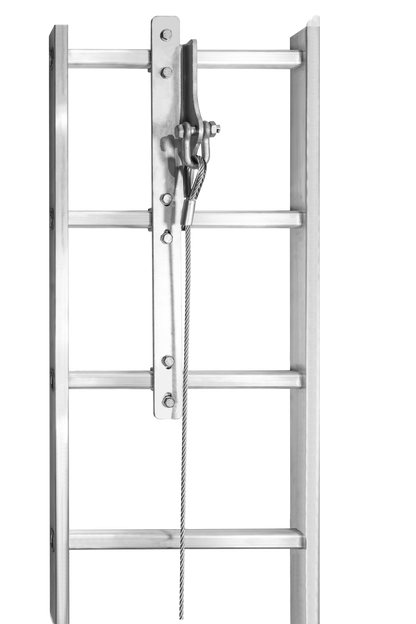

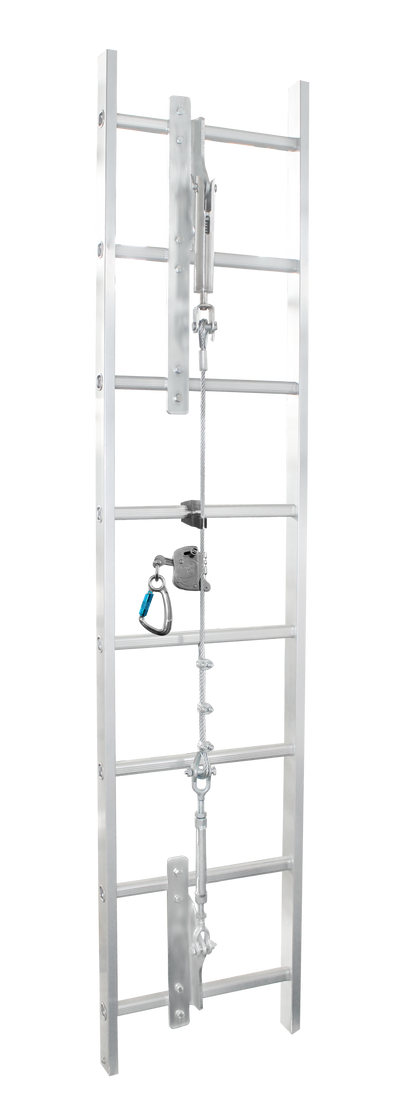

Cable-Based Fall Protection System (TF-80/83/10)

This system comprises a tensioned steel cable, anchor points, intermediate cable clamps, and a rolling arrester. Intermediate clamps prevent lateral sway.

Arrester Advantages

Compatible with 8–10 mm cables.
Removable at any point on the cable.
Spring-loaded instant lock mechanism.
Stainless steel, corrosion-resistant construction.
Integrated rollers for smooth, low-noise operation.

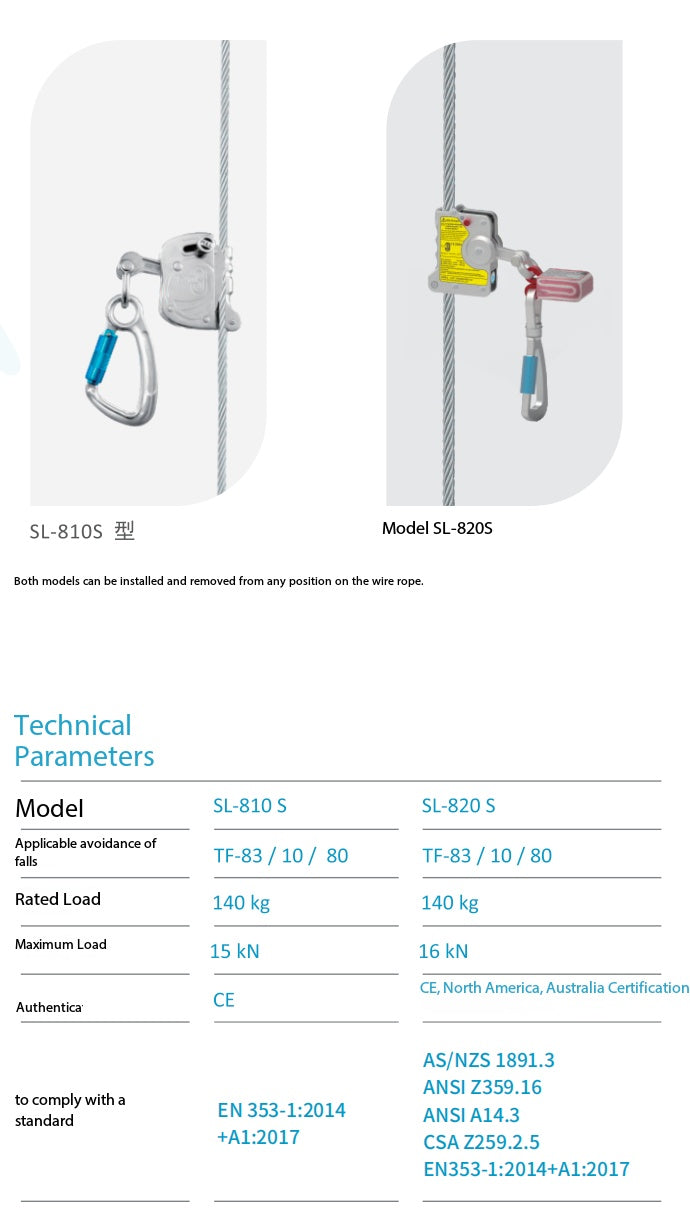

Specifications

Model	SL-810 S	SL-820S
Compatible System	TF-83 / TF-10 / TF-80	TF-83 / TF-10 / TF-80
Rated Load	140 kg	140 kg
Max. Load	15 kN	16 kN
Certifications	CE	CE, NA, AU
Standards	EN 353-1:2014+A1:2017	AS/NZS 1891.3 ANSI Z359.16 ANSI A14.3

5. Compliance & Disclaimer

This equipment must be installed and used in accordance with applicable local regulations, industry standards, and the manufacturer’s instructions. Installation must be performed by qualified personnel trained in height safety.

Regular inspection and maintenance are mandatory to ensure continued compliance with safety standards (e.g., EN 353-1, ANSI Z359). Any modification to the equipment voids certification and warranty.

The information contained in this catalog is subject to change without notice as part of our continuous product improvement process.
