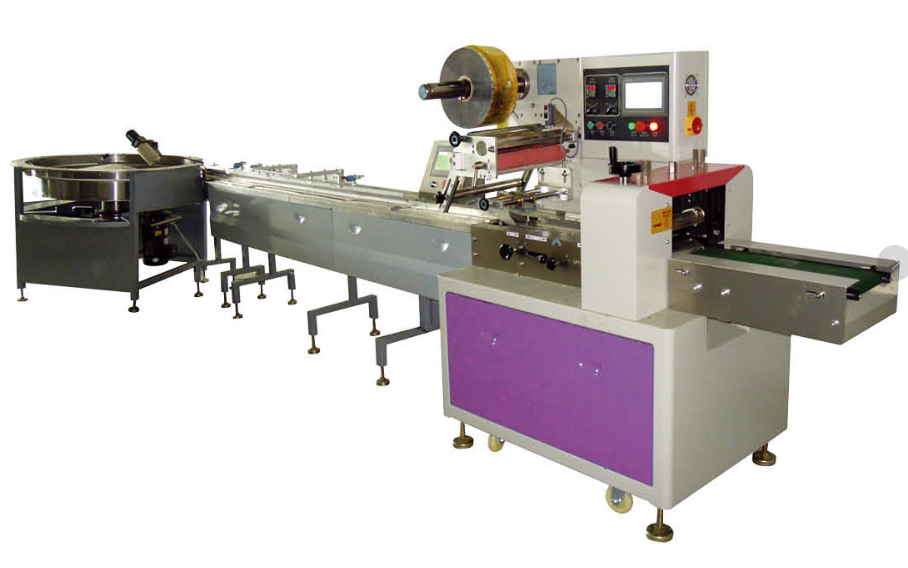

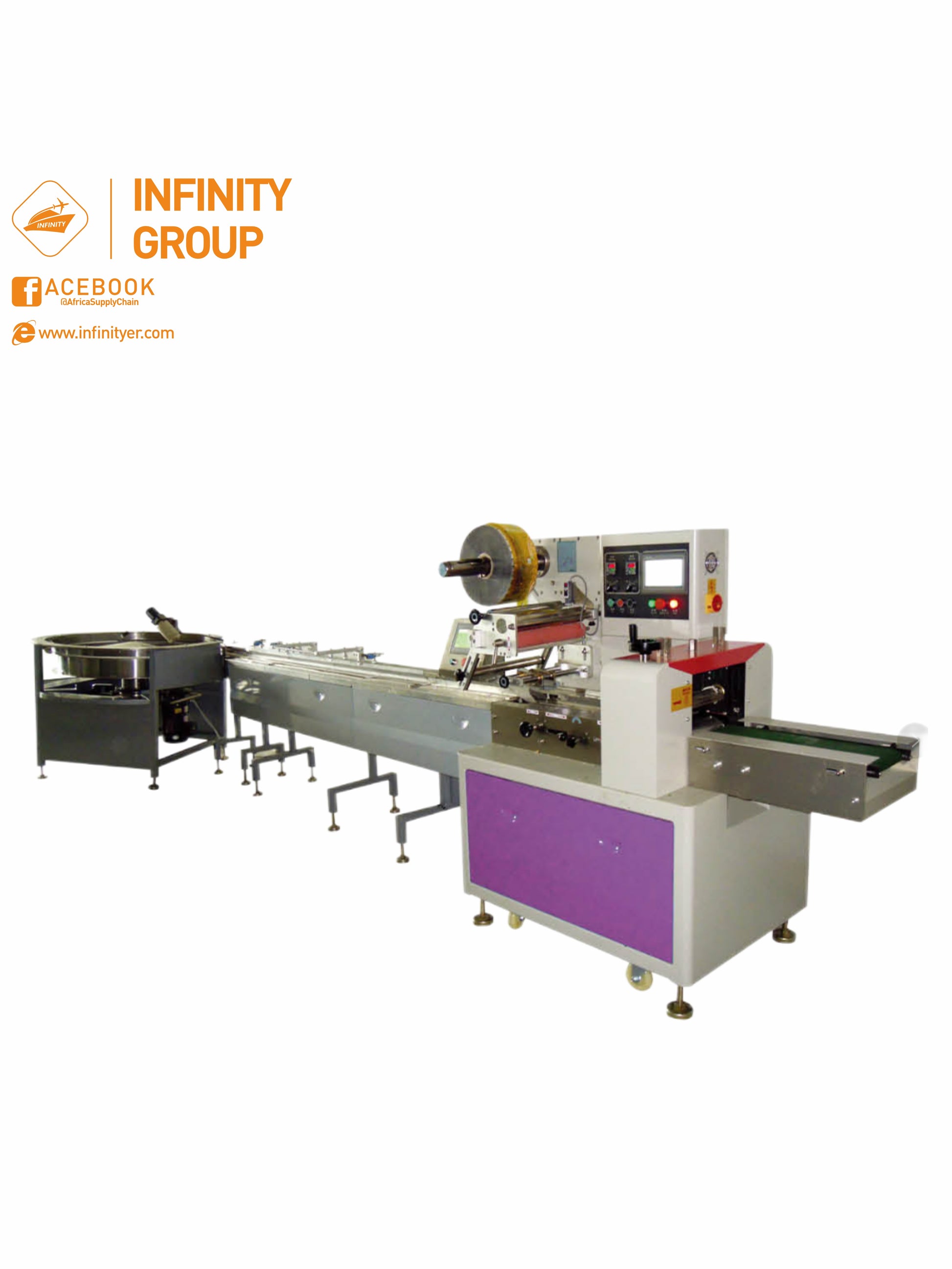

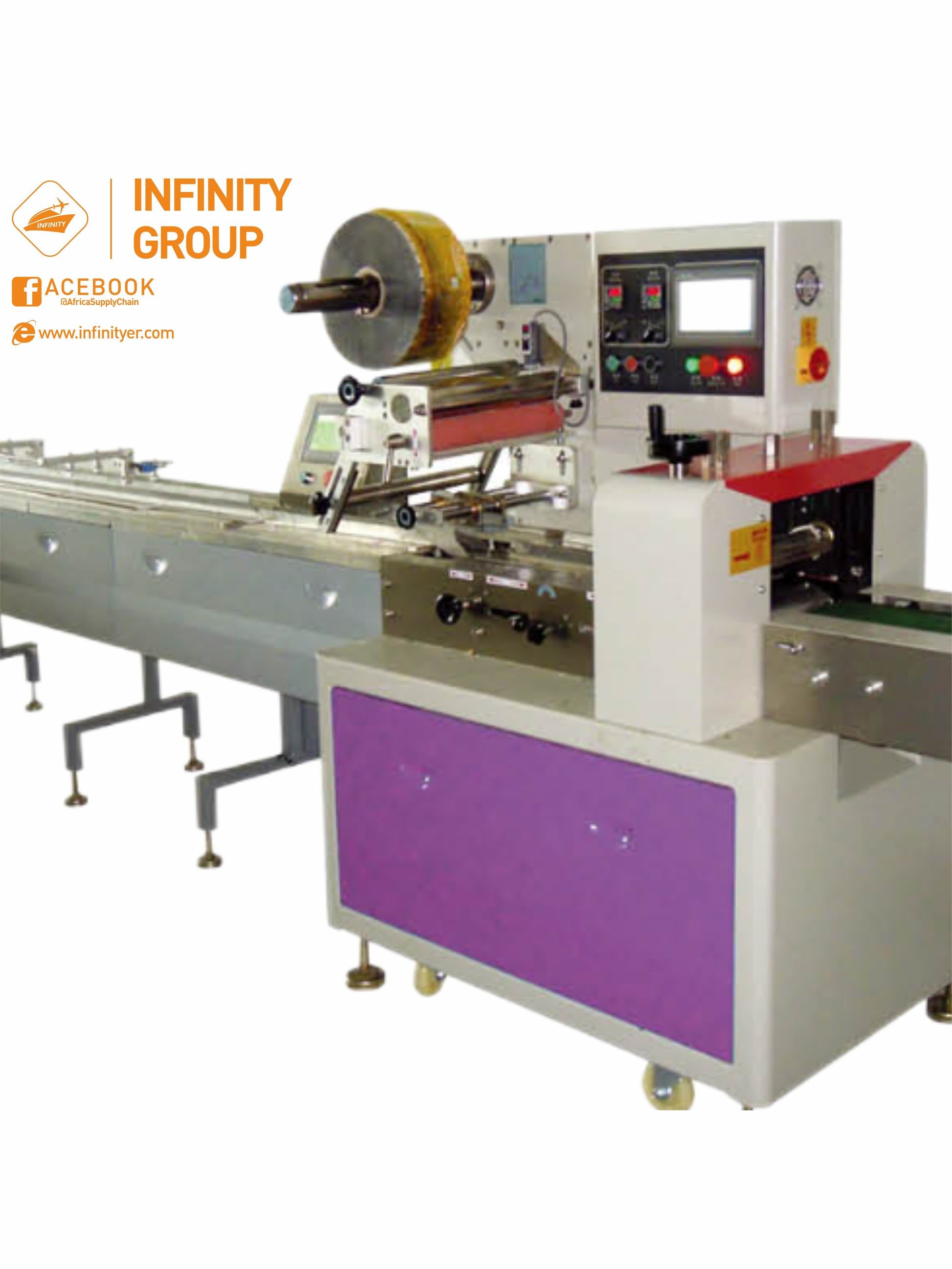

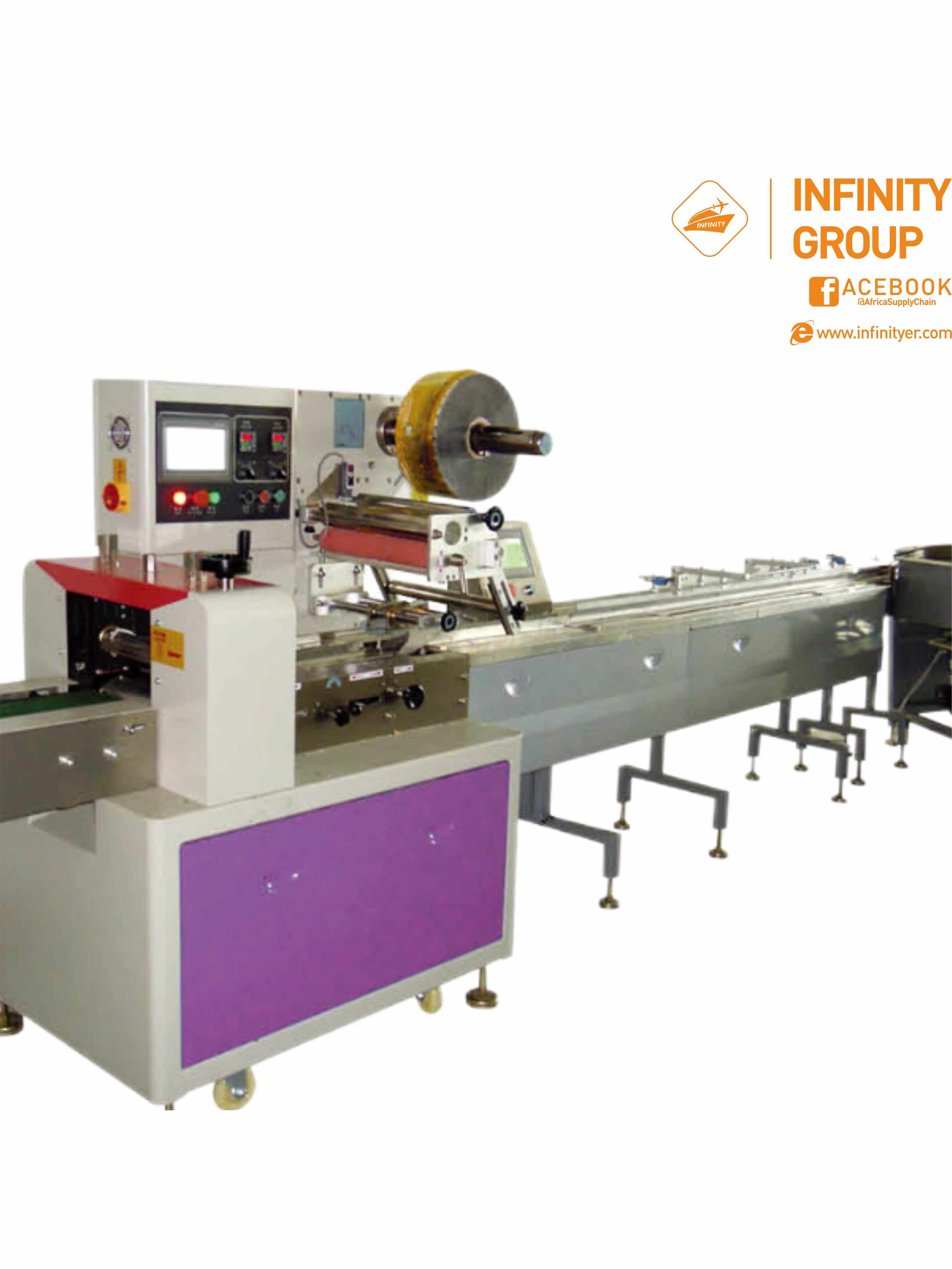

Turntable Automatic Packing System TCZB-250

Specifications

Technical specifications

Model: TCZB-250B
Film width: Max.250mm
Bag length: 65-190mm or 120-280mm
Bag width: 30-110mm
Product height: Max.40mm
Film roll diameter: Max.320mm
Packing speed: 40-230 packs/min
Power specification: 220V, 50/60HZ, 2.4KVA
Machine size: 3770*670*1450
Machine weight: 800kg

Feature:

Feeding and packing line Used to arrange,feed and pack rice cracker FeaturesThe speed can reach 250bags/min.(depend on the material, the product size and the package size)It can achieve a whole automatic packing process from handling,feeding to packing(without manual operation)High efficiency and less waste,and keeping the workshop clean and tidy Can be mating with different type of packing machine that manufactured by different factories Onlyone worker is need All stainless steel, durable PLC control system

Function and structure characteristics

1. Dual frequency conversion control,bag length can be set and cut in one step,savingtime and film.

2. Interface features easy and quick setfing and operation.

3. Self failure diagnosis,clear failure display.

4. High sensitivity photoelectric eye color tracing,numerical input of cuing sealing positiorfor estra accuracy.

5. Temperature independent PID control.more suitable for packaging different materials

6. Positioned stop function,without sticking knife or wasting flim.

7. Simple driving system, reliable working,convenient maintenance.

8. All control is realized through software,easy for function adjusting and technical upgrade.

Scope or application

Packaging various. kinds of regular objects like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates. etc
