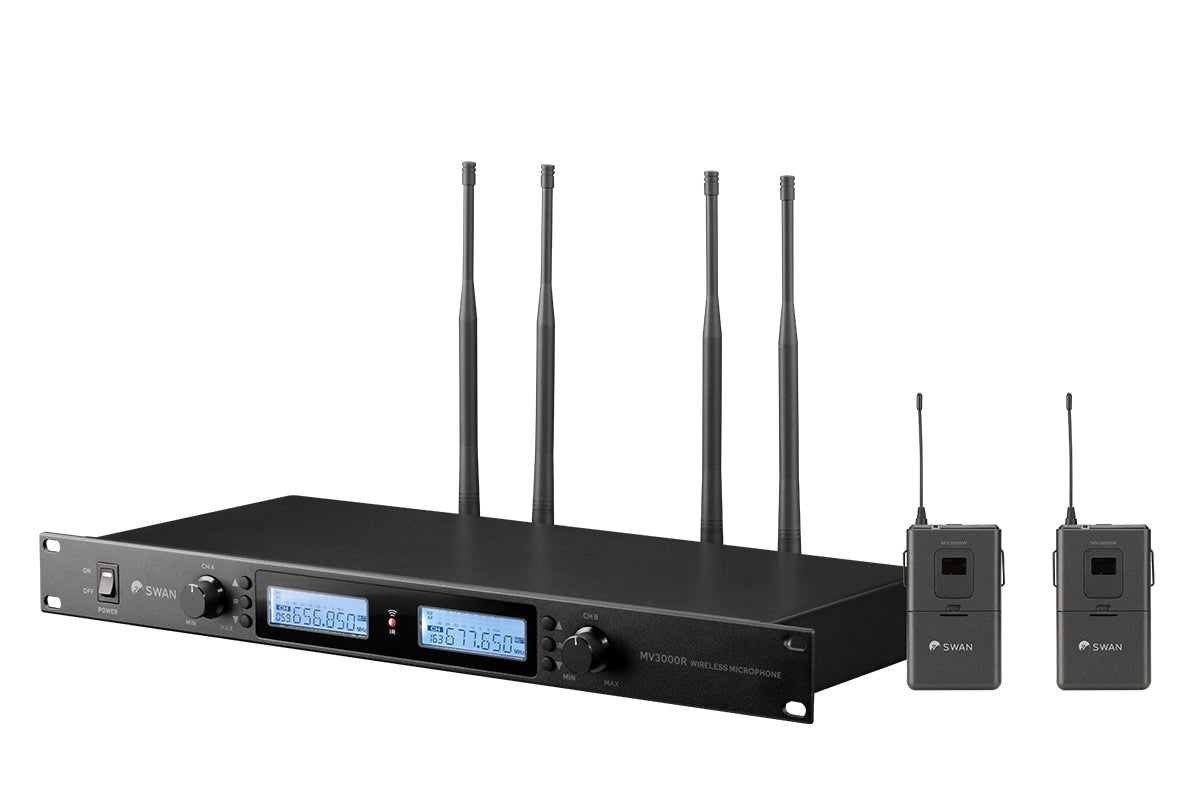

True Diversity Long Range Wireless Bodypack Wireless Microphone Set MV3000-W2

System

Radio frequency range: 520-830MHz

Modulation mode: FM frequency modulation

Available bandwidth: 30MHz per channel

Number of channels: 200-300 channels with infrared automatic frequency

matching.

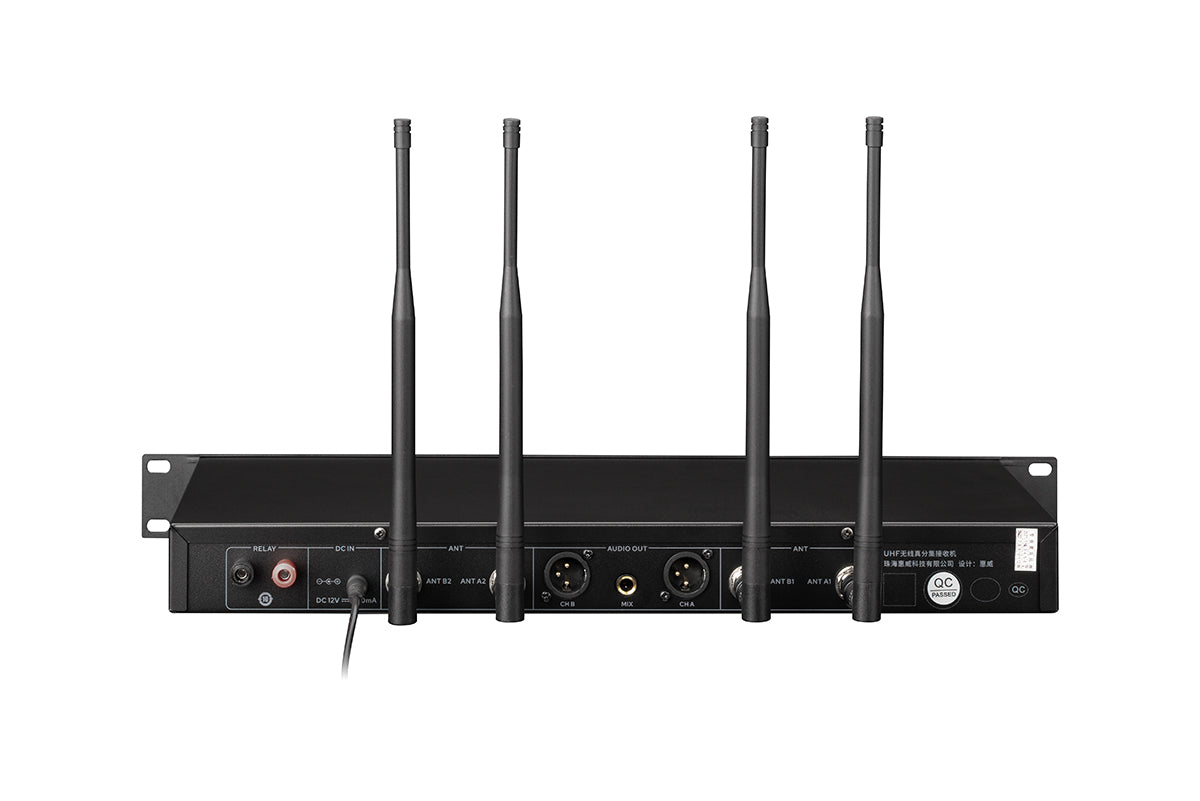

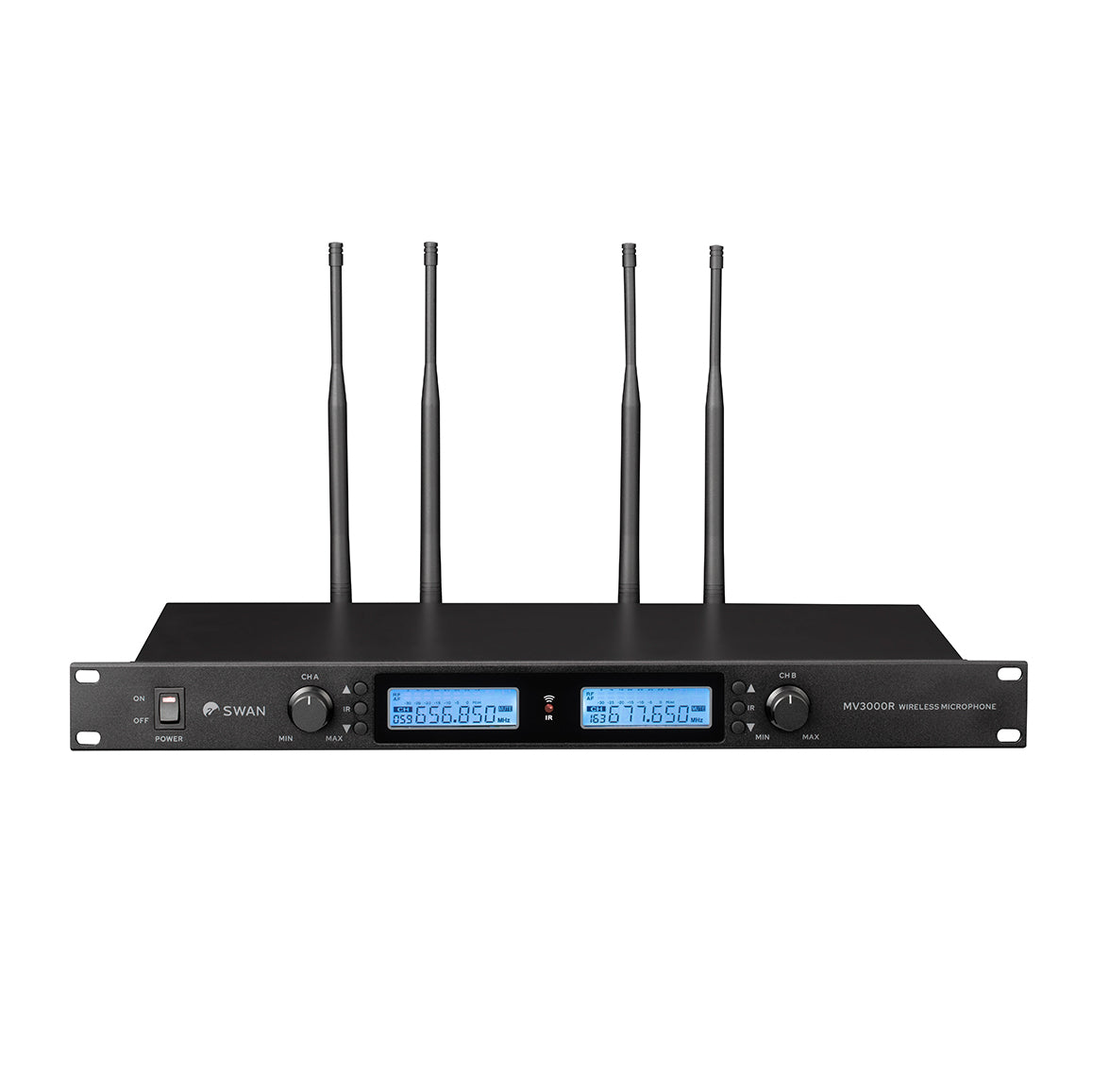

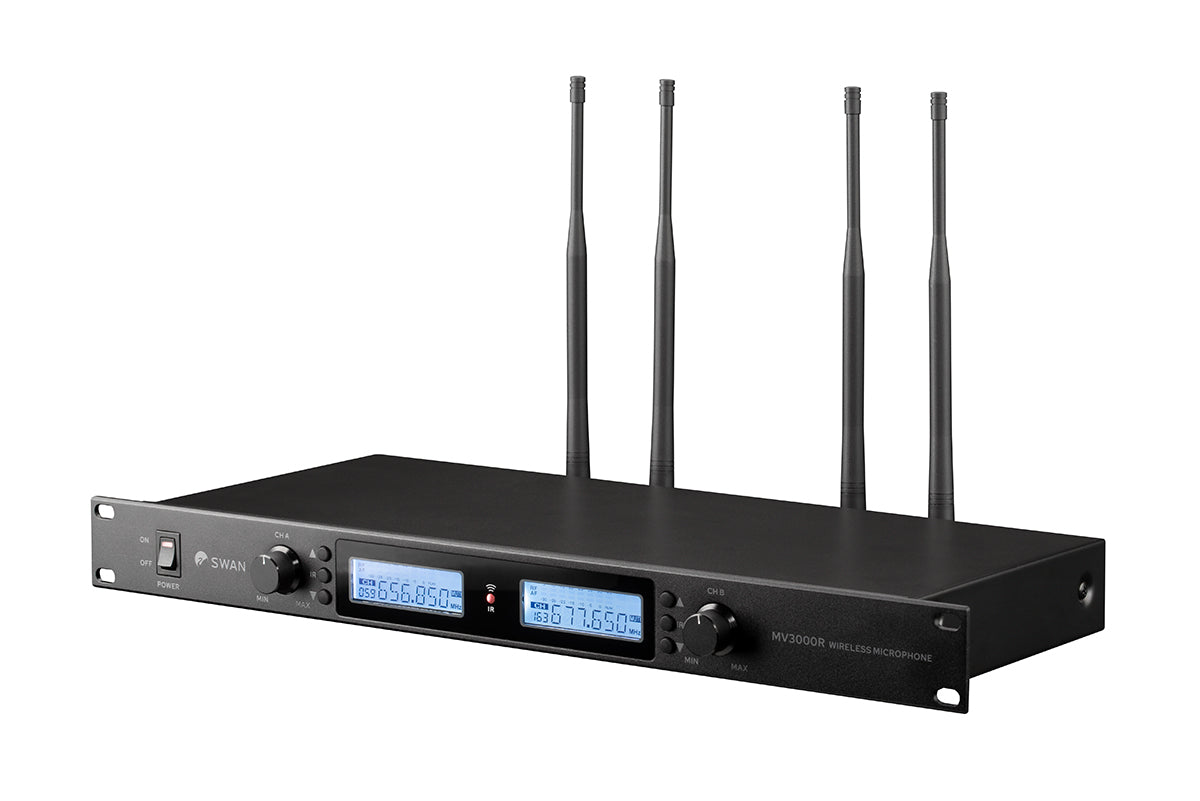

Wireless Receiver

Receiver mode: secondary frequency conversion superheterodyne

Intermediate frequency: first intermediate frequency: 110MHz, second

intermediate frequency: 10.7MHz

Wireless interface: BNC block

Sensitivity: 12dB(80dB S/N)

Silence threshold: 0-40dB

Spurious suppression: more than 80dB

Output: Unbalanced:+4db /5Ω

Balance: +10dB(2.5V)600Ω

Supply voltage: DC11-16V(rated12V)

Current: single receiving, less than 200mA, double receiving, less than 350mA

Body size: 484x214x44mm (length x width x height)

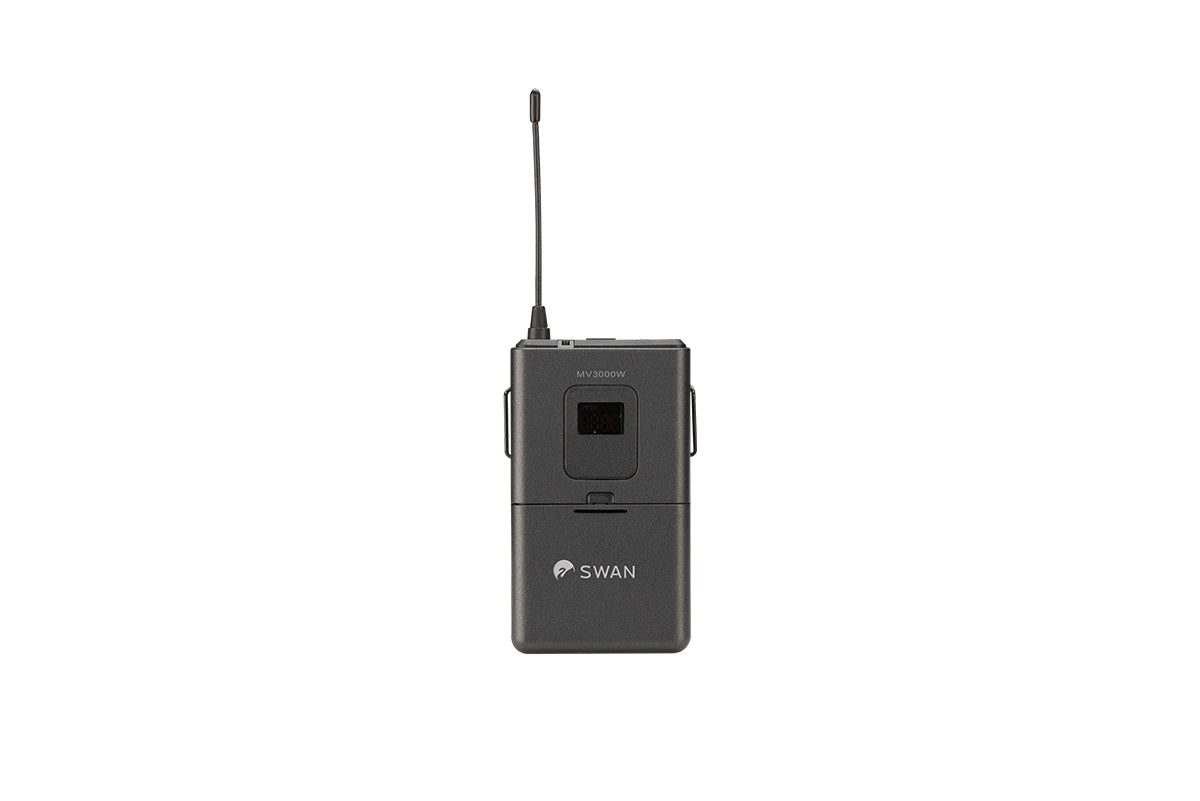

Wireless Microphone

Standby comsupmtion: less than 1mA@3V

Sensitivity: more than -46dB

Power supply: 1.5V×2

Frequency: 40Hz-18Hz ±3dB

N.W. 15g

Service time (alkaline battery): not less than 8 hours.

Size: 112*68*26mm
