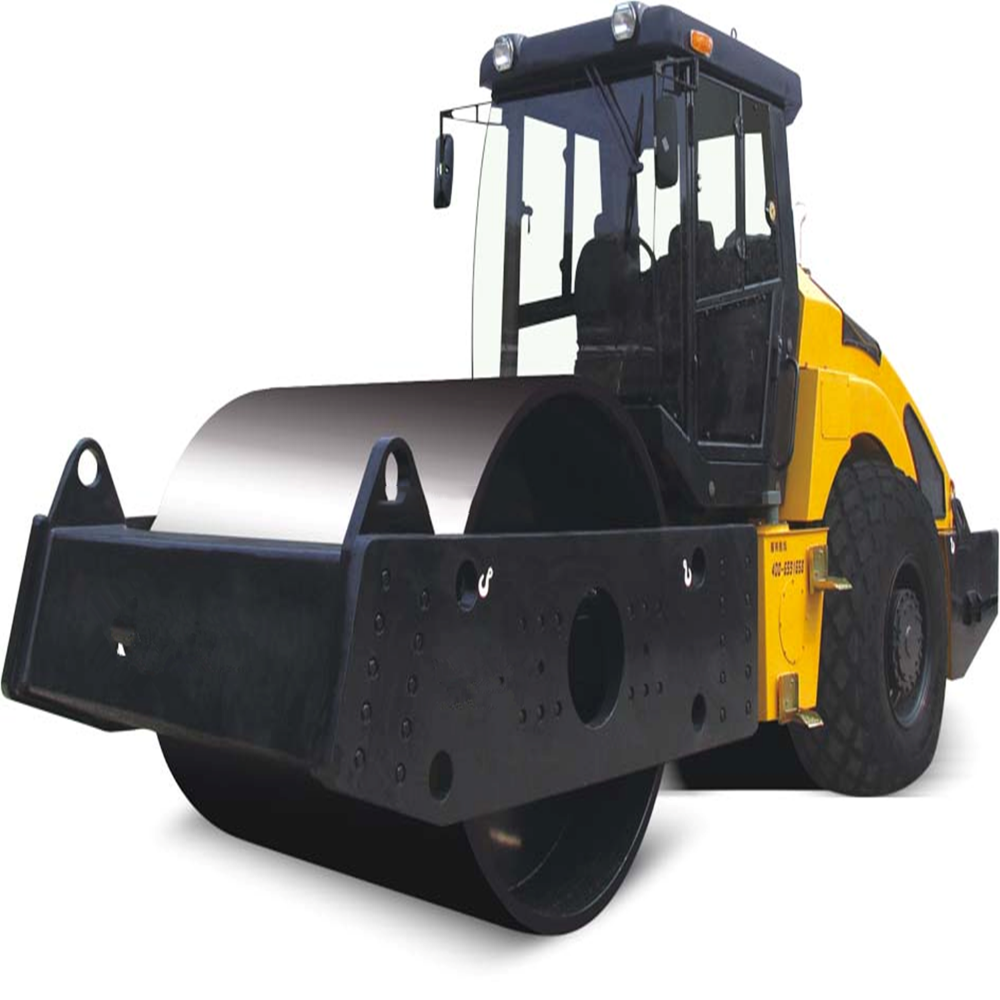

Smooth Dram Roller Road Construction Machine Single Drum Roller 50kg/cm YDKT620B2022

Main Technical Parameters

• Model: YDKT620B2022

• Operating mass (kg): 20000

• Staticlinea load (N/cm): 500

• Vbration amplitude (mm): 1.9/0.95

• Vibration fequency (HZ): 30

• Centrifugal force（kn): 410/300

• Travel Speed (km/h): 2/4/10.5

• Grade ability (%): 30

• Turning radius (mm): 7500

• Overall dimension (mm): 6665*2300*3090

• Vibration round width (mm): 2100

• Wheelbase（mm): 3380

• Diesel model: WP6G175E201

• Diesel powel (kw): 129

Main Features

1. Mechanical drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance

2. Adopt extra-pressure diesel engine,made by Shanghai Diesel Engine factory with bigpower man reserving co efficiency, which comply with the operating conditions above 4000 meters altitudes.

3. Two sets of brake devices,a hand brake and foot pedal brake,assure the machine's safety and dependability.

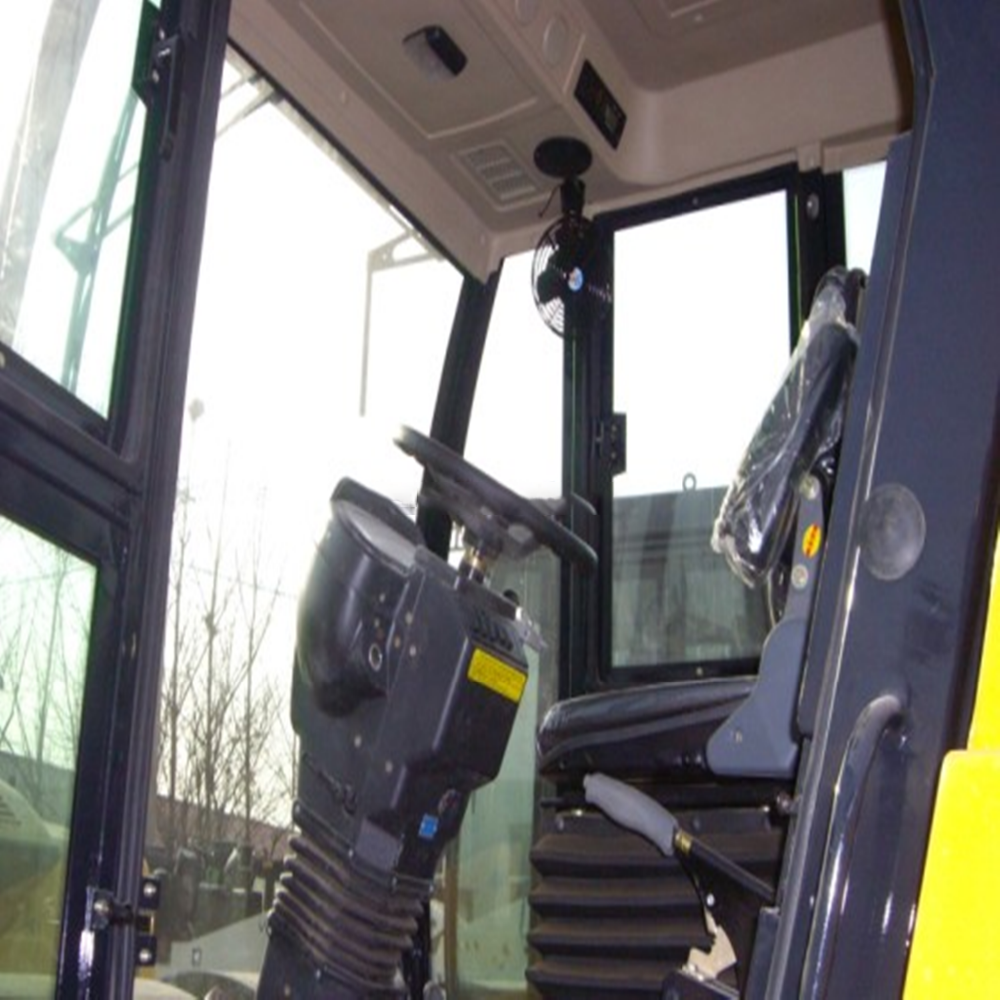

4. Spacious and comfortable cab mounted on top guality rubber damping elements,with hydraulic upturn function to faciliate the repairand maintenance.

5. World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.

6. Vibration system adopts imported hydraulic components.

7. Smooth drum and padfoot drum can be replaced each other at any time broadening the operating space.
