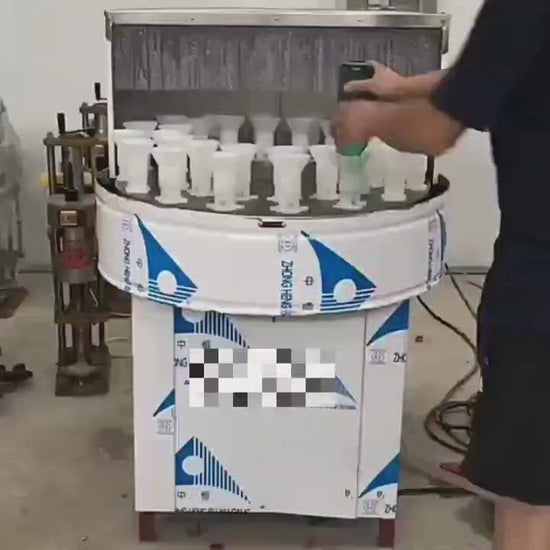

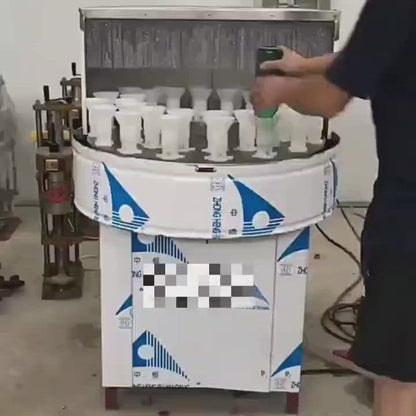

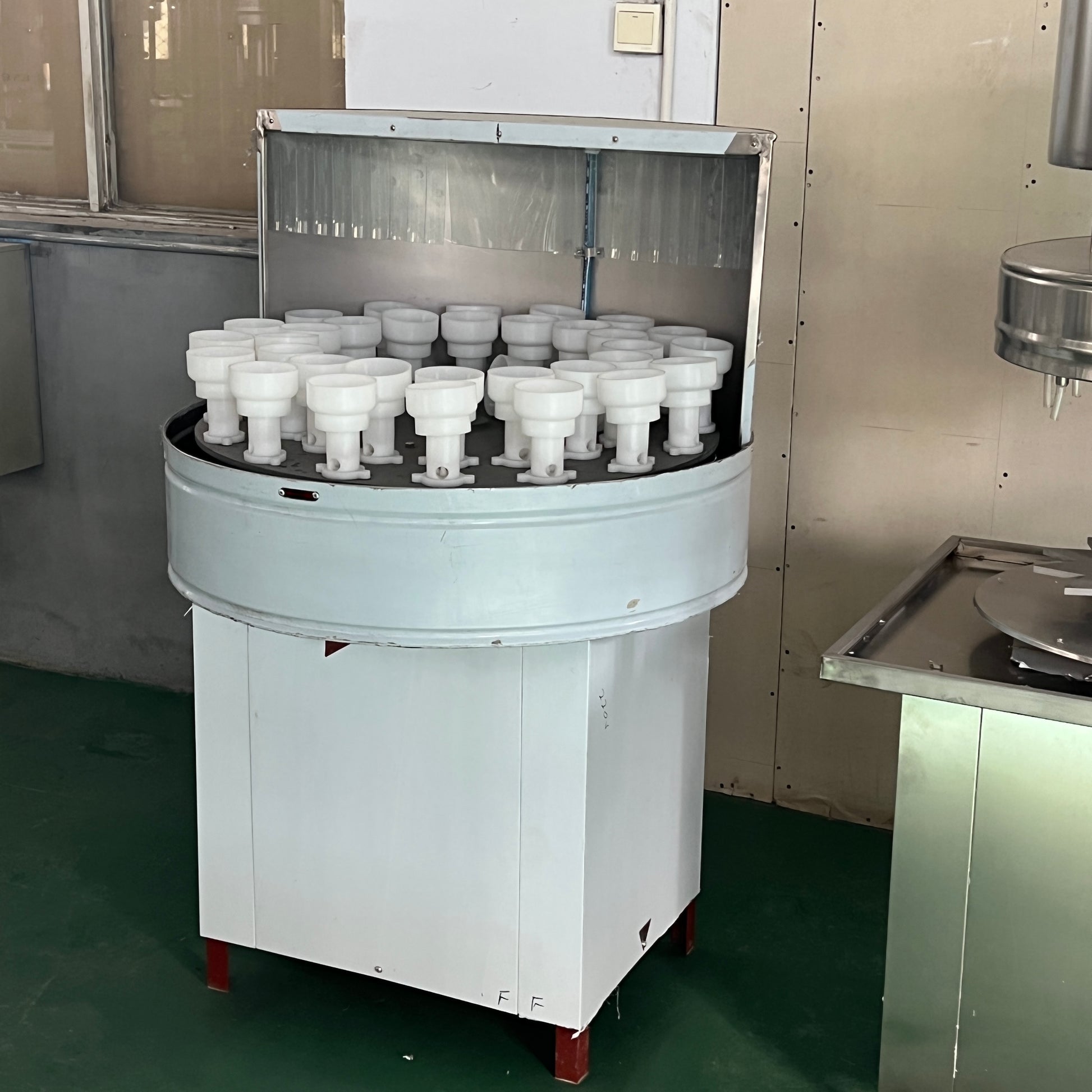

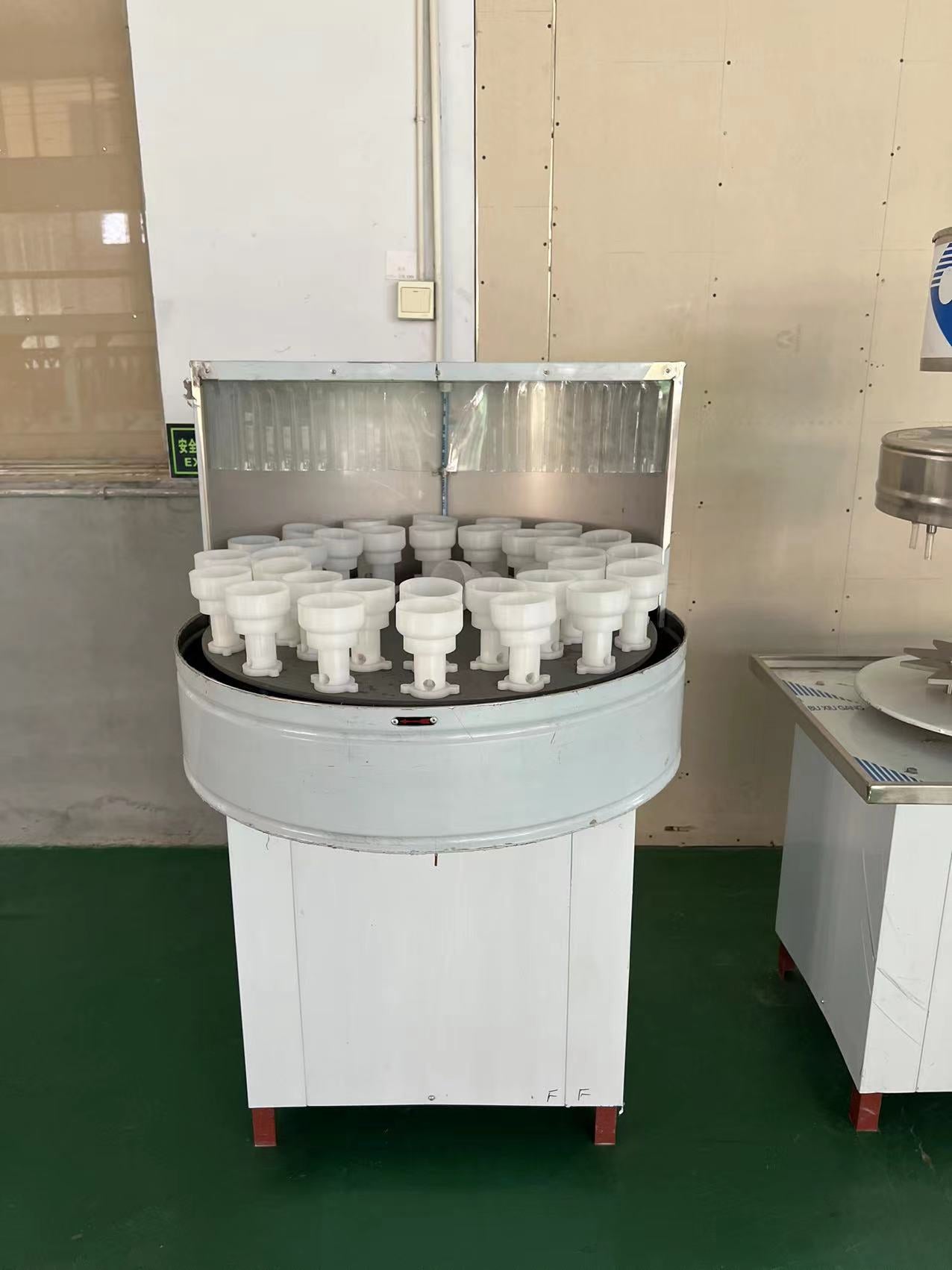

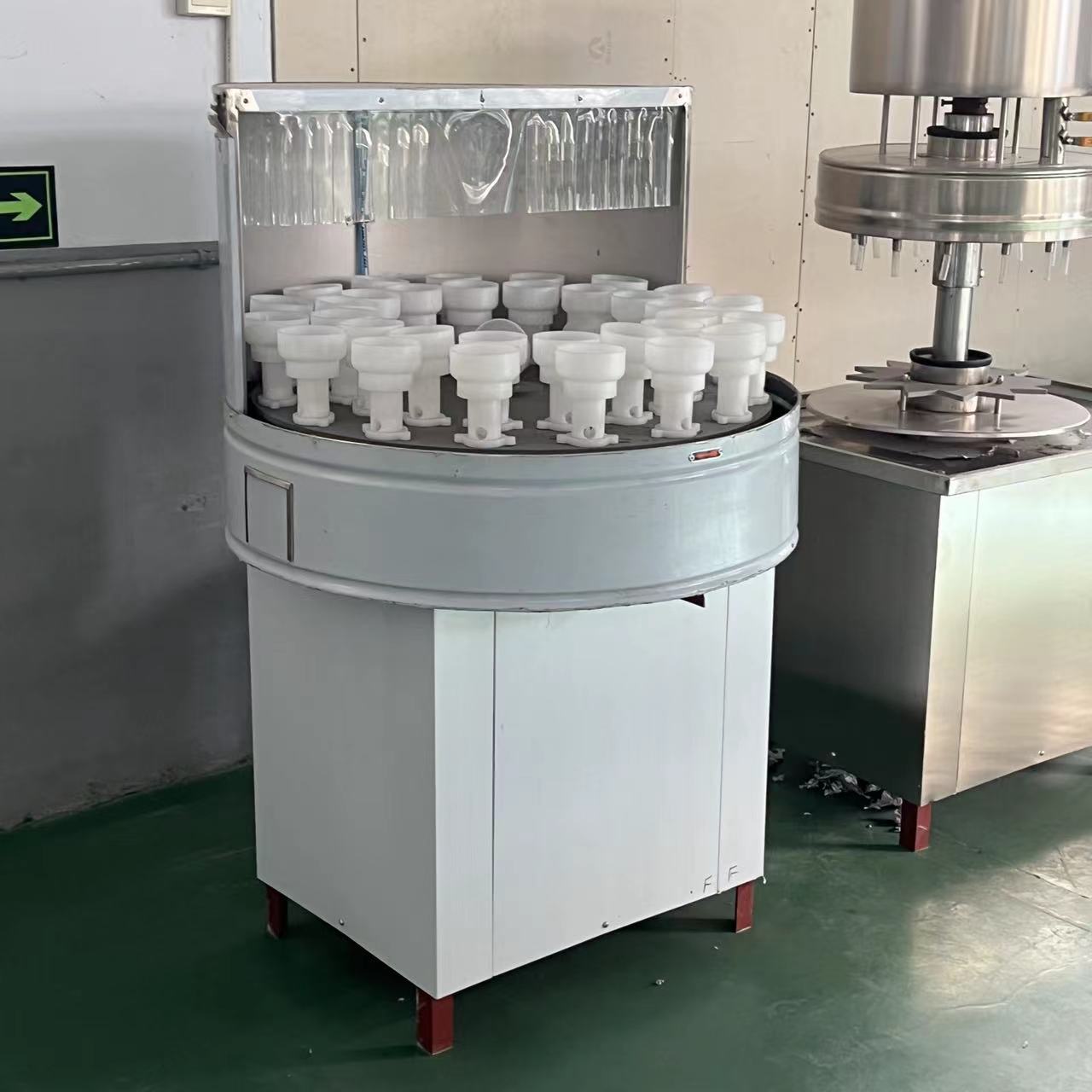

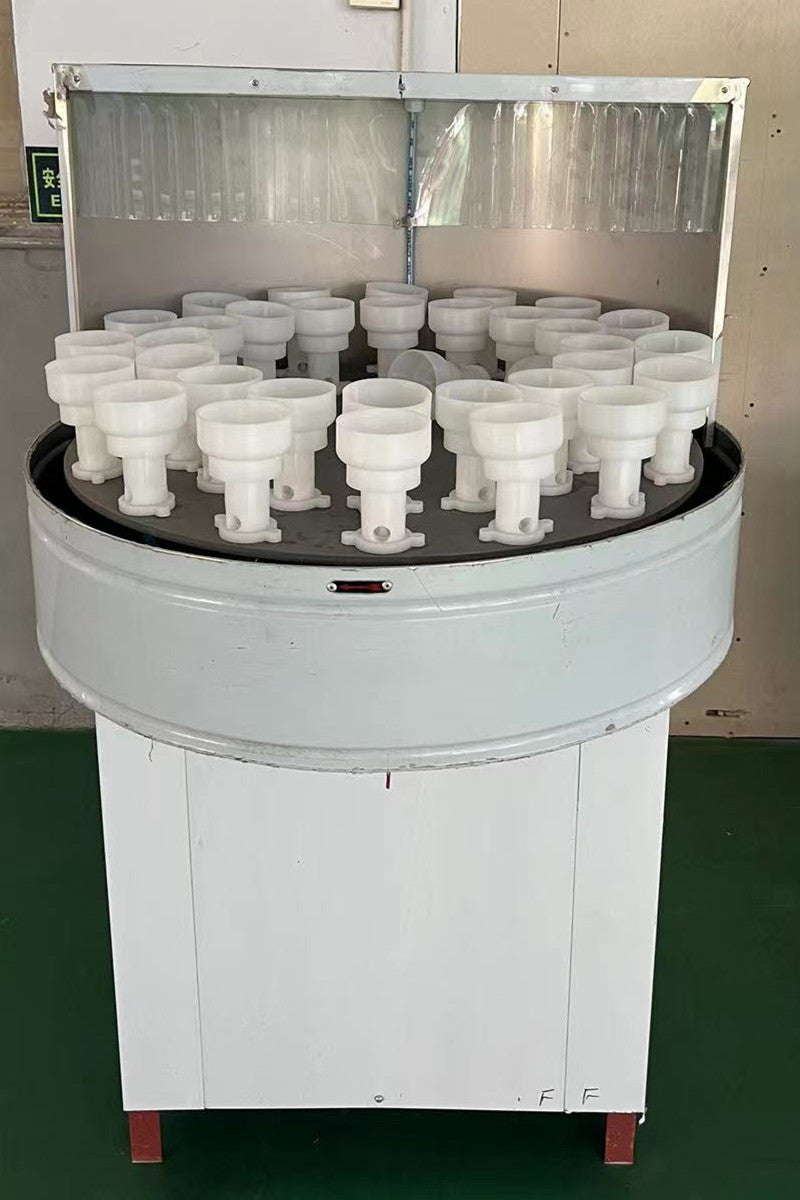

Small Beer Bottle Cleaning Machinery Semi-automatic Electric Bottle Washing Machine

Specification

This machine uses continuous tracking spraying to wash bottles, and the efficiency

High, the flushing effect is good. Suitable for various materials (glass,

plastic, pvc, etc.), various bottle shapes, range

Wide, easy to operate and maintain.

Material: 304 stainless steel

32 head bottle washer

Applicable bottle height: 80-400 (mm)

Applicable bottle diameter: 12-100 (mm)

Water consumption: 1 (ton/hour)

Type: bottle rinser

Power: 0.37 (Kw)

Pressure: 0.1-0.25 (Mpa)

Degree of automation: semi-automatic

Applicable industries: Gifts, handicrafts, food, chemicals, catering, hardware, machinery

Feature:

1. The outer wall of the bottle is sprayed, the inner wall is rinsed, and the bottle is rinsed hygienically clean.

2. Tap water pressure or booster pump pressure can be used wash

3. Simple structure and convenient maintenance.

4. Save labor, high production efficiency, suitable for a wide range of bottle types
(Change different bottle holders can be used for wide-mouth bottles, narrow-mouth bottles).

The principle of flushing:

1. The outer wall of the bottle is sprayed with a nozzle, and the spray pressure can be adjusted by spray switch. (The pressure of the external water source of this machine
It needs to be higher than 0.1Mpa. If it is lower than this pressure, you need to bring your own pressure pump. )

2. When the inner wall is flushed, the lower valve body is statically fixed on the bracket, and the upper valve body is integrated with the upper plate of the rinse bottle through the nozzle and rotates at the same time. When the water inlet hole of the lower valve body is connected, the water is pressurized through the nozzle to flush the inside of the bottle.

Friendly reminder: The water inlet of the machine adopts a 6-point (DN20) pipe, and the water outlet is a 2-inch half pipe (DN65)
The pipeline should be prepared by the customer in advance according to the distance between the bottle washer and the water source/drainage pipeline.
