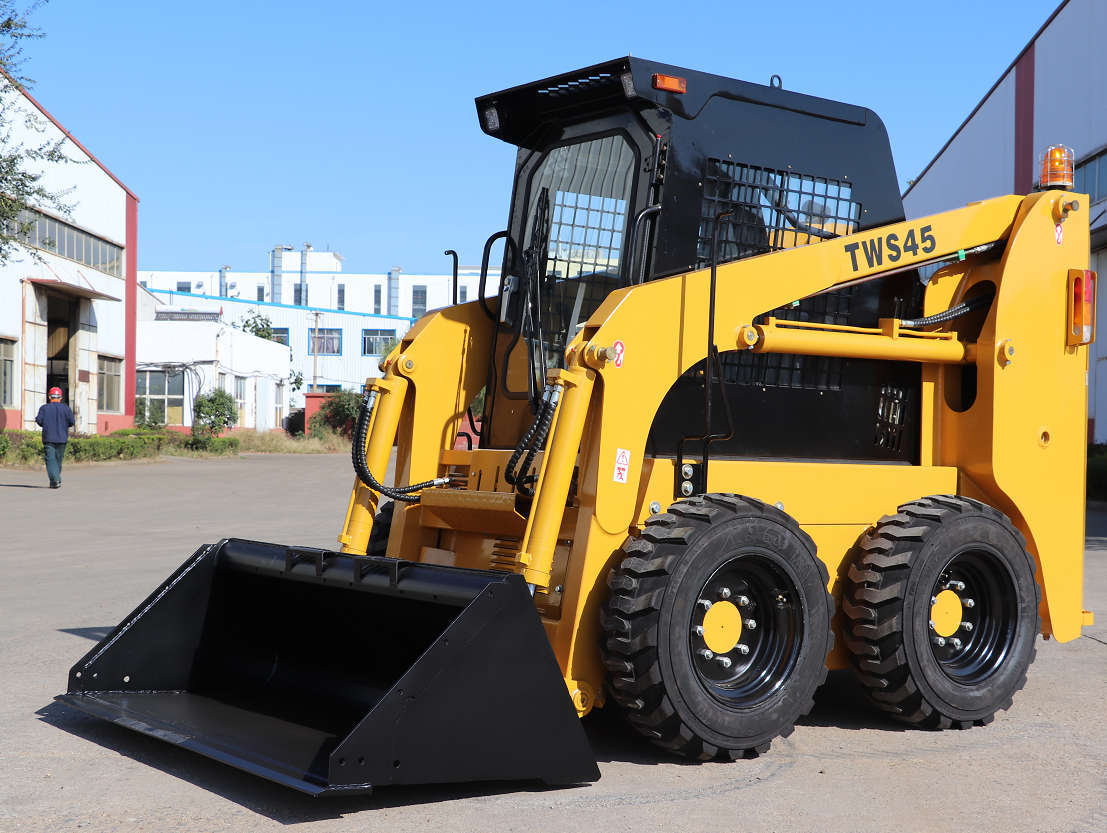

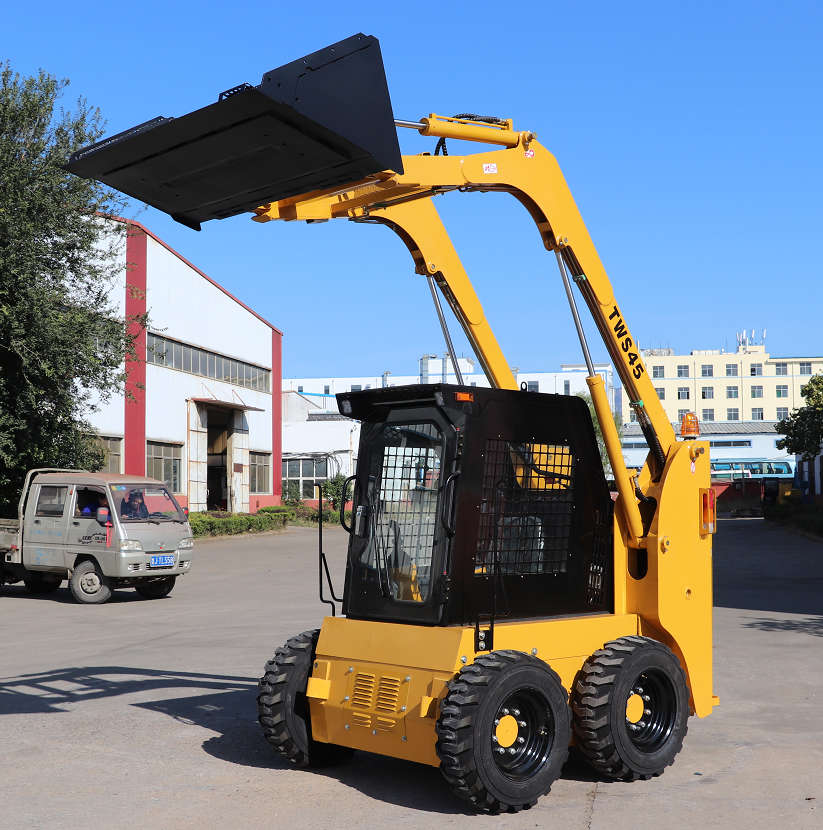

Skid Steer Loader TWS45

Technical Specification

• Rated operating capacity(kg)：700
• Tipping load(kg)：1400
• Bucket capacity(m3 )： 0.4-0.5
• Operating weight(kg)：3000
• Max. travel speed(km/h)：12
• Hydraulic pump flow(L/min)：62.5-80
• Fuel tank capacity(L)：70
• Tires：10/16.5NHS
• Overall dimensions(mm)：3350×1720×2050

Dimensions

• Height at maximum extension(mm)： 3980
• Height to bucket hinge pin(mm)： 3080
• Width with bucket(mm): 1730
• Track width(mm): 1450
• Wheelbase(mm): 991
• Ground clearance(mm): 180
• Dump angle: 30°
• Dumping height(mm): 2380
• Rollback at ground: 26°
• Angle of departure: 20°

Engine

• Maker/Model: XINCHAI C490BPG / Yanmar
• Net power: 36.8KW/2650rpm
• Type: 4 Cylinder in-line, Water cooled, 4 stroke,
• Diesel engine
• Displacement(L): 2.7
