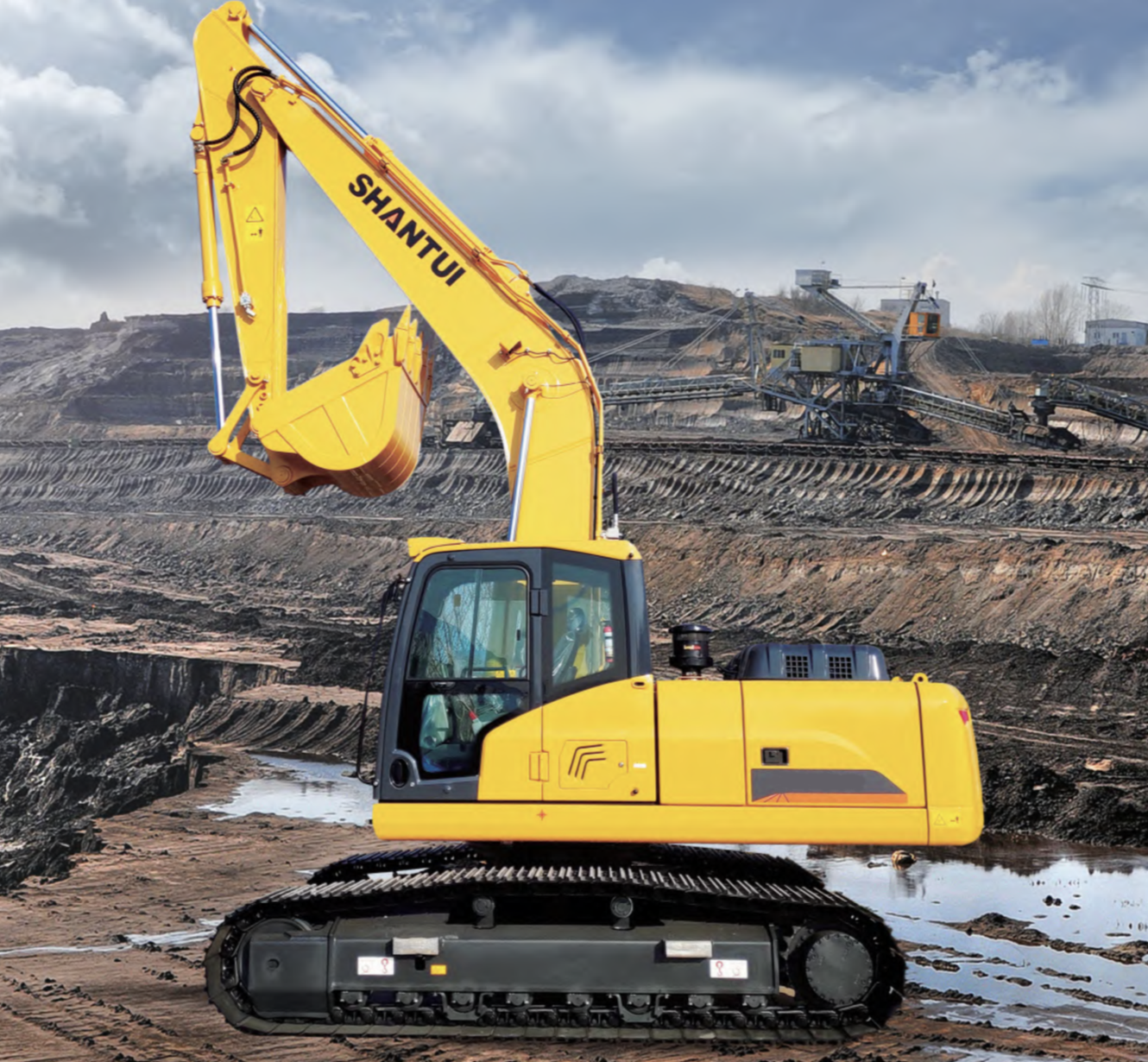

SHANTUI YDSE2202022 Excavator

Engine: Cummins B5.9-C

Rated power: 112kW/1950 rpm

Operating weight: 20.5t

Travel motor: Variable axial piston

Travel brakes: Lubricated double -disc

Parking brake: Pressure release

Travel speed: 3.9-5.6km/h

Drawbar pulling force: 201kN

Gradeability: 35°

Ground clearance: 468mm

Bucket: 1.05m3

Number of bucket teeth: 5

Bucket width: 1189mm

Arm length: 2919mm

Max. digging reach/Max. digging at ground level: 9.838m/9.64m

Max. digging depth/ height: 6.59m/9.27m

Max. dumping height: 6.49m

Min. swing radius: 3.585m

Overall size: 9549*2800*3073mmV
