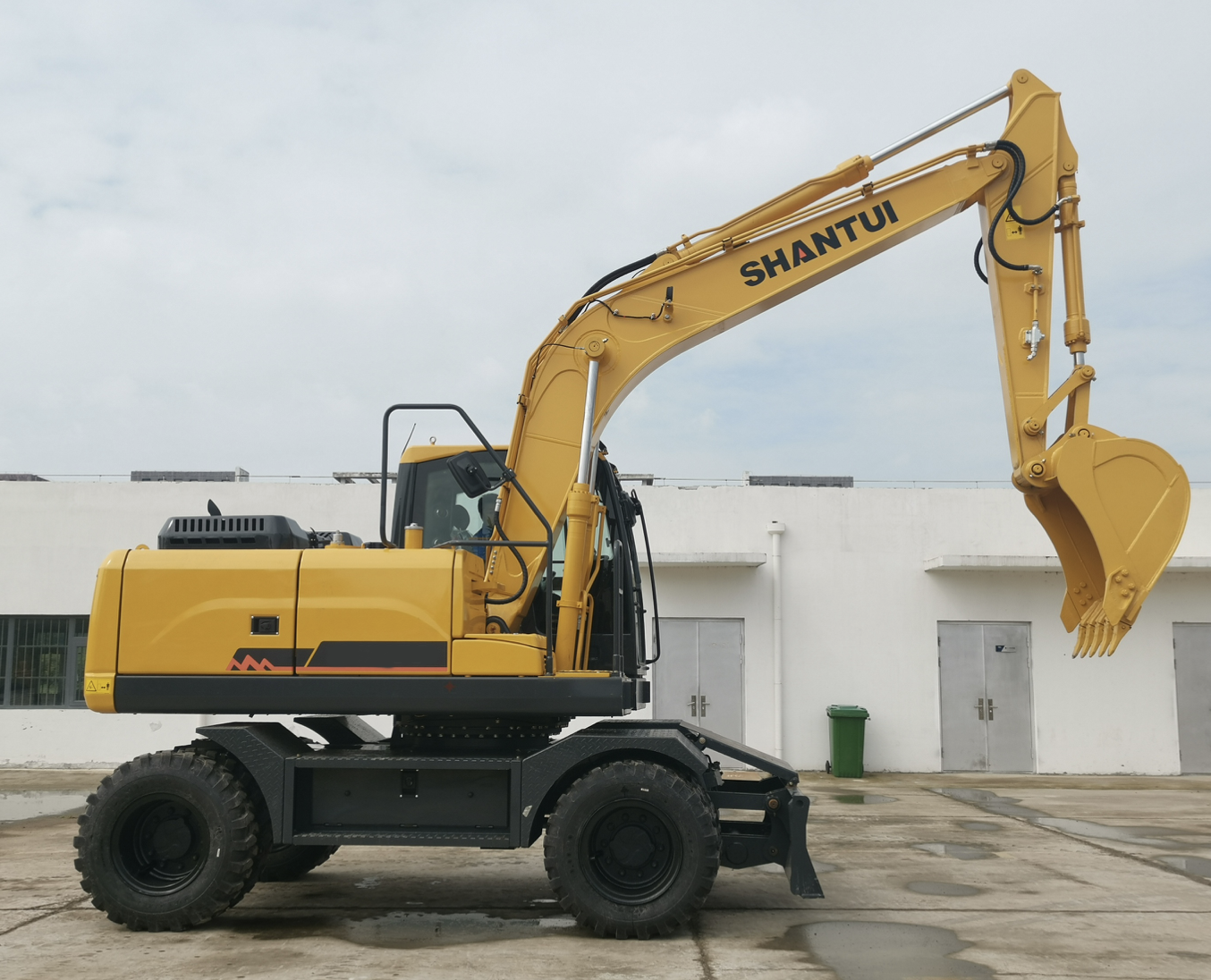

SHANTUI Wheel Excavator YDSW150-9W2022

Engine: WEICHAIWP4.6N

Rated power: 118kw/2000 rpm

Working weight: 13500kg

Bucket capacity: 0.58m3

Max. digging height: 8755mm

Max. digging depth: 48715mm

Wheelbase: 2800mm

Minimum ground clearance：1285mm

Blade width: 2495mm

Blade height: 565mm

Maximum unloading height (mm): 6340

Maximum vertical excavation depth (mm): 3815

Maximum excavation radius (mm): 7950

Minimum turning radius of working device (mm): 2365

Gearbox: ZF

Front and rear axles: DANA

Stick Digging Force (kN): 72

Bucket Digging Force (kN): 102.5

Walking speed (km/h): 38

Climbing ability: 70% (35o)

Fuel Tank Capacity (L): 270

Cooling system capacity (L): 20

Engine oil quantity (L): 12

Hydraulic tank capacity (L): 130

Overall dimension: 7960*2528*3385mm

Joystick operation, cabin with A/C
