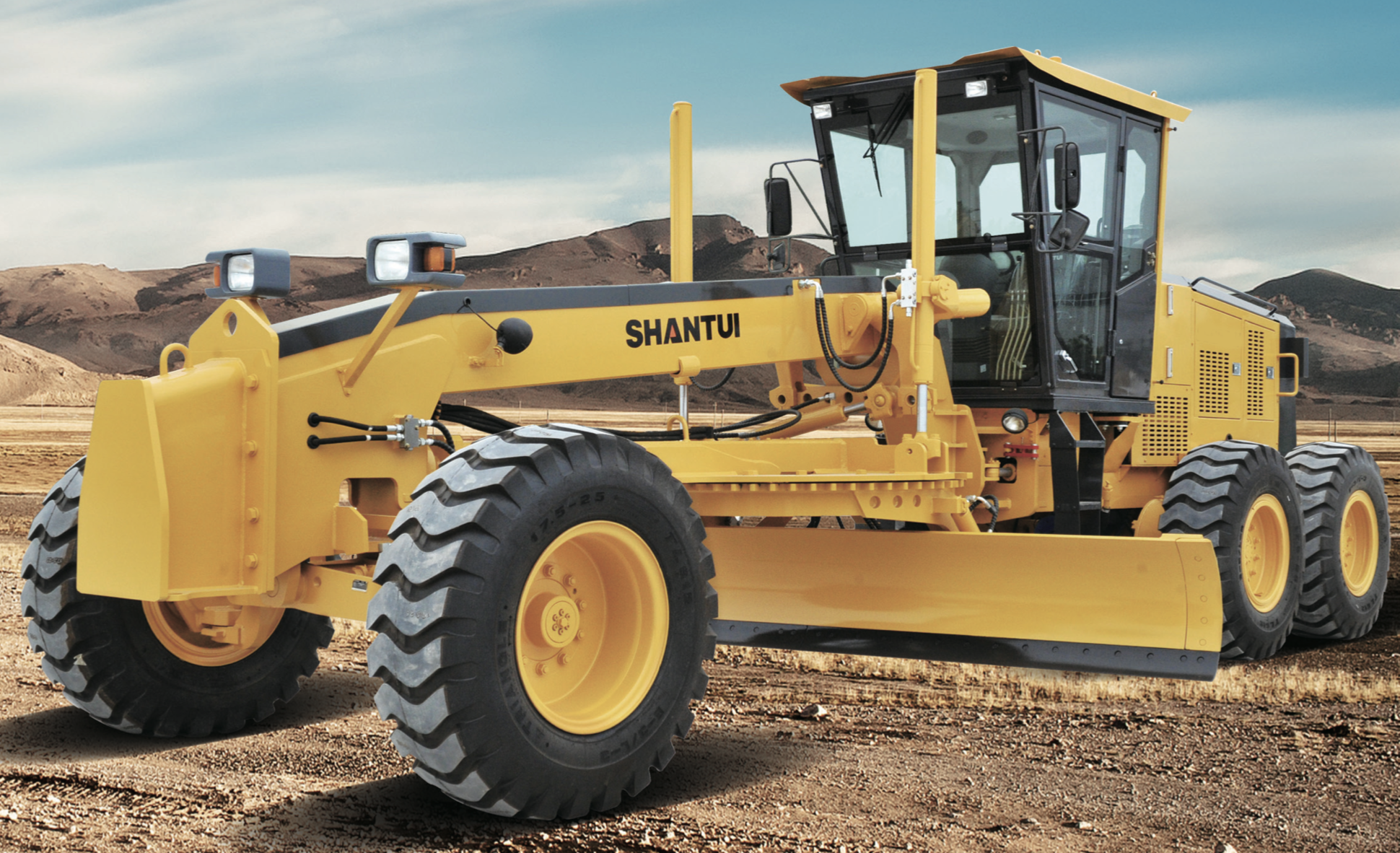

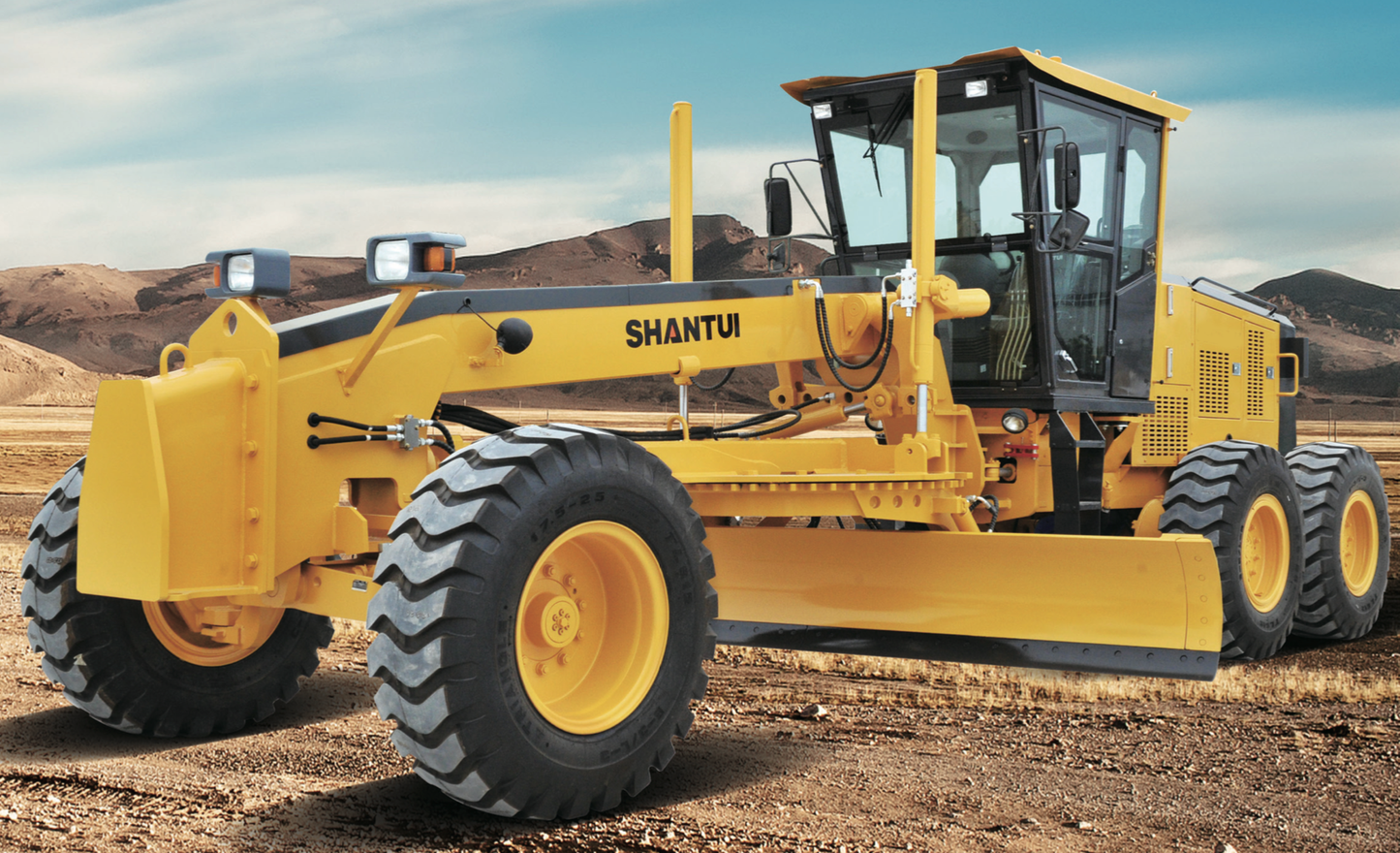

SHANTUI MOTOR GRADER YDSG18-32022

Engine Model: Cummins 6BTAA5.9-C180

Rated Power/speed: 132kw/2200

Dimension: 11500x2625x3470mm

Operating weight: 16530kg

Max. Lifting above groud: 450mm

Max. depth of cutting: 500mm

Max. blade position angle: 90°

Blade cutting angle: 28-70°

Circle reversing rotation: 360°

Moldboard width x height: 3965 x 610mm

Blade: 3660mm

With front dozer and rear ripper
