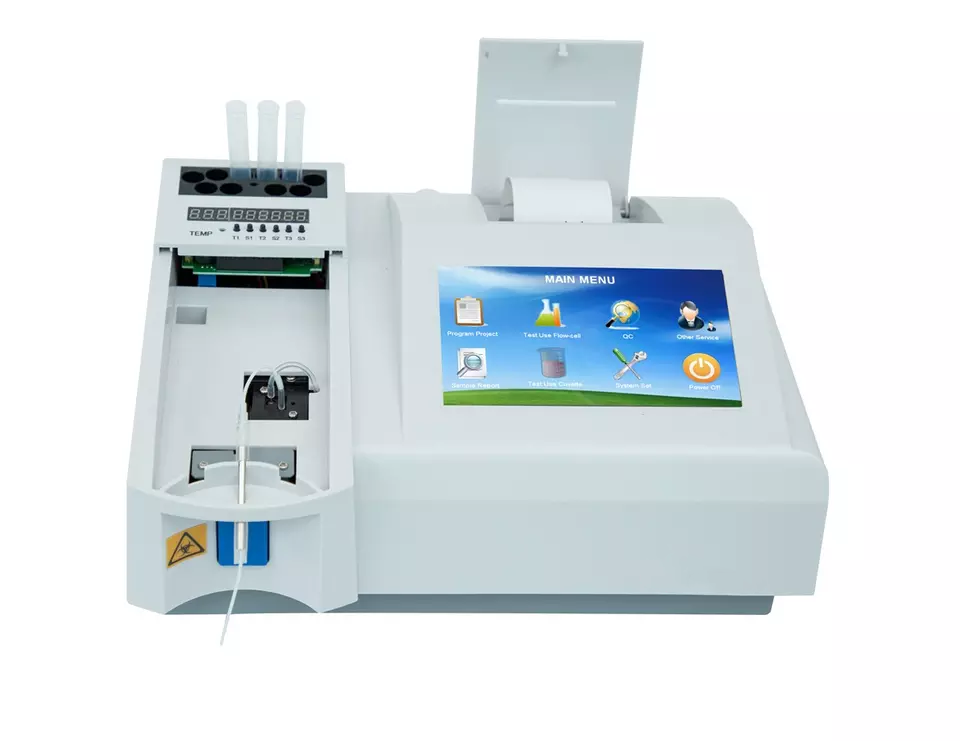

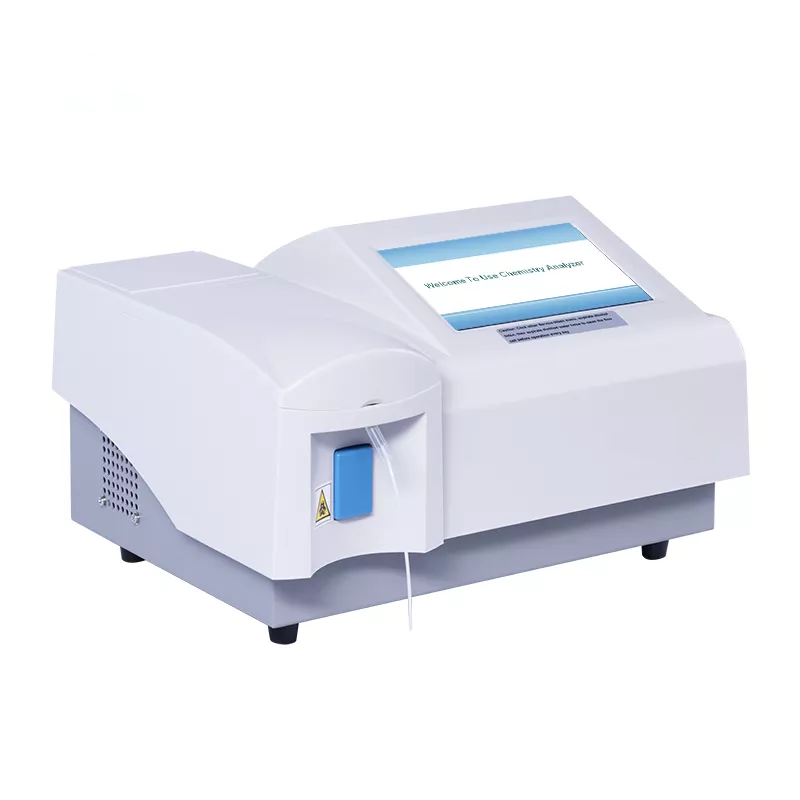

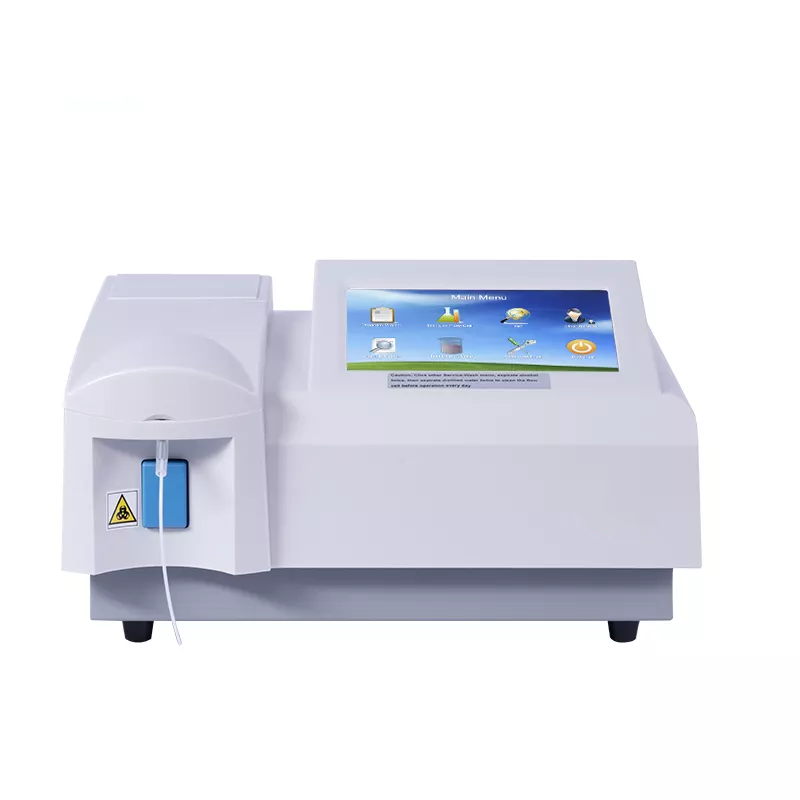

Semi-Auto Chemistry Analyzer Reagents Biochemical Analyzer

Semi Auto Chemistry Analyzer Features:

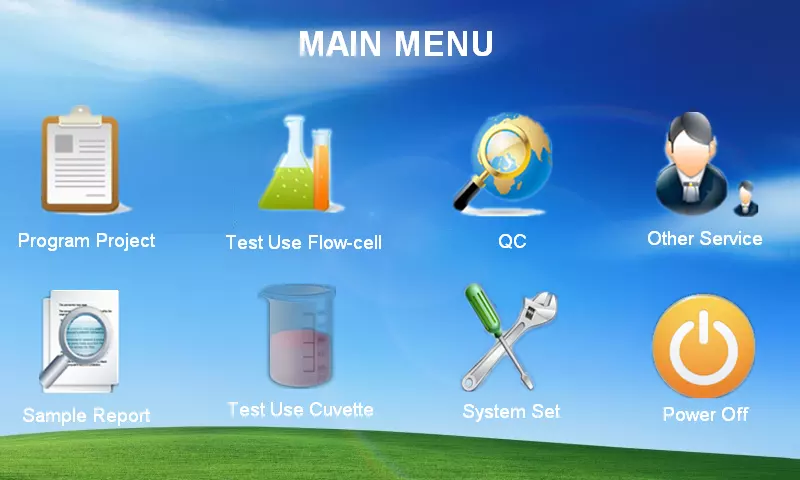

7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength, 80 test item pre-programmed
Memory for 10,000 sample results and 150 test items
Light source hibernate function making lamp life longer
RS232 interface, PC connecting

Usual test list
Liver function:
ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function :
BUN CRE UA URE CO2-CP γ-GT
Lipids:
T-CHO TG HDL-C LDL-C
Cardiac function:
CK CK-MB LDH
Immune proteins:
IGA IGG IGM C3
Others:
GLU HGB AMS

Test mode：Kinetic, End point, Two point, Absorbance

Wavelength：7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position

Wavelength precision：±2 nm, width ≤ 10nm

Absorbance range: 0~4.500 Abs

Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs

Carryover: ＜1%

Repeatability: ＜1%

Incubator: 37℃、30℃、25℃、Precision : ±0.1℃

Sample volume: 0~3000 uL (≥500uL recommend)

Data Storage: ≥10000

Flow cell: 32 uL quartz glass, 10 mm

Lamp: Philips 6V 10W Halogen Lamp with long life

Screen: 7 inch color LCD

CPU: ARM series high speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%

Power supply: 100~240VAC，50-60Hz，100VA

Dimension: 340(L)*270(W)*160(H)

Weight: 5Kg
