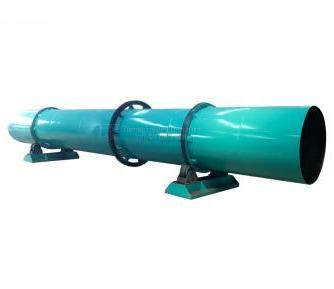

Rotary Dryer Machine

Power (Kw):22kw

1,Function: Reduce the moisture of NPK fertilizer from 40% to 20%, also with second granulating function.
Inlet tem. : 150-250℃,Outlet tem.:60-80℃ 2,Capacity:5-20 t/h
3,Structure Characteristics:With 1 set of seal head; 1 set of seal tail; 1 set of drying body with gear rolling and rolls;2 set of roll bearing base;1 set of driving base;1 pic of hot air pipe;and 2 pics of straight air pipe;and 1 pics of elbow.
4,Diameter:2.0meters, Length:20meters
5,Raw Material:Q235 carbon steel, 16mm thickness. 6,Size:20x2.47x2.47m, Weight:20800kgs 7,Remarks:The rotary dryer is with the Temperature Couples and Temperature Display System.
