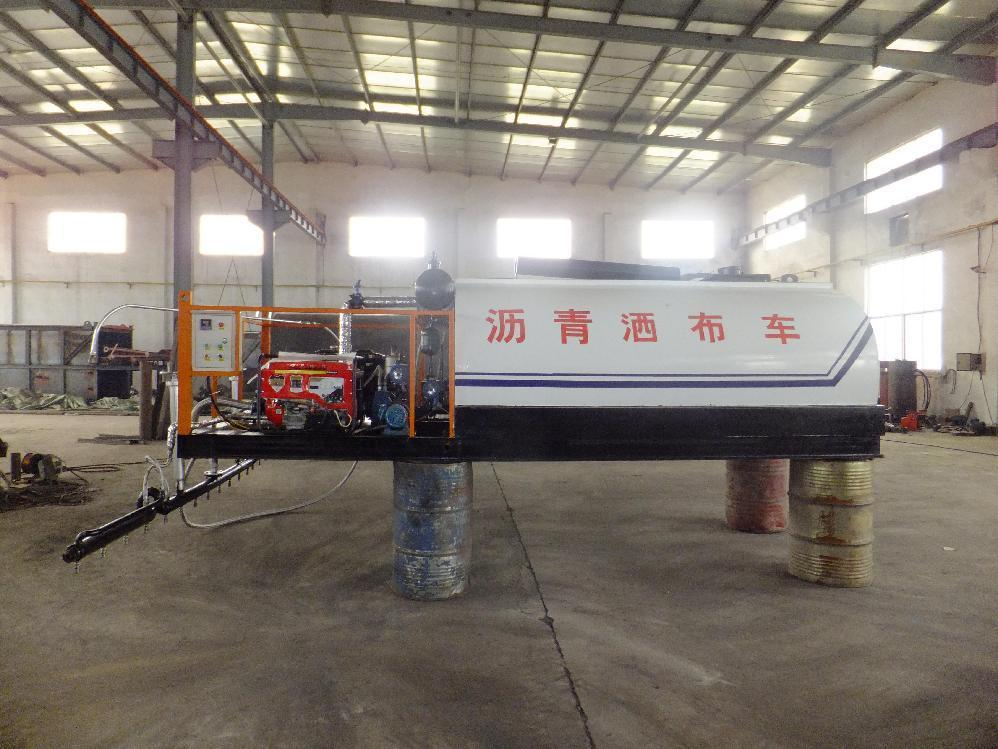

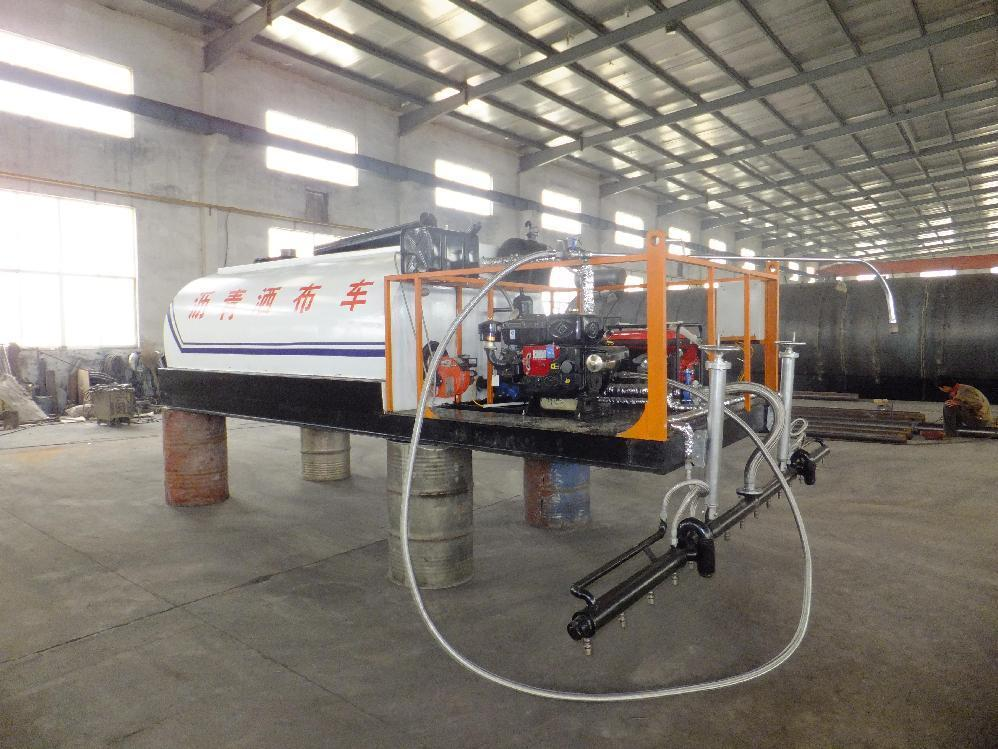

Road Construction Machinery Bitumen Sprayer Machine

Bitumen sprayer configuration list

1. Sprayer length 3.8m * width 1.9m * height 1.85m, cylinder tank, including 5cm insulation layer, tank volume 3 m3(3000 liters)

2. Equipped with Italy RIELLO diesel oil burner, model G20, power < 0.5kw.

3. Equipped with Bashan bs6500 gasoline generator set for power supply to thermal oil circulating pump and burner.

4. Equipped with Changzhou ZS25 diesel engine for driving bitumen pump.

5. Equipped with a flow rate of 5 m3 / h insulated gear bitumen pump.

6. Equipped with 25-25-160 thermal oil circulation pump, power 0.75 kw.

7. Bitumen nozzle 18 pcs, spraying width 4.5m.

8. Equipped with 2m long hand-held spray bar, with 6m long metal hose.
