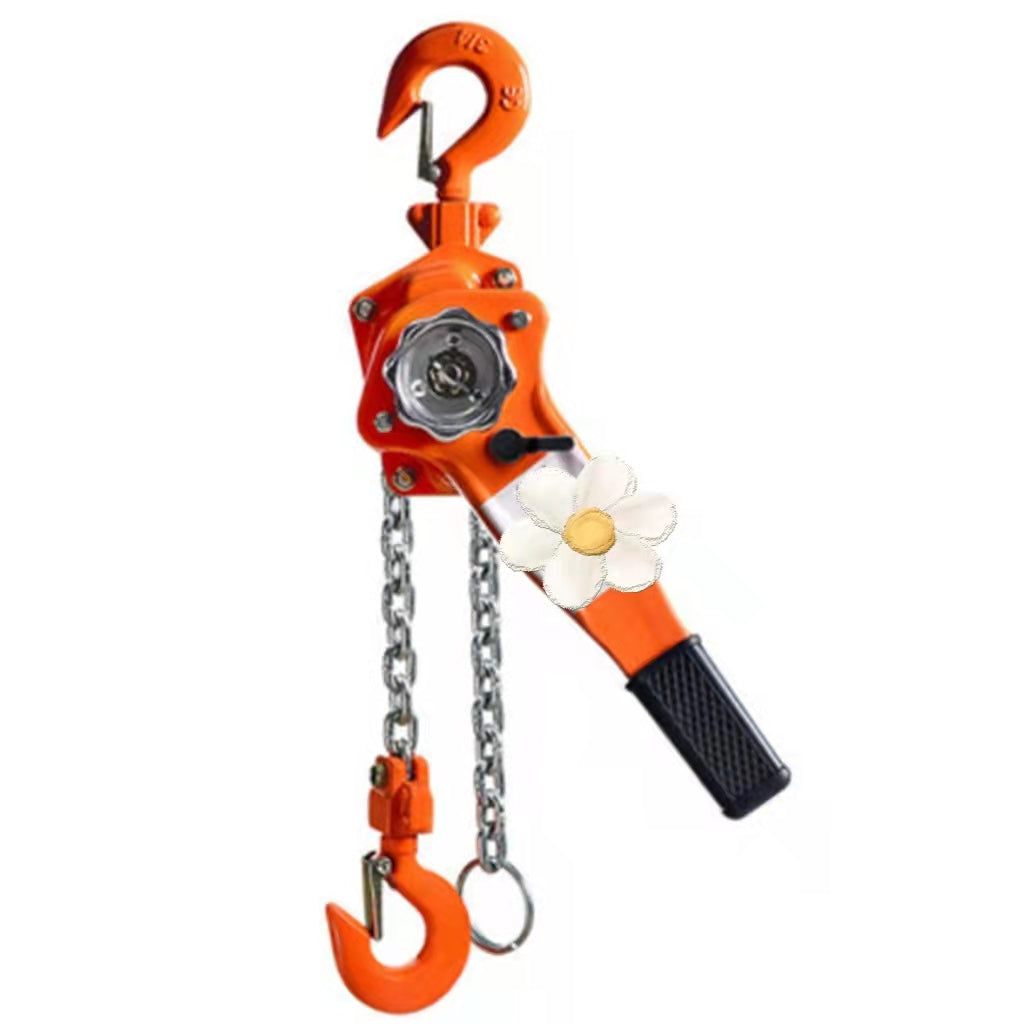

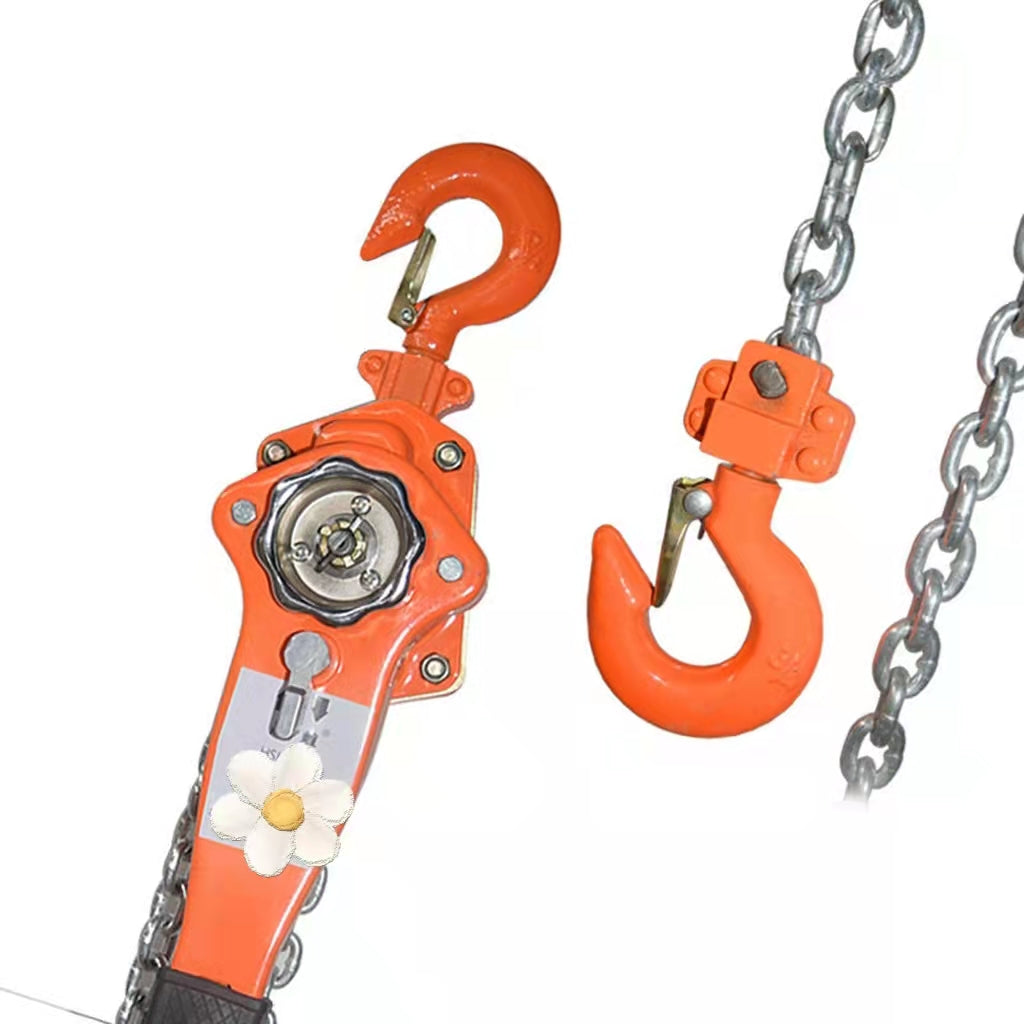

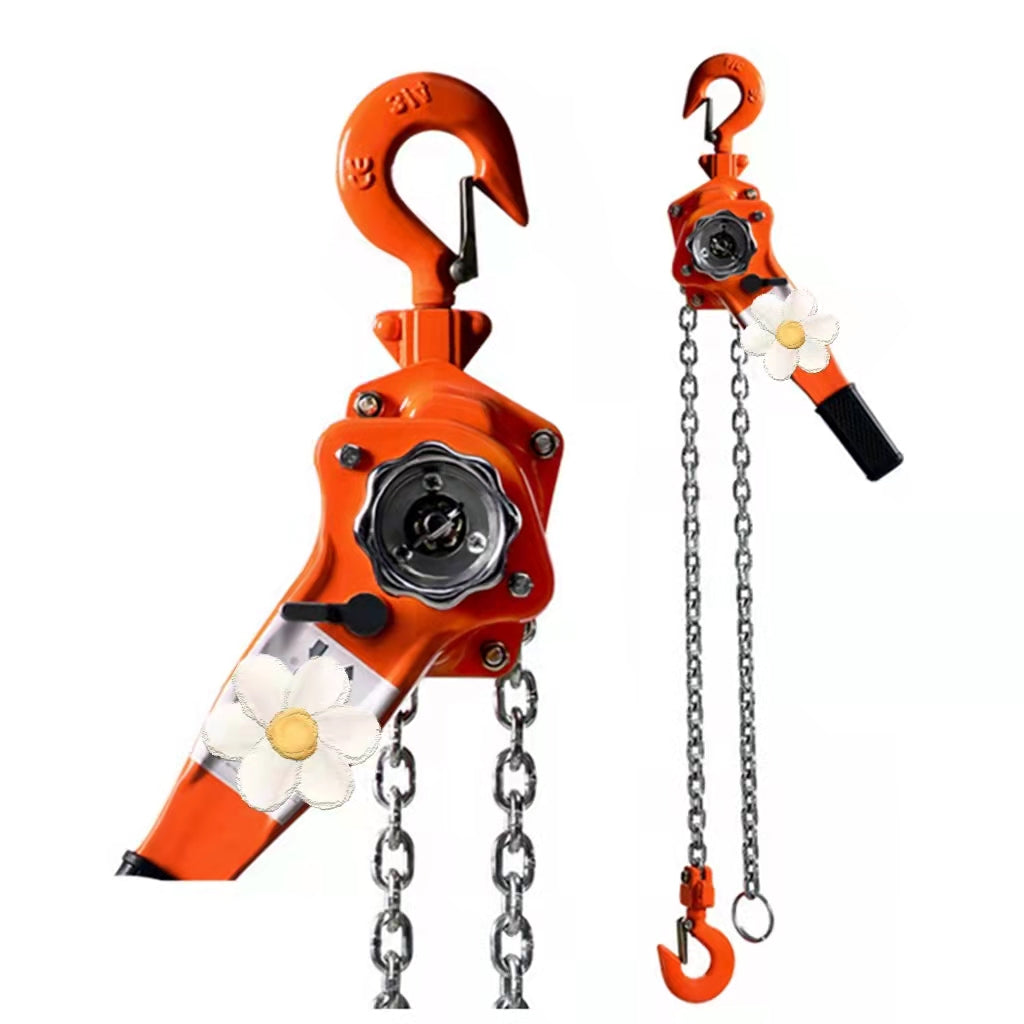

Pull Machine 1.5 Ton Hand Ratchet Lever Hoist with standard Chain Length

S/N

Detail

Data

1.

Description

Pulling machine, hand operated ratchet lever hoist suitable for tensioning ACSR conductors and hoisting weights

2.

Type of pulling machine

Manual, sling operated

3.

Type of ratchet

Hand operated

4.

Type of handle grip

Rubber handle grip

5.

Lifting media

Sling

6.

Minimum lifting height

1.5M

7.

Nominal rating

1.5Ton

8.

Traction capacity-Safe Working Load (SWL)

1500KG

9.

Lifting capacity-Safe Working Load (SWL)

1500KG

Environmental Conditions

10.

Ambient temperature range

-1 to+45^oC

11.

Relative humidity

85%

12.

Altitude above sea level

1400M

Other Requirements

13.

Previous type test results/certificate to be provided with the bid

Required

14.

Drawing showing dimensions to be provided with bid

Required

15.

Quality assurance manuals/certificate to be provided with the bid

Required

16.

Routine test results to be provided on delivery

Required

17.

Applicable standard (s)

ISO 2374
