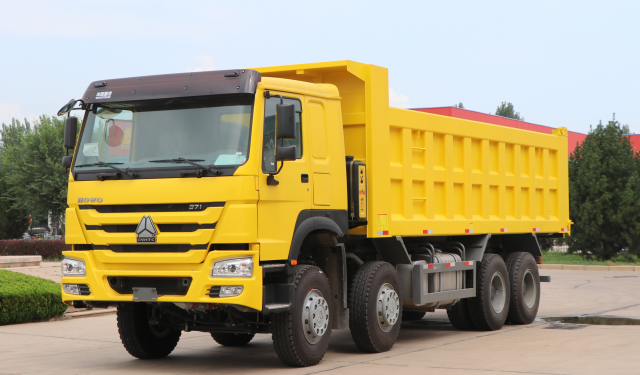

HOWO 8*4 DUMP TRUCK NEW

Name: HOWO 8*4 DUMP TRUCK NEW
Brand: Infinityconakry
Price: 55120.0 USD
Availability: InStock

Specifications

Model：ZZ3317N3867B1

Cabin: HW76 (one sleeper), new front face, with A/C
Engine: WD615.47（371hp, EUROII）
Transmission: HW19710 (10-Forward, 2-Reverse)
Drive axle: HC16*2
Front axle: VGD95*2， drum
Steering: BOSCH, LHD
Tires: 12.00R20*13， 18PR
Fuel tank: 300L
Box Dimensions: 7500*2300*1800mm， floor 10mm, walls 8mm，HYVA hydraulic front lifting
Others：Without ABS，with high steel bumper，inter cooler protector，super reinforced wheel，oil bath air filter，one more fuel filter，towing hook, fire extinguisher，reversing warning

SPECIFICATION

Dimension(L×W ×H)（unloaded）（mm）		10850×2580×3450
Cargo body size (L×W×H)(mm)		750023001800, front lifting Sheet thickness: floor 10, walls 8
Approaching angle/Departure angle（°）		19/17
Overhang(front/rear) (mm)		1500/2295
Wheel base (mm)		1800+3800+1350
Max speed（km/h）		75
Front Axle Weight（kg）		9500*2
Rear Axle Weight（kg）		16000*2
Actual loading（kg）		30000-50000
Engine	Model	WD615.47，SINOTRUK brand. four strokes, 6 cylinders in line with water cooling, 4-stroke，turbocharged and inter-cooling，direct injection
	Fuel type	Diesel
	Displacement (L) Power(kw)	9.726 273
	Emission	EURO 2
Fuel tanker capacity（L）		300
Transmission	Model	HW19710，10 forward&2 reverse10
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	BOSCH（LHD）hydraulic steering with power assistance
Front axle	Steering with double T-cross section beam
Rear axle	Cast axle housing, central double reduction with differential locks between axles and wheels
Tyre	12.00R20， 13pcs
Color	Common color(white, yellow, red, blue, green, black)
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter 启动机	7.5Kw/24V
