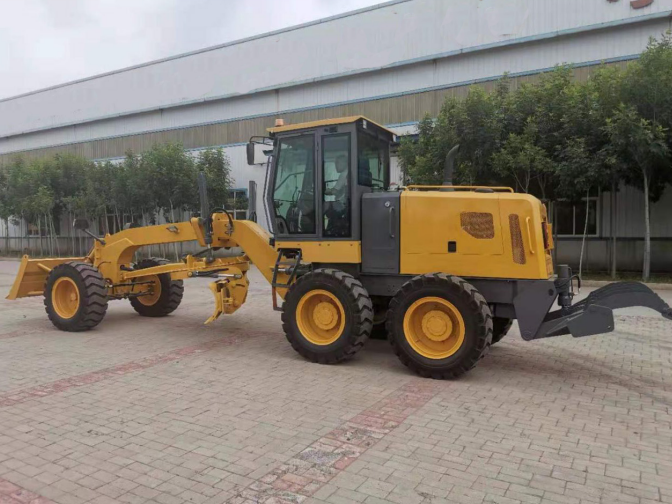

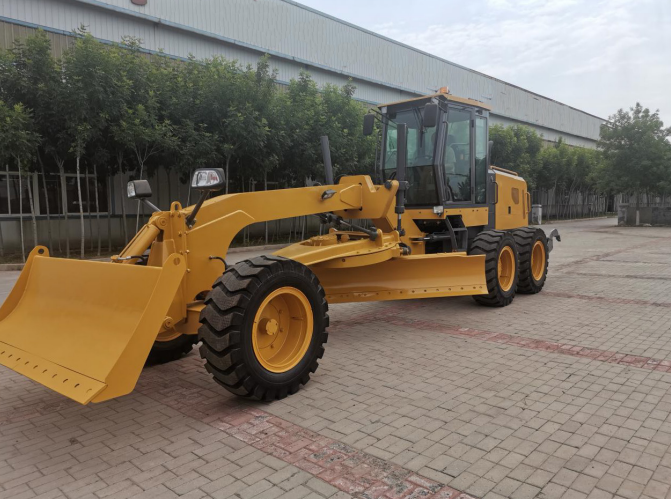

Motor Grader 92KW Road Machinery Paver Graders Hydraulic Motor Grader

Specification

一、Overall dimension

• L×W×H: 7900×2100×3050mm

• Mini ground clearance of front axle: 450mm

• Ground clearance of rear axle: 410mm

• Wheel tread: 1590mm

• Wheel base: 6120mm

• Length of blade: 3350mm

• Wheelbase of rear axles: 1410mm

二、Engine

• Rated power/speed：125hp/2400

• Certified capacity：4.8L

• Minimum fuel consumption rate：≤225g/(kw.h)

三、Overall parameters

• Overall weight：7450kg

• Max.swinging angle of front axle：±16°

• Ma.steering angle of front wheel：±45°

• Steering angle of articulated frame：±23°

• Cutter diameter：1250mm

• Cutter size(L×H×T)：3350×500×18mm

• Swing angle of balde：360°

• Ground clearance of blade：450mm

• Cutting depth of blade：260mm

• lncination angle of blade：Forward 47°7backward 5°

• Sliding range of blade：Left 550/right 550mm

四、Transmission System

• Max.speed (Forward/reverse)：40km/h  30km/h

• Gearbox type：Fixed shaft power stage

• Torque converter：Single-stage single-phase three-element

• Gears：Forward 4 reverse 4

• Tire type：16/70-24

五、Hydraulic system

• Type：Open-type system

• System pressure：16L

六、Fill capacity

• Fuel：160L

• Hyfraulic oil：110L
