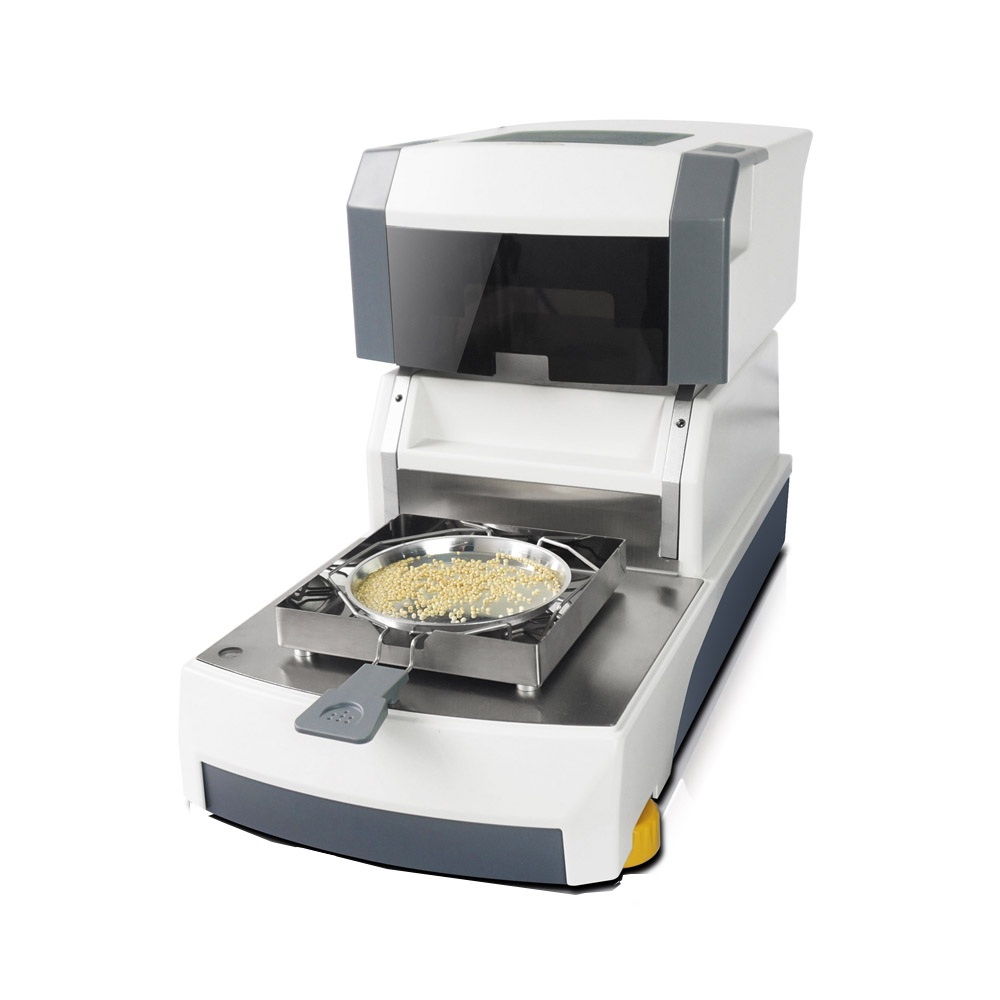

Moisture Analyzer

Model

BHM-100

Range(g)

110g

Readability(g)

 0.001g

Operating Ternp

5℃-35℃

Pan Size

  Ø100mm

Heat Source

 Halogen Lamp

Temp Sensor

  PT 100

Temp Range

  40℃-230℃

Temp Step

 1℃

Moisture Range

  0.00%-100.00%

Moisture Readability

  0.01%

Dry Residual Range

   100.00%-0.00%

Dry Residual Readability

  0.01%

ATRO

  100%-999%

ATRO

  0%-999%

Temp Setting

  40℃-230℃ By 1℃ Step

Time Setting

  1-99min by 10 s

Number Of Storage

 20

Number Of History

  20

Heater

 220∨±15% 50HZ/110V±15% 60HZ  400W

Balance

  Input:220V 50HZ/110V 60HZ Output:9V

Machine

  Input:220V50HZ/110V60HZOutput24V(Dual-drive)

Host Dimension

 215X195X415mm

lndicator Dimension

 200X75X135mm

Operation Height

 275mm

The Chamber Height

 35mm

Display

 7 inch touch panel

Interface

 RS232/RJ45/USB...

Communication Mode

 Cable

Rechargeable Battery

 No

Calibration

 Extemal Calibration

Function expansion

 Customized

Packing Size

 590x350x460mm
