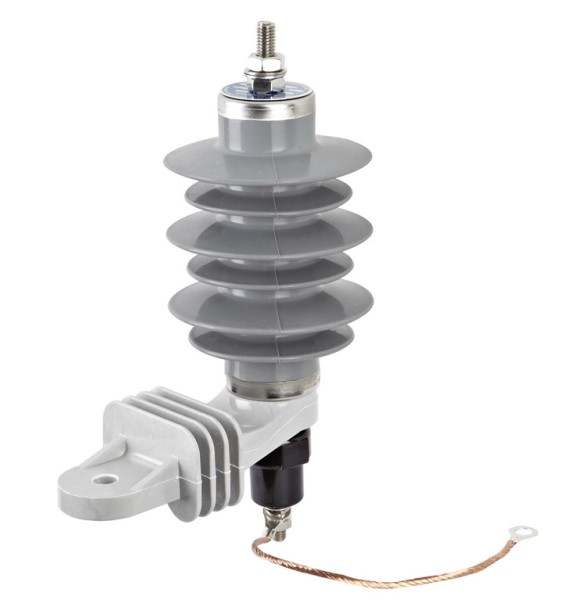

Lighting Arrestors 11kV
Specifications
1. Rated voltage:10kV
2. Rated discharge current:10kA
3. Continuous operating voltage(MCOV)7.3kV
4. Line discharge Class:1
5. Residual voltage at 10kA 40kV
6. Power frequency withstand volatge of housing(1minute):28kV
7. lmpulse withstand voltage of housing:95kV
8. 2ms low current short duration:250A
9. 4/10μs Current withstand discharge capacity:100kA
10.Totol creepage distance:360±15mm
2. Rated discharge current:10kA
3. Continuous operating voltage(MCOV)7.3kV
4. Line discharge Class:1
5. Residual voltage at 10kA 40kV
6. Power frequency withstand volatge of housing(1minute):28kV
7. lmpulse withstand voltage of housing:95kV
8. 2ms low current short duration:250A
9. 4/10μs Current withstand discharge capacity:100kA
10.Totol creepage distance:360±15mm
