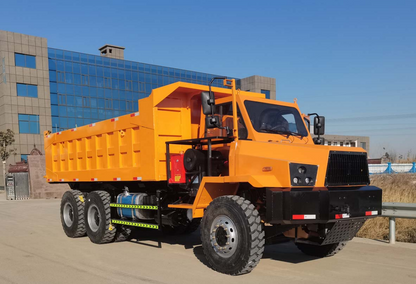

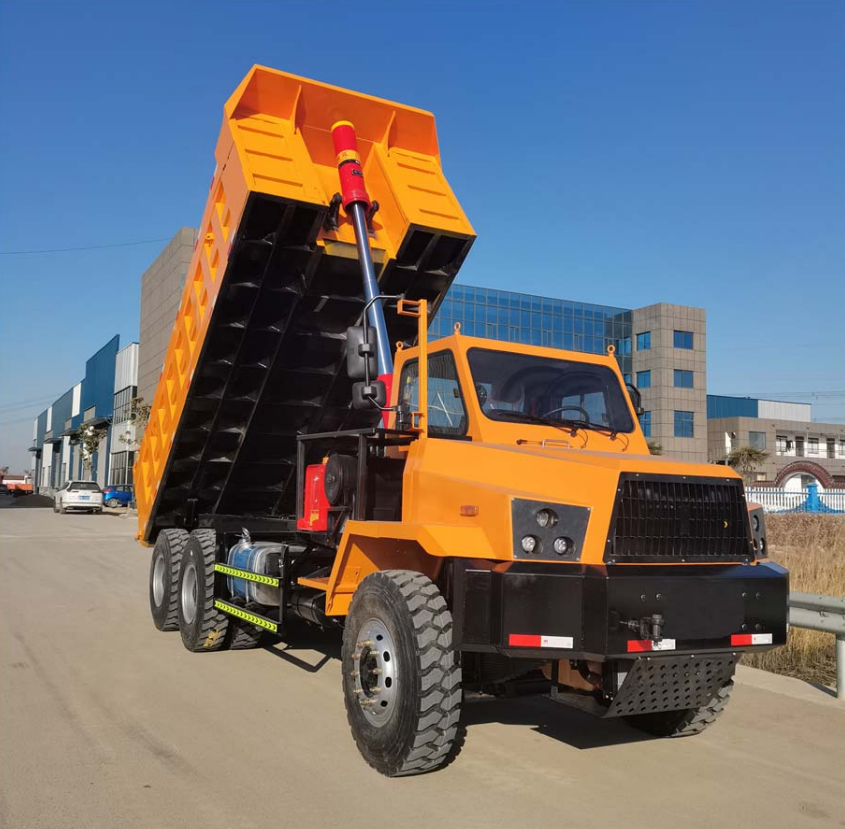

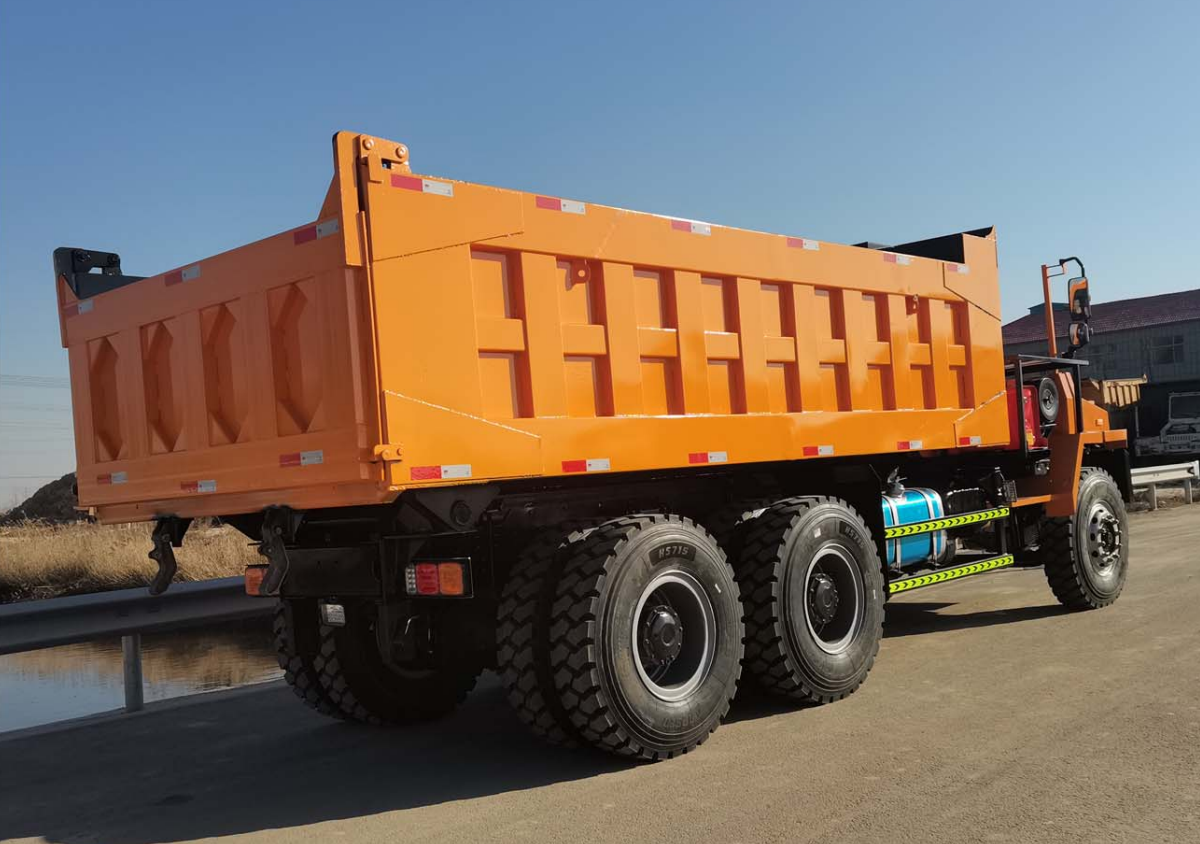

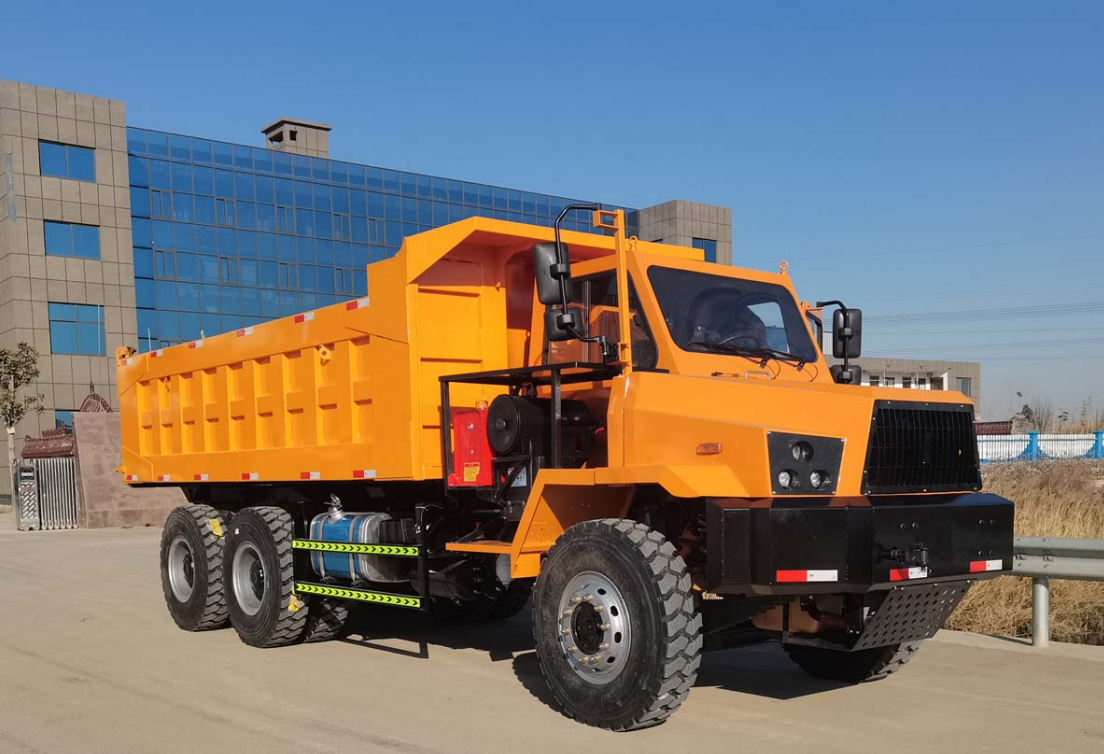

Large Capacity Coal/ Gold Mine Tipper Dumper Truck Mining Dump Diesel Engine Transport Vehicle

Specification

• Rated Capacity (Ton): 35

• Rated power(HP): 375

• Engine model: Yuchai 6-375

• Fuel type: Diesel

• Type of drive: 6*4 WD

• Gearbox: FAST 10JSD180

• Rear axle model: Hande rear double axle

• Front axle model: Hande axle

• Dump hydraulic cylinder: Front Single hydraulic cylinder

• Braking form: Air brake

• Tire: 1200-20,Front 2 tires+Rear8 tires

• Wheelbase: 3950

• Exhaust gas treatment: Water filter purifier

• Steering system: Hydraulic power

• Frame beam: Riveted truck chassis

• Ground clearance (mm): 325

Package & Size

• Cargo body volume: 5400*2400*1100mm,14 cbm

• Cargo Steel plate thickness: Bottom16mm,side 10mm

• Dimension(L*W*H) (mm): 8700*2450*2700mm
