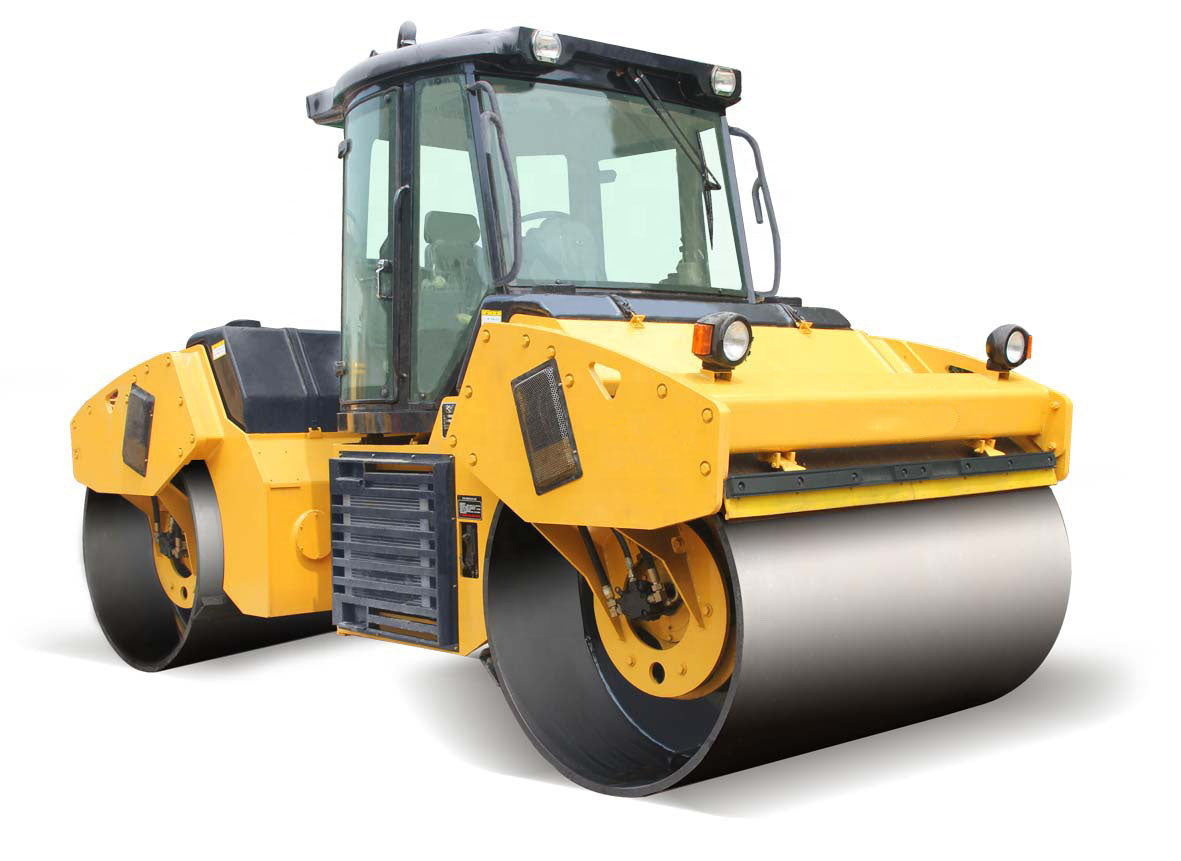

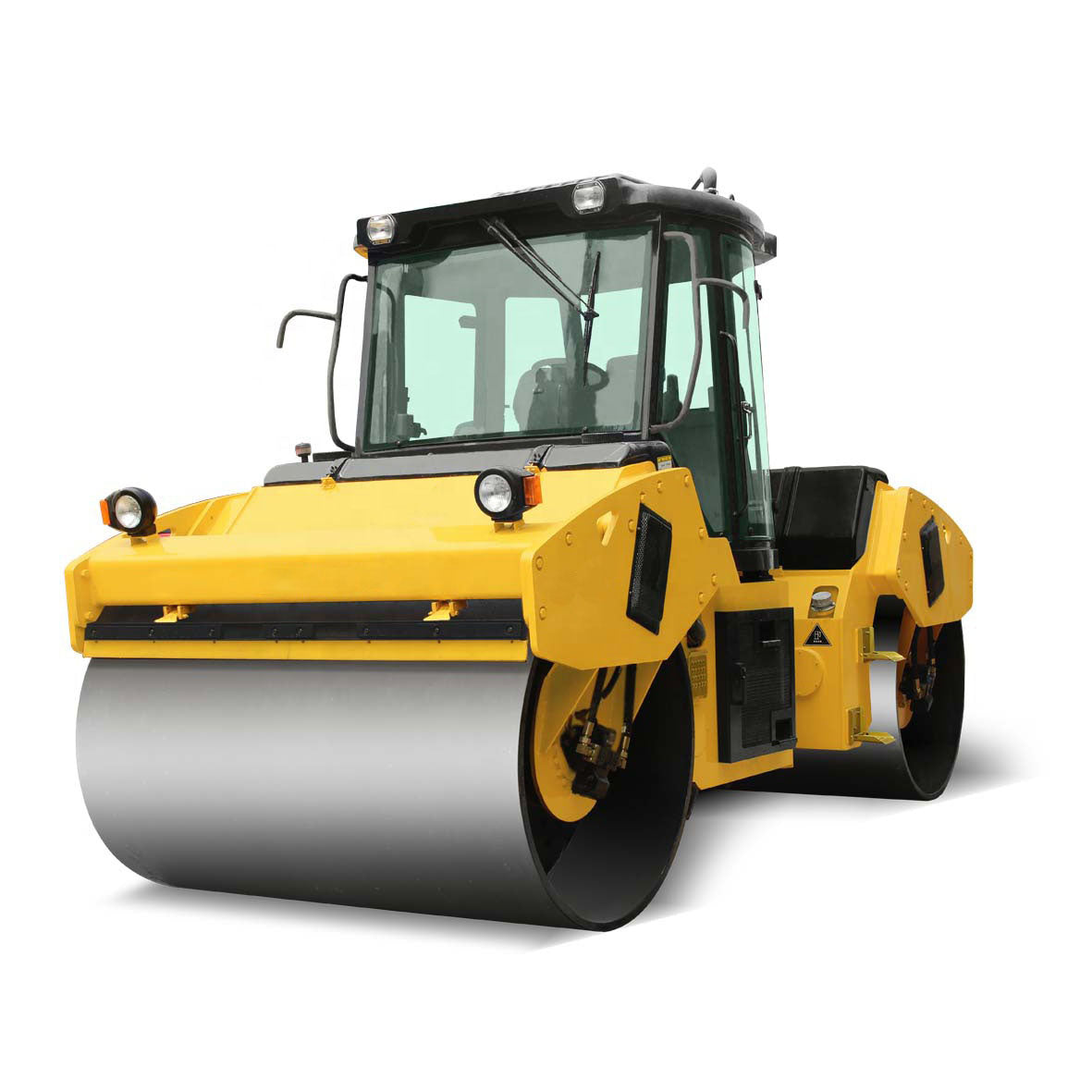

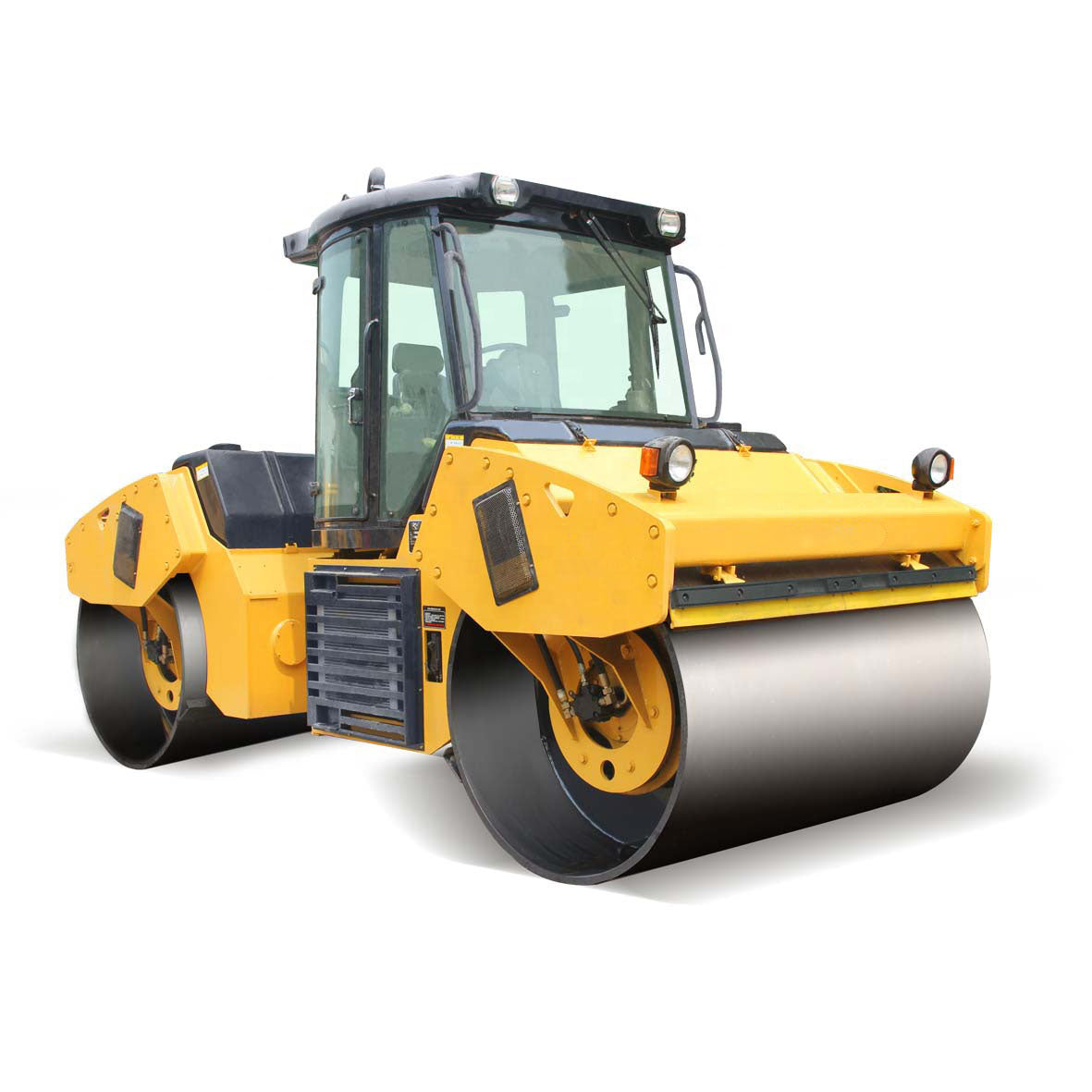

Hydraulic Doube Drum Vibrating Roller High Reliability Road Roller for Asphalt Road YDKTC62022

Description:

     YDKTC62022 Double drum vibratory roller, oscillatory roller, is applicable for maintenance of municipal roads and highways, as well as the compaction of the narrow road surfaces such as groove foundation with width above 1.5m, building construction, pipeline backfll and stadium.

Specification:

• Model: YDKTC62022

• Operating mass（Kg）：6000

• Static linear load（N/cm）: 232.4

• Drum diameter (mm ) : 950

• Rollig width (mm ) : 1320

• Centrifugal force (kN) : 55

• Centrifugal Movement (KN.m)

• Oscillation frequency (Hz) : 46

• Oriental vibration amplitude (mm) : 0.62

• Oscillation amplitude

• Travel speed1"gear 2"gear (km/h) : 2.5/7.5

• Grade ability (%) : ＞20

• Diesel model : 498BG

• Diesel speed (r/min) : 2200

• Diesel power (kw) : 42

• Overall dimension (mm) : 3690x1600x2700

• Water tank capacity (L) : 435

Main Feature:

1. Hydraulic vibration and oscillation, great centrifugal force and high compactness.

2. This roller has articulated frame,hydraulic steering,small turning raming radius and flexible drive.

3. Anticorrosive spray water system and fool capacity water tank and electric pressurized sprinkler.

4. Shock-proof sock absorber for long life and operate comfortable.

5. Close performance is extremely fine and work close building.

6. Secure hydralic brake.
