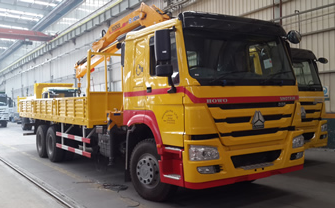

HOWO 6×4 Truck-mounted Crane 10T LHD

Model: ZZ1257N4647A

Engine：CNHTC brand WD615.69, 336hp

Transmission： HW19710, 10 Speed

Steering：ZF8118 hydraulic steering with power assistance

Cab：HW76 standard cab, one bunk, air conditioner,

Carriage Internal Dimensions: 6000x2326 x600 mm

Overall dimension: 10.35*2.55*3.55m

Rim/tires：12R22.5

English panel

Color: Optional

Crane Model: SQ10ZK3Q

Max Lifting Capacity:10000kg

Max Lifting Moment:25T.M

Recommend Power:28kw

Max Oil Flow of Hydraulic System:63L/min

Max Pressure of Hydraulic System:26MPa

Oil Tank Capacity:160L

Rotation Angle: All Rotation

Crane Weight:3800kg

Installation Space:1150mm
