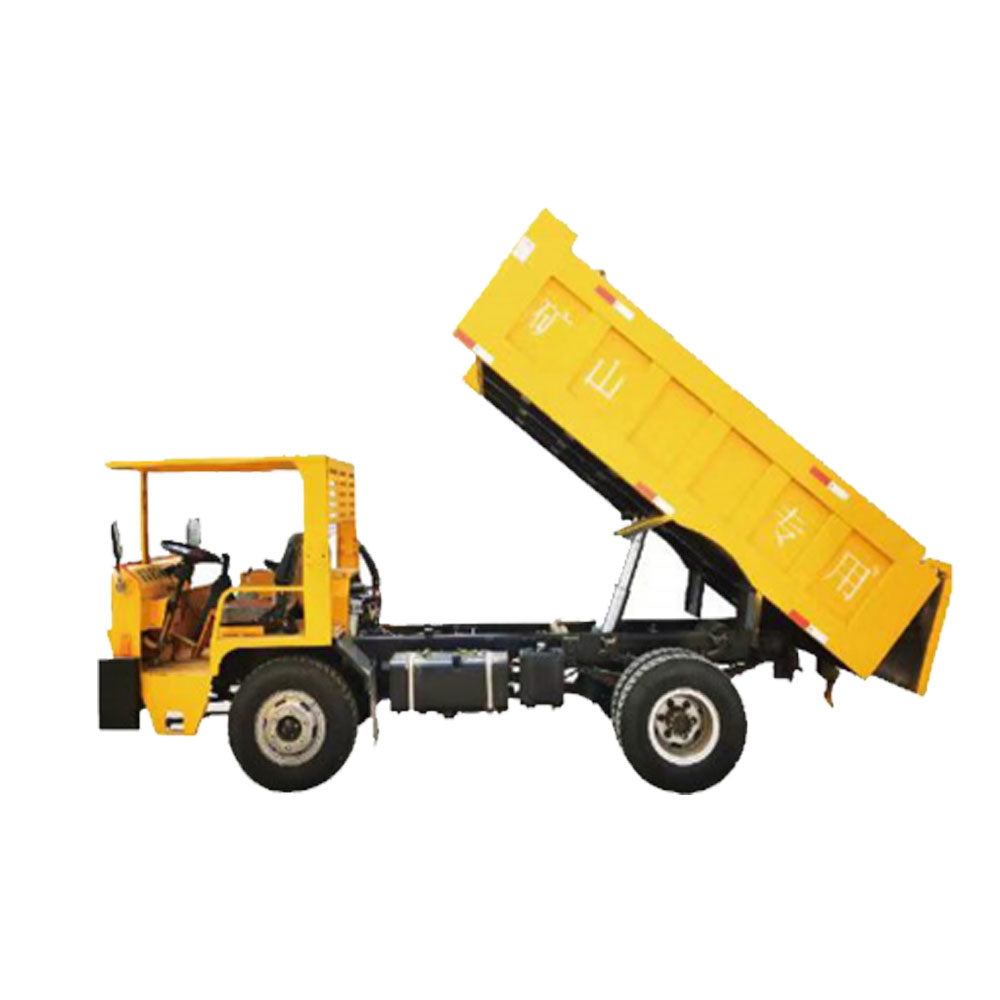

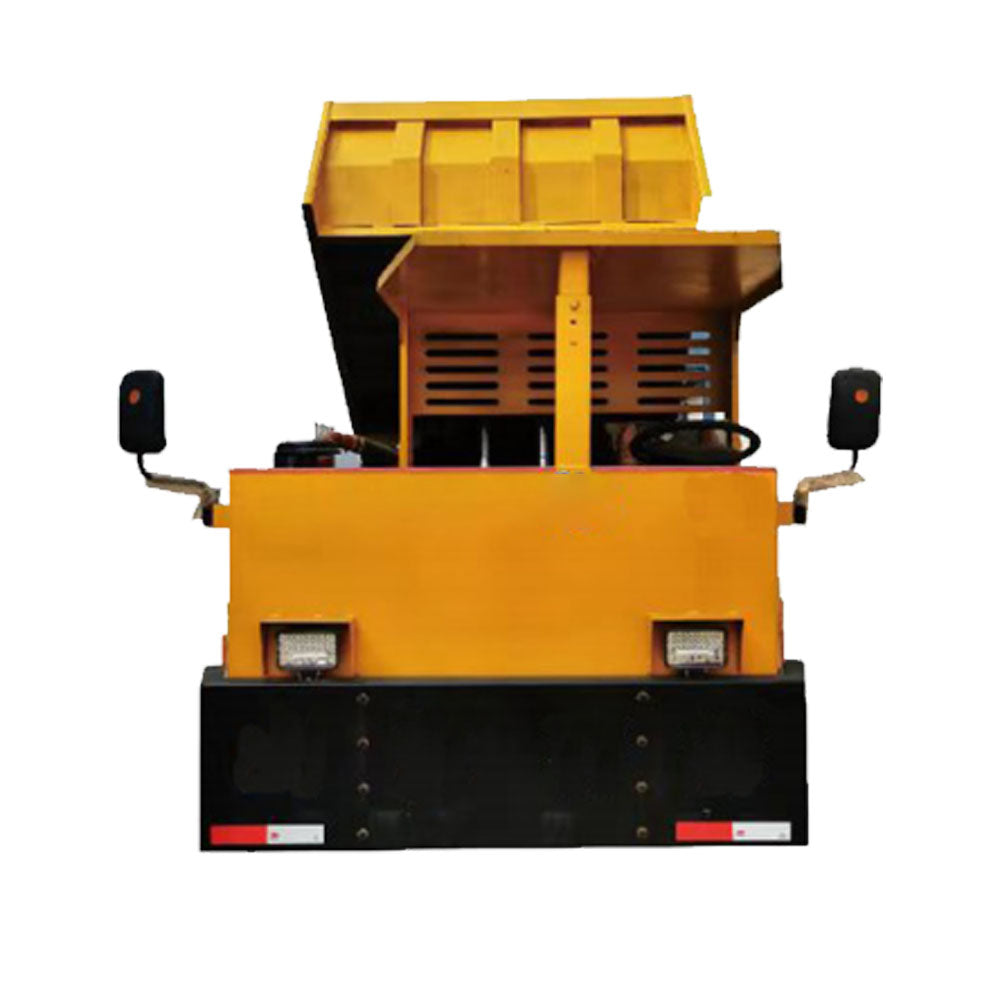

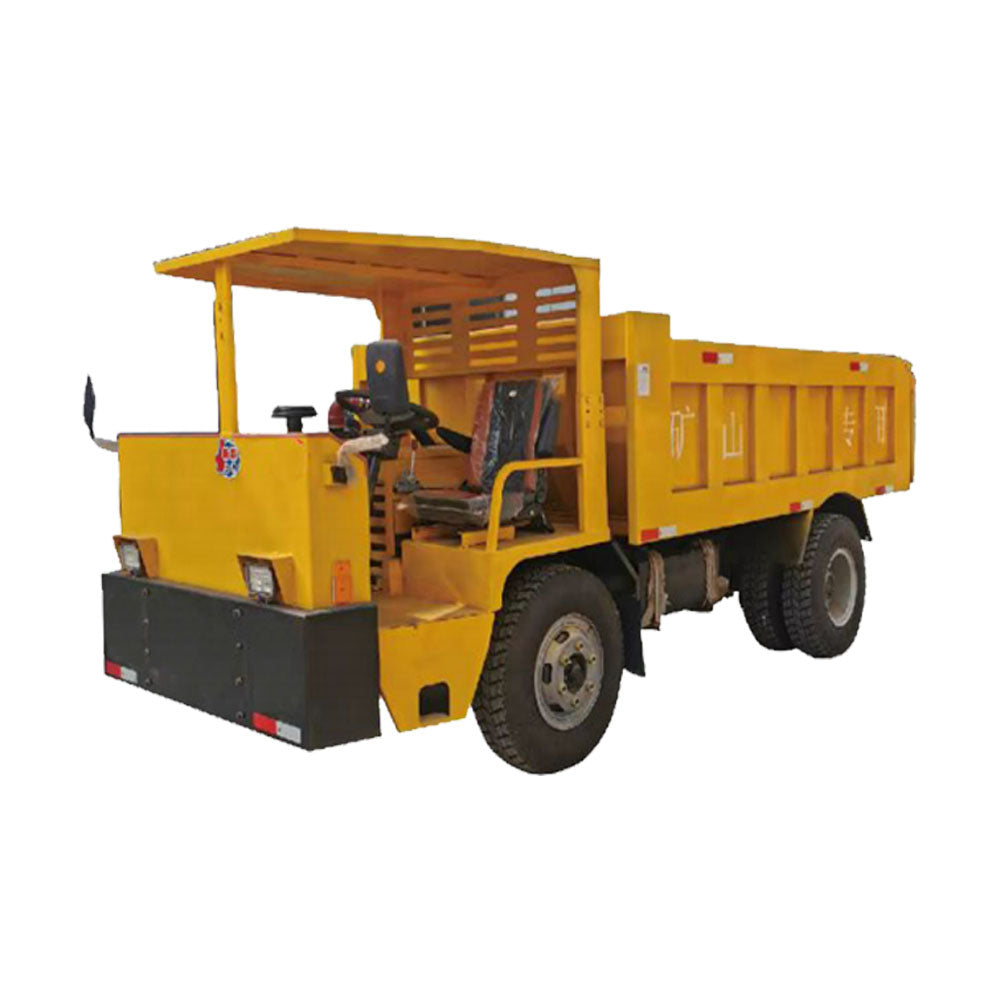

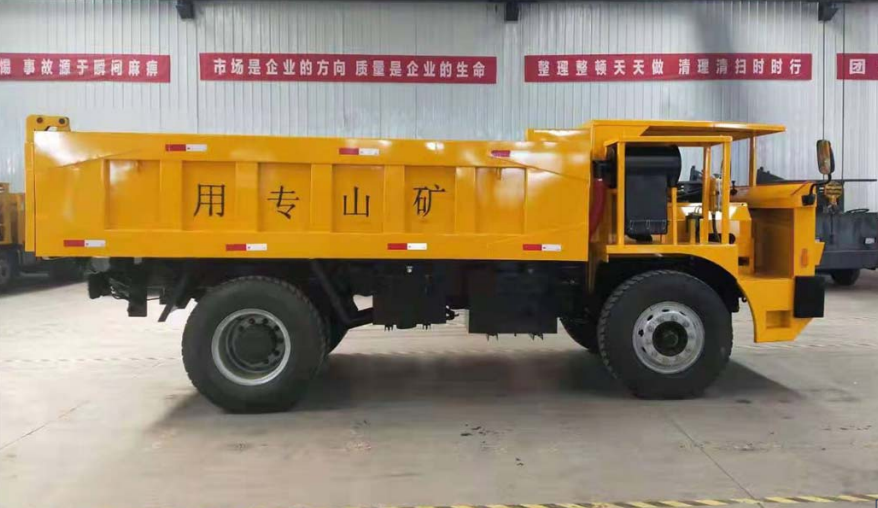

Flat Bed Lorry 10 Ton Mining Dump Truck Underground Mining Dump Truck YDMDT102022

Technical Parameter

• Rated Capacity (Ton)：10

• Rated power(HP): 110

• Engine model: Yunnei 4102

• Fuel type: Diesel

• Type of drive: 4*4WD (or 4*2 WD)

• Gearbox: Wangliyang 545

• Rear axle model: 1080

• Front axle model: 1061

• Dump hydraulic cylinder: Rear Two hydraulic cylinders

• Braking form: Air brake (or wet brake)

• Tire: 750-16, Front 2 tires+Rear4 tires

• Wheelbase: 2600

• Exhaust gas treatment: Water filter purifier

• Steering system: Hydraulic power

• Frame beam: Height 190mm,width 60mm, thickness 10mm.

• Ground clearance (mm): 200

• Cargo body volume: 3300*1800*700mm

• Cargo Steel plate thickness: Bottom10mm, side 6mm

• Dimension(L*W*H)(mm): 5000*1800*2050mm
