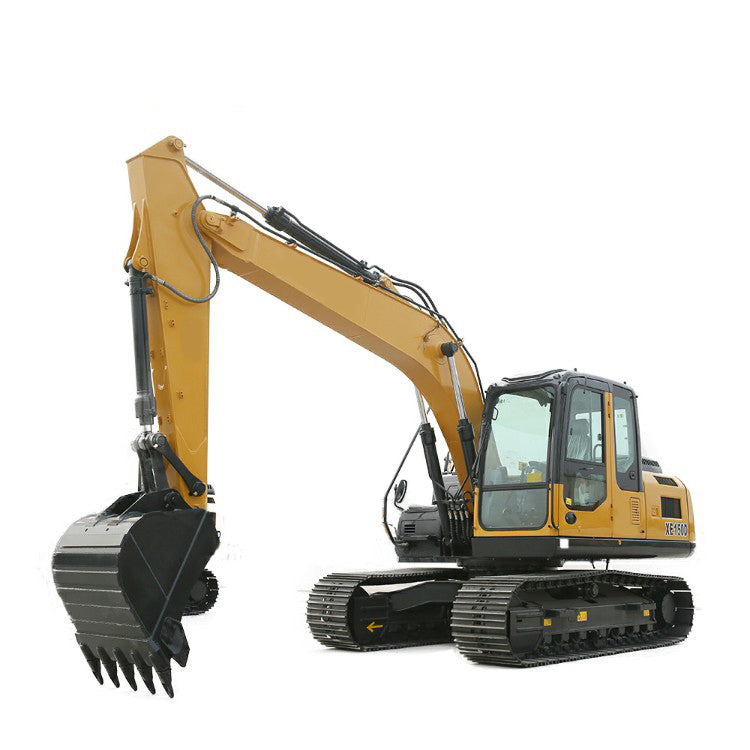

14.4T Crawler Excavator with 0.52~0.61m3 Bucket XE150D

Contact -- Whatsapp: +8618924274773

Specification

Applicable Industries: Construction works

Operation Weight: 14400 kg

Bucket Capacity: 0.52-0.61 m3

Engine model: cummins 4BTAA3.9

Output power: 85.4/2200

Max.torque/speed: 447/1500

Displacement: 3.927L

Traveling speed: 5.2/3.4 km/h

Rotary speed: 12.3 r/min

Gradeability: ≤35

Ground pressure: 38 kPa

Max.Bucket digging force: 85 kN

Max.arm crowd force: 65 kN

Max.traction force: 135 kN

Rate flow of main pump: 2×120 L/min

Max pressure of prime relief valve: 31.4/34.3 MPa

Max pressure of travel system: 34.3 MPa

Max pressure of swing system: 25 MPa

Max pressure of pilot system: 3.9 MPa

Fuel tank capacity: 250 L

Hydraulic tank capacity: 130 L

Engine lubrication: 14L

Total Length: 7801 mm

Total Width: 2590 mm

Total height: 2880 mm

 Overall width of upperstructure: 2512 mm

Track length: 3660 mm

Overall width of undercarriage: 2590 mm

Crawer width: 600 mm

Track length on ground: 2910 mm

Crawer gauge: 1990 mm

Clearance under counter weight: 964 mm

Ground clearance: 478 mm

Min.tail swing radius: 2325 mm
