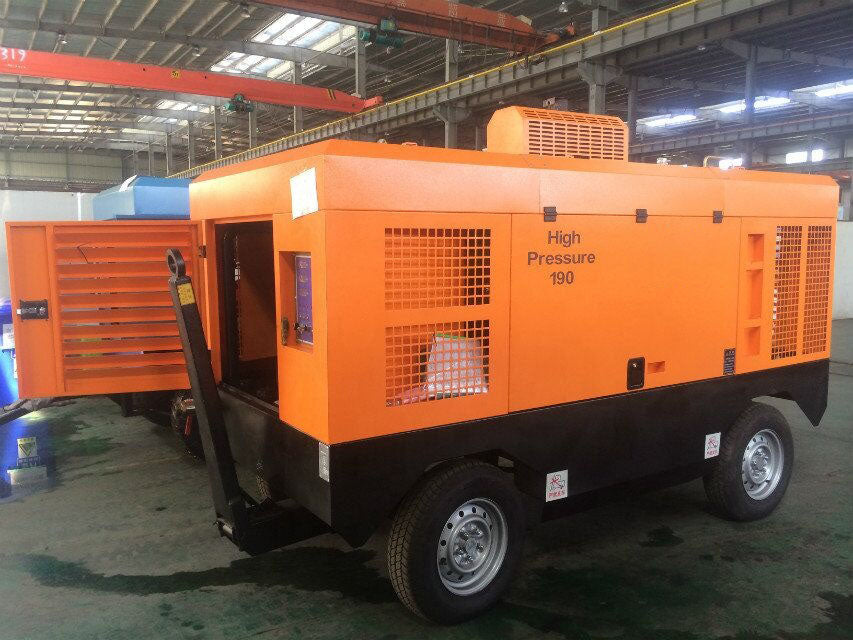

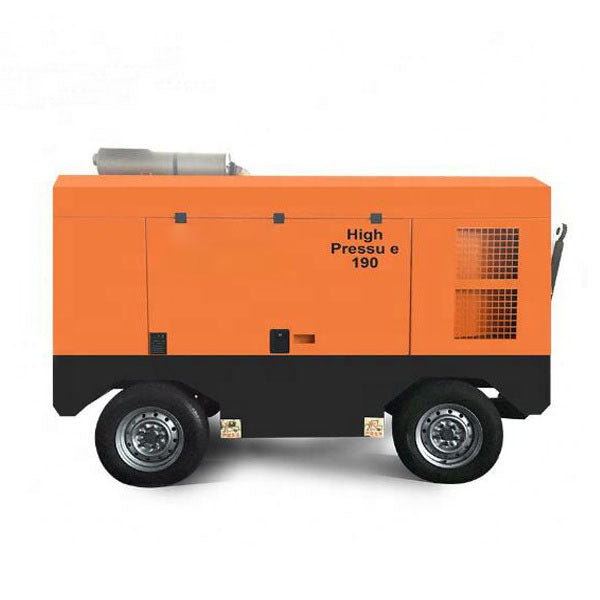

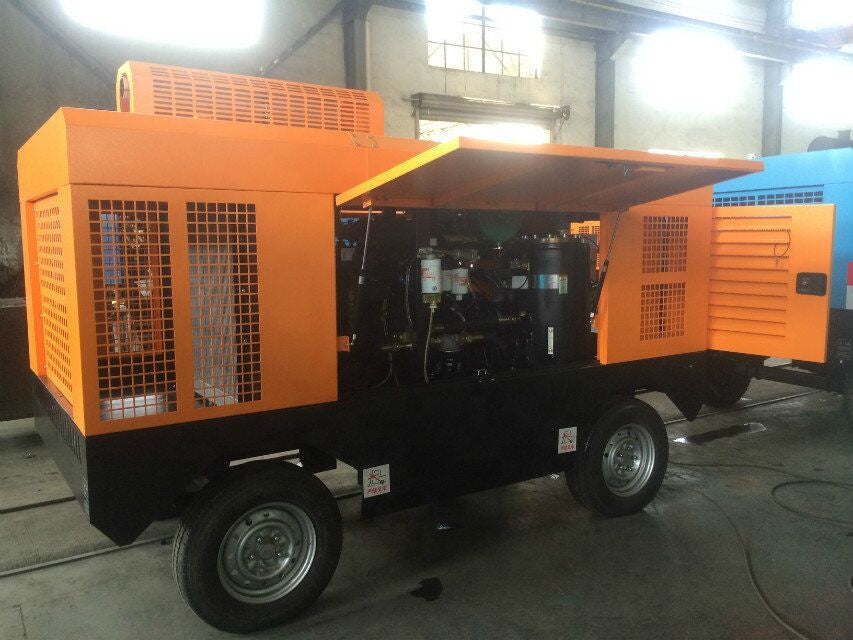

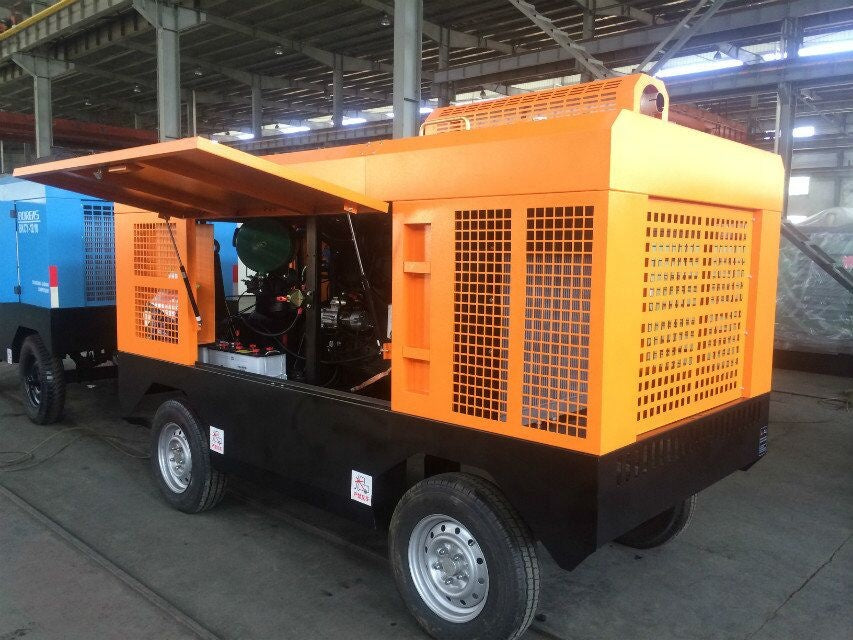

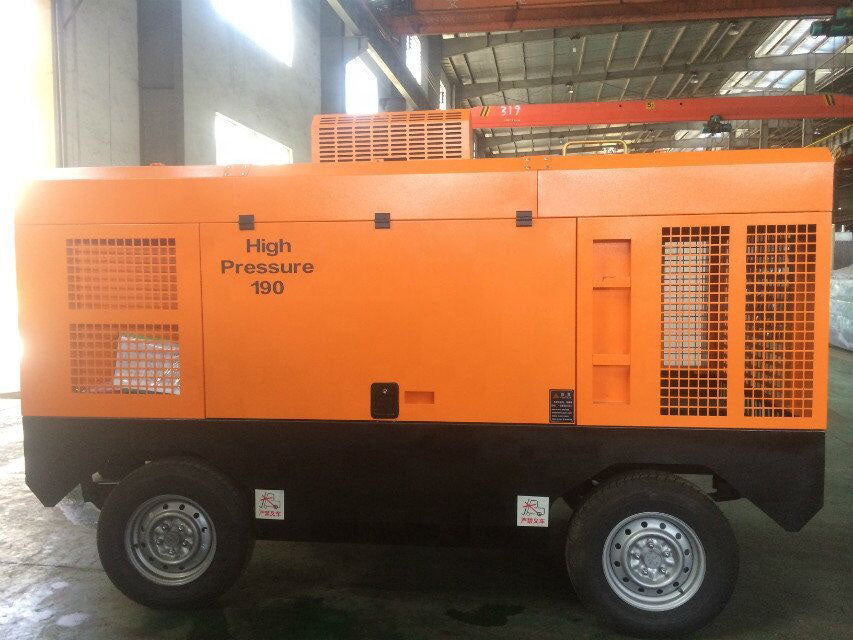

Diesel Screw Air Compressor/Portable 15m3 ,13bar High Efficiency Diesel Screw Air Compressor YDKSCY-550/132022

Specifications

Specification

  • Model: YDKSCY-550/132022

  • Capacity(CFM): 550

  • Working Pressure(Bar): 13

  • Weight(kg): 2530

  • Dimension(mm): 3400*1520*2000mm

  • Matched Power: YC6A180Z-T21

  • Bore*Stroke*Cylinders: 108*132*6

  • Exhaust Volume (L): 7.255L

  • Rated Speed (r/min): 1800

  • Rated Power (kw): 140

  • Diesel oil capacity (L): 15

  • Fuel tank capacity (L): 150

  • Electrical system voltage (V): 24

  • Compression stages: 1

  • Compressor oil capacity (L): 36

  • Remark: Four-wheel

  • Supply valve  specifications*Quantity : G2*1,G3/4*1

Features of air compressor for drilling rig

1.Low operating sound and less vibration design.Easy serviceability.

2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.

3.High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.

4.Good adaptability:
The Portable Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.

 Application


    Belt driven air compressor is widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.
