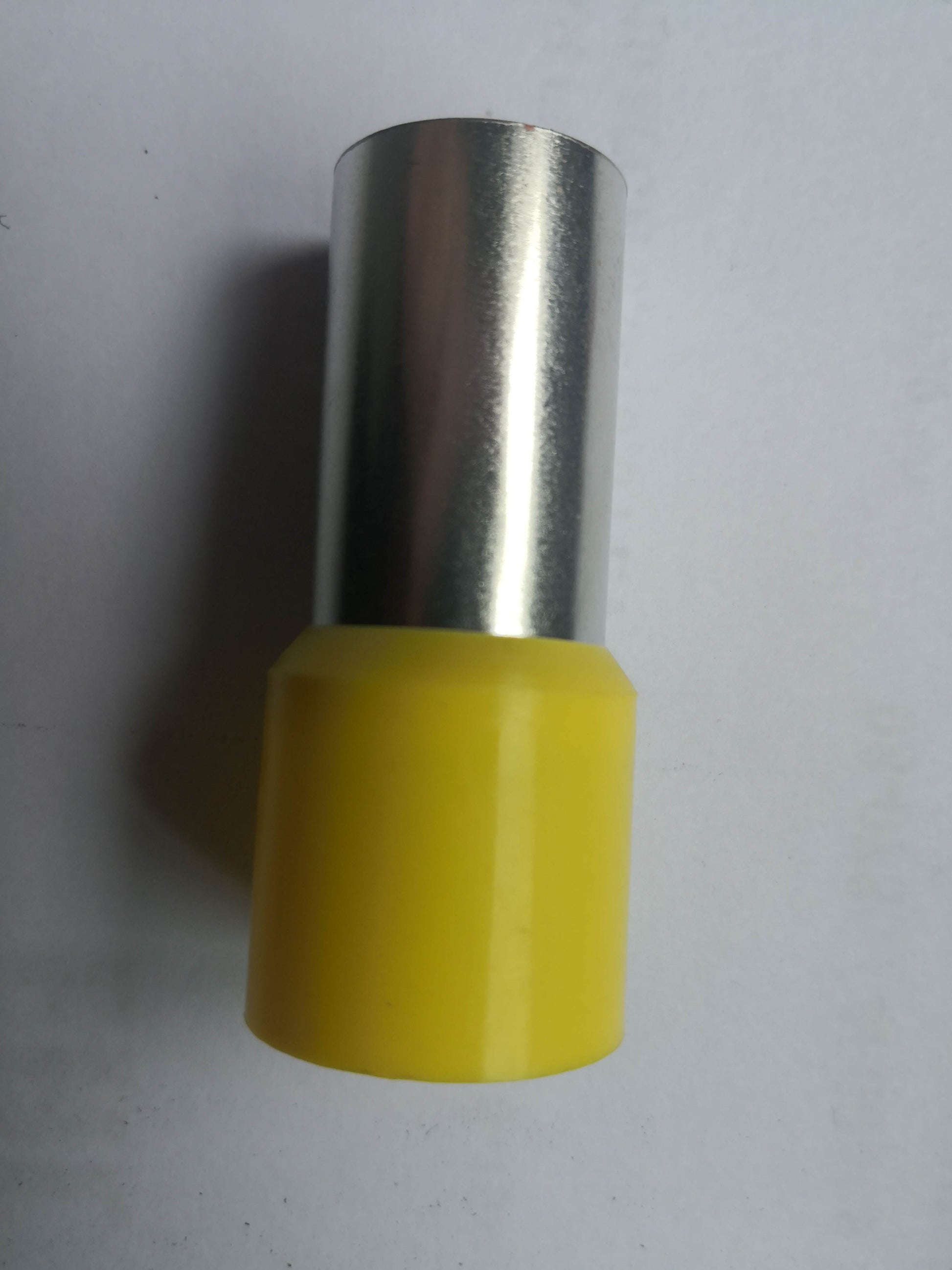

Crimping Ferrule 150 Millimetre Squared

S/N

   DETAILS

DATA

1.

Description

Mechanical connector, unblocked tinned copper ferrule.

2.

Maximum system voltage

Up to 36 KV

3.

Conductor size

150 mm2(100)

4.

Grooved internal surface of conductor hole

Yes

5.

Lengthwise striated inserts to accommodate at least120mm2 conductor to be

provided

Yes

6.

Material

Tinned copper

7.

Minimum number of shear head bolts

4

8.

Class

A

10.

Packaging

Individually packed in plastic bag.

11.

Previous type test

results/certificate to be provided with the bid

Yes

12.

Routine tests results to

be provided on delivery

Yes

13.

Quality assurance certificate to be

provided with the bid

Yes

14.

Drawings of the mechanical connector provided

with the bid

Yes

15.

Applicable standard

IEC 61248-1
