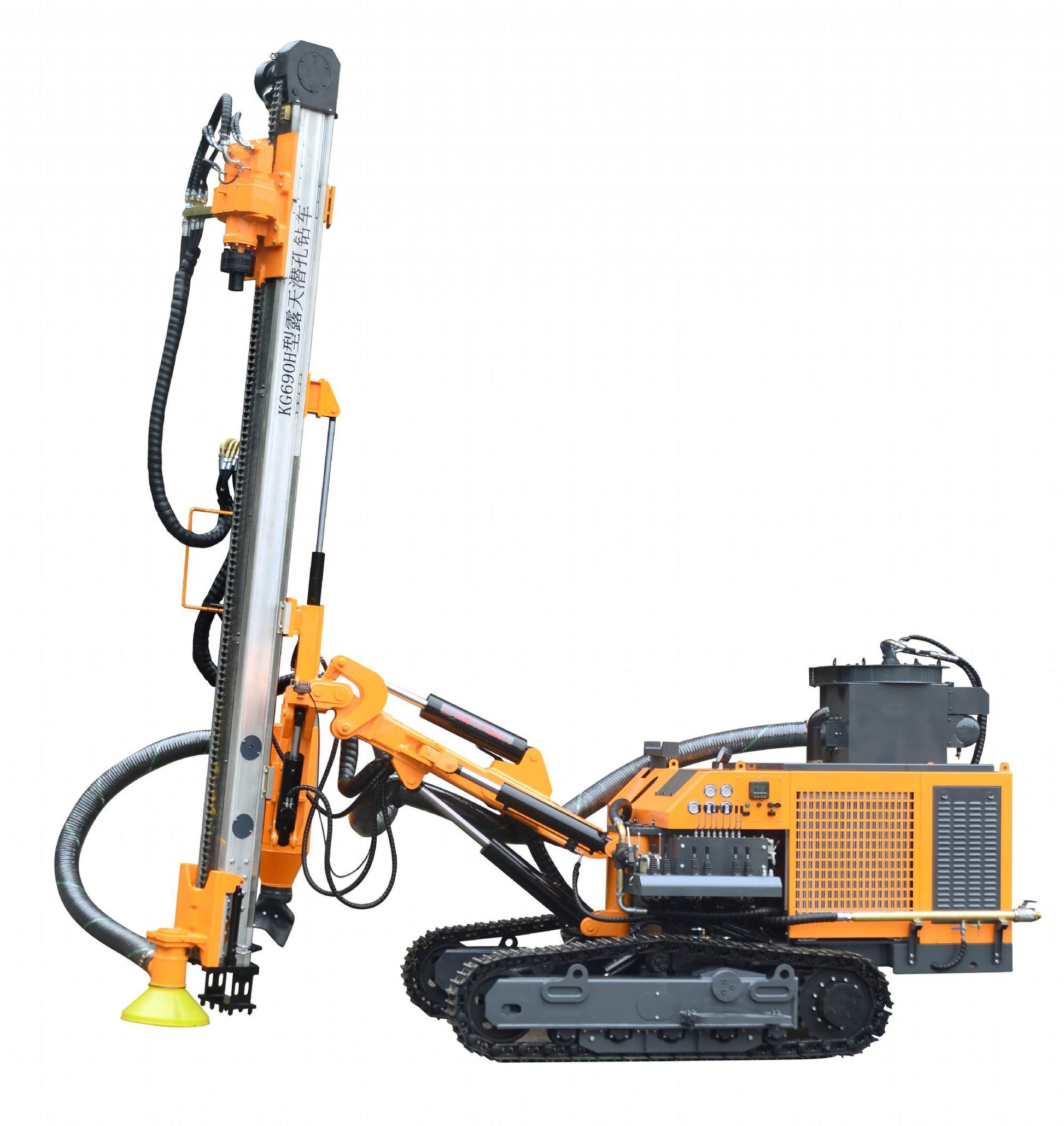

Crawler Rock Drill Crawler DTH Drill Rig Machine for Mining Anchoring and Road Building 82KW YDKG690H2022



  • Technical Parameters

  • Model of dnil rig:YDKG690H2022

  • Weight of complete machine:8000KG

  • Outer dimensions:7450×2385×2805mm

  • Dnling hardness:f=6-20

  • Driling diameter:Φ105-152mm

  • Depth of economnical driling:25m

  • Rotary speed:0-75/0-100rpm

  • IRotary torque (Max):5000N·m(Max)

  • Liftng force:35KN

  • Method of Feed:motor+roller chain

  • Feed stroke: 3813mm

  • Travelling speed: 0-3km/h

  • Climbing capacily: ≤30°

  • Ground clearance: 350mm

  • Tlit angle of Beam: Down135, up 30°,totat 165°

  • Swing angle of boom: Left 40°,right 40°,total.80°

  • Pitch angle of dril boom: Down.55°,up:25",total.80°

  • Swing angle of drll boom: Left 45°right 45°.total 90°

  • Leveling angle of track: ±10°

  • Compensaton length of beam: 1200mm

  • Supportlng power: 4DKC2G3-100/73KW/2200rpm IYuchai4DKC2G3-100/73KW/2200rpm

  • DTH hammer: K40、K50

  • Drlling rod: Φ76×3m/Φ89×3m

  • Air consumption: 15-22m³min


Usage of drill machine for road:

  1. DTH drilling rig for blast hole drilling, anchoring, road buliding ;

  2. This machine for blast hole can used for Granite,Basalt ,Marble,Quartz or other rocks and stones.
