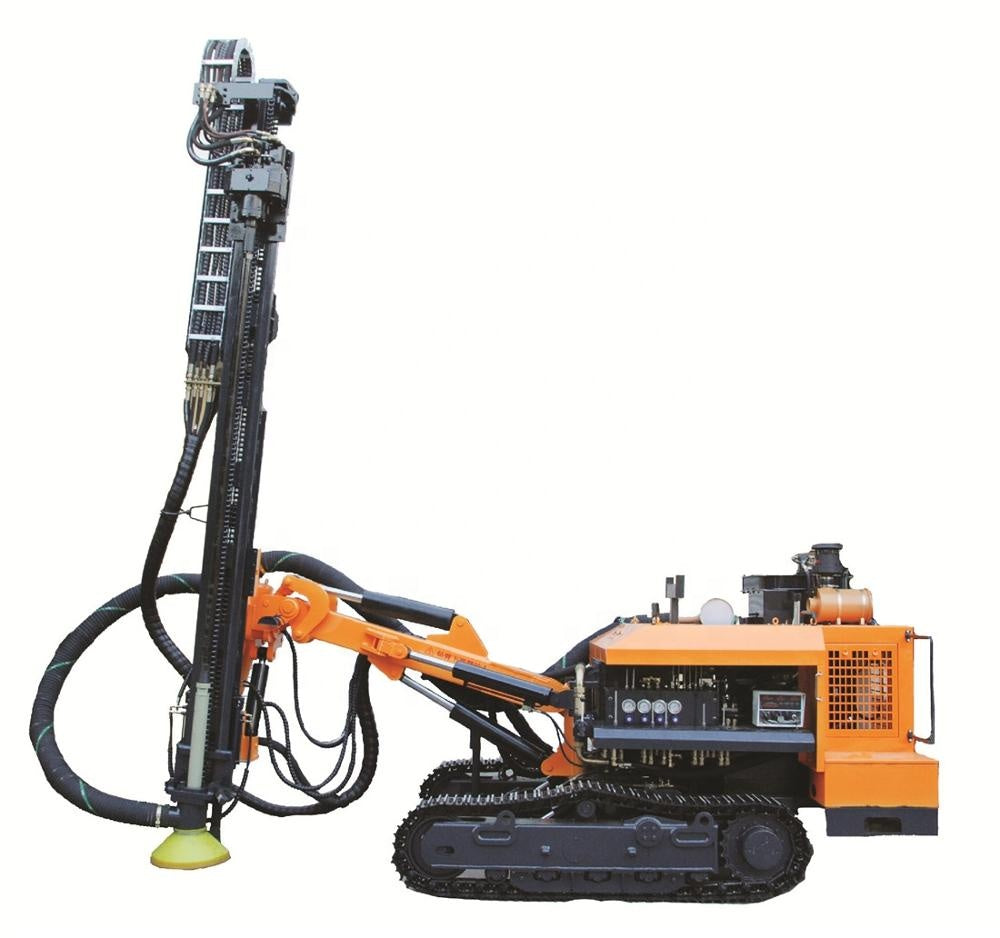

Crawler Rock Drill 92kw, Drill Rig Machine for Mining, Anchoring and Road Building YDKG610H2022

Contact -- Whatsapp: +8618924274773

Specification:

• Technical Parameters

• Model of drill rig: KG610H

• Weighl of complete machine: 7600KG

• Outer dimensions: 6700×2250×2850mm

• Drilling hardness: f=6-20

• Driling diameter;Φ105-202mm

• Depth of economical drling: 40m

• Rotary speed: 0-110rpm

• Rotary torque (Max): 5000N·m(Max)

• Lifting force: 25KN

• Method of Feed: Motor+roller chain

• Feed stroke: 3000mm

• Traveling speed: 0-4km/h

• Climbing capacity: ≤30°

• Ground clearance: 440mm

• Tilt anqle ol Beam: Down 135°,up.50°,total 185°

• Swing angle of boom: Left 40°,right 40°,total 80°

• Pitch angie of drl boom: Down:55°,up:25°,total 80°

• Swing angle of dnill boom: Left 45°,right 45° total 90°

• Leveling angle of track: ±8°

• Compensation length of beam: 1200mm

• Supporting power: QSB3.9-C125(92KW/2200r/min)7Cummins QSB3 9-0125(92KW2200r/min)

• DTH hammer: K50

• Drlling rod: Φ89×3m/Φ89×3m

• Air consumption: 15-26m³min

• Maximum height of honzontal hole: 2850mm

• Minimum height of honzontal hole: 500mm

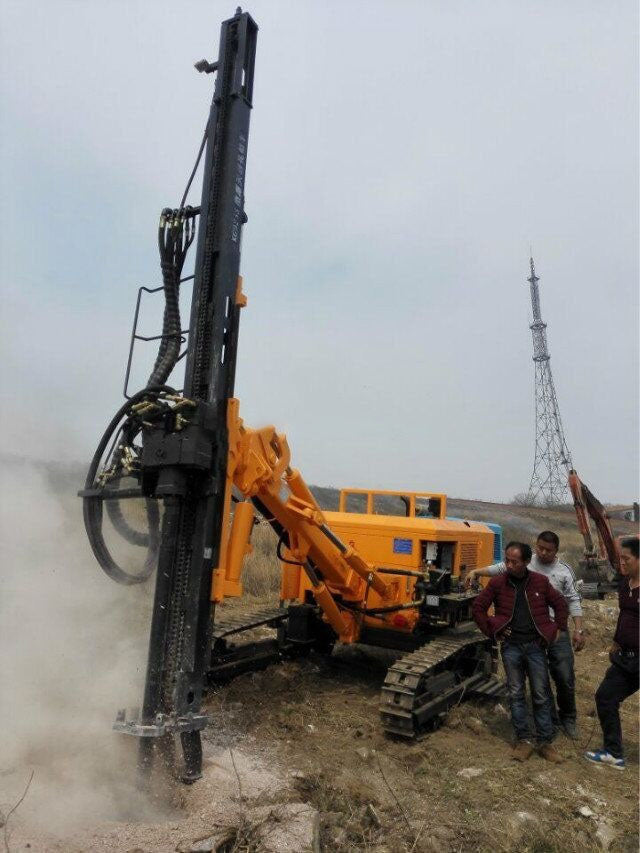

Usage of drill machine for road:

1. DTH drilling rig for blast hole drilling, anchoring, road buliding ;

2. This machine for blast hole can used for Granite,Basalt ,Marble,Quartz or other rocks and stones.
