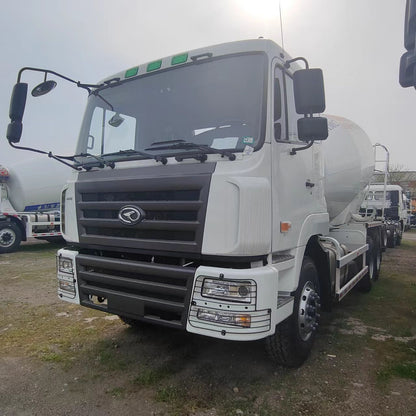

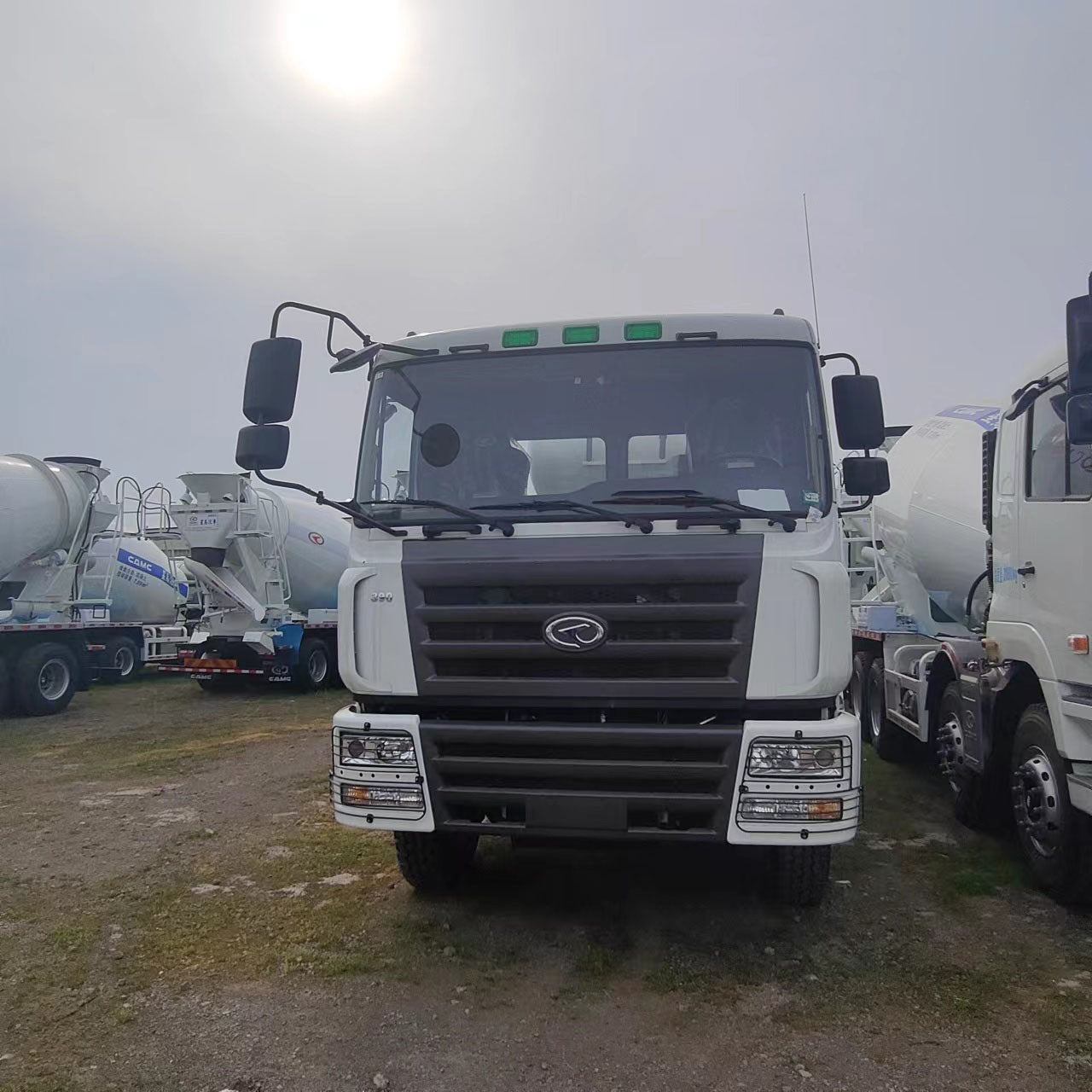

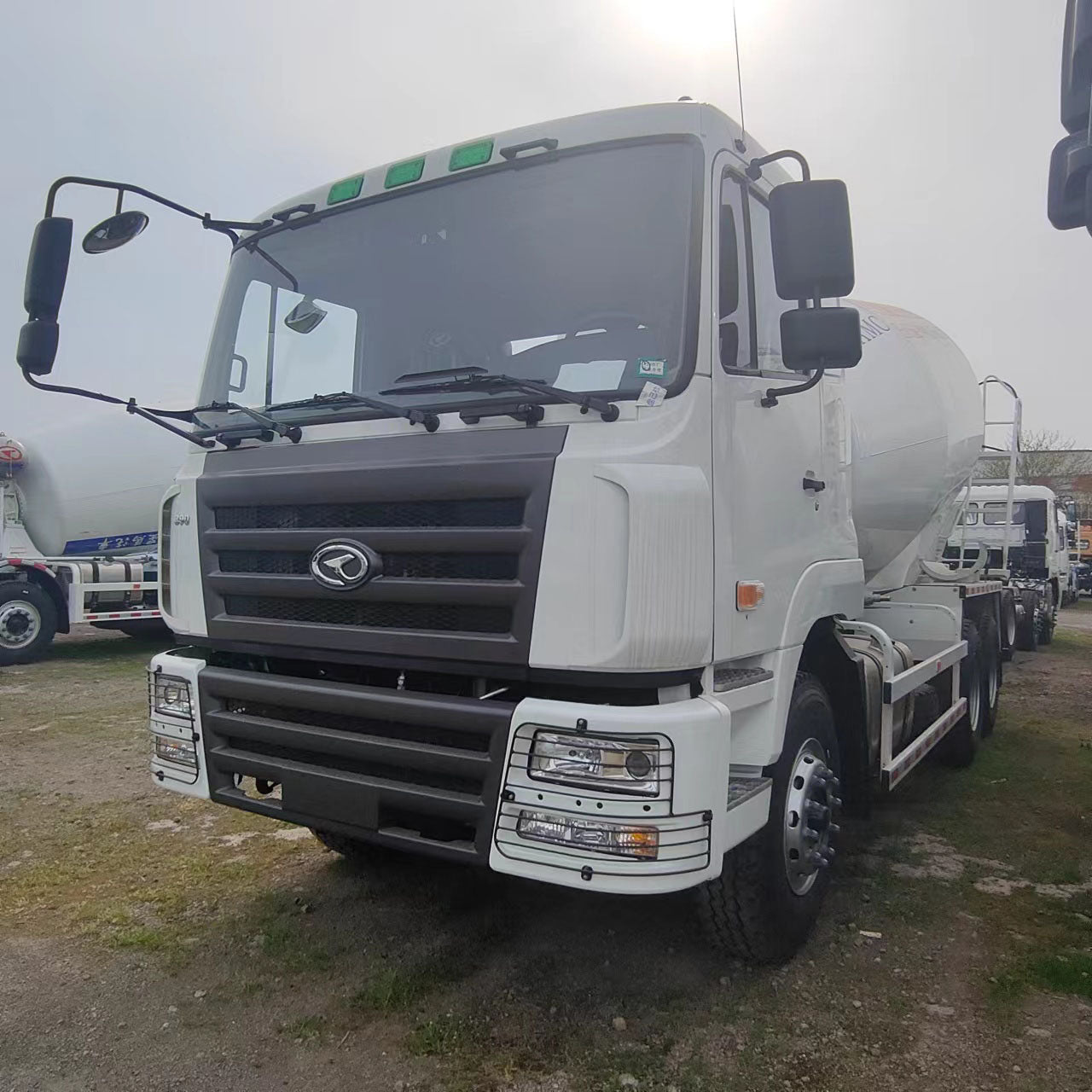

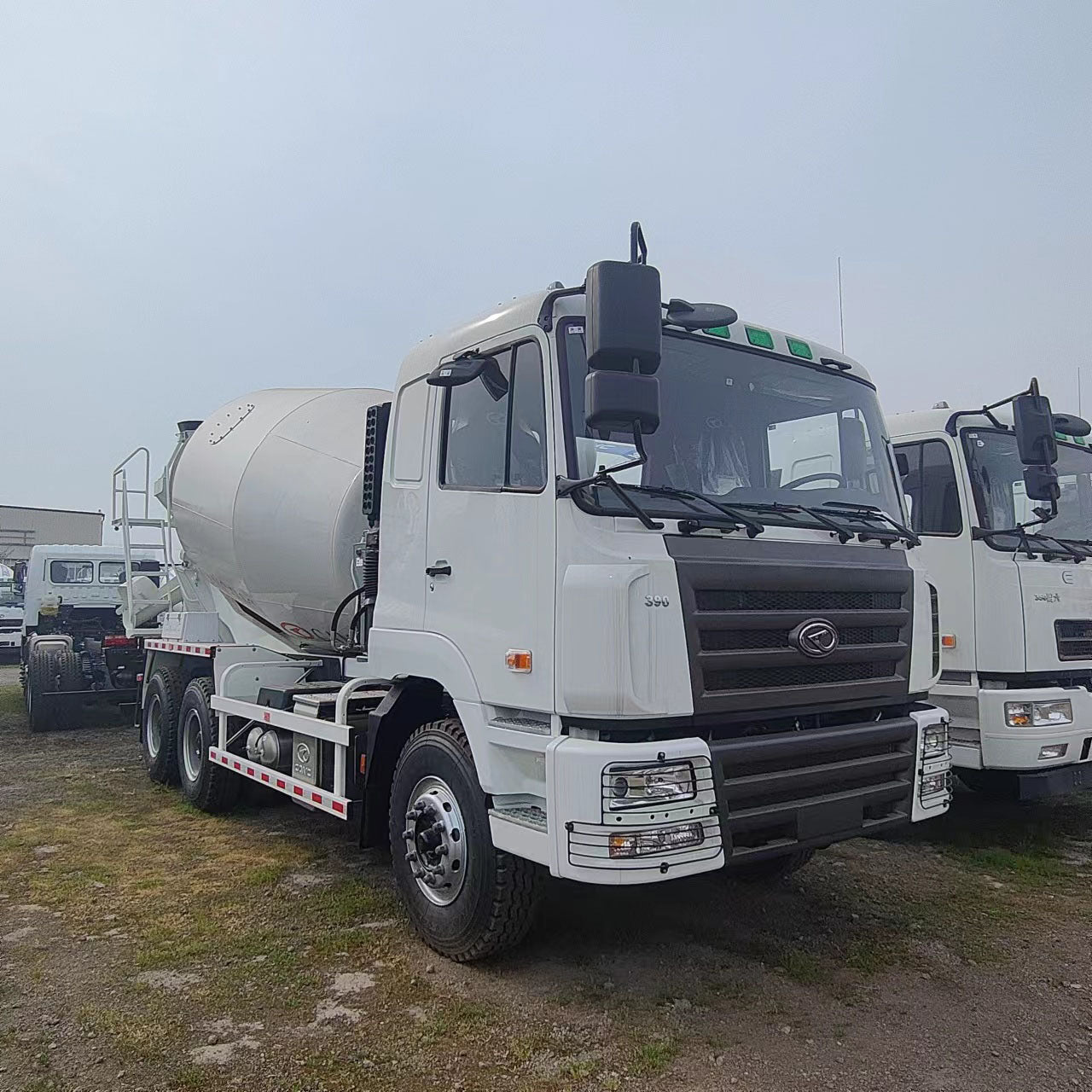

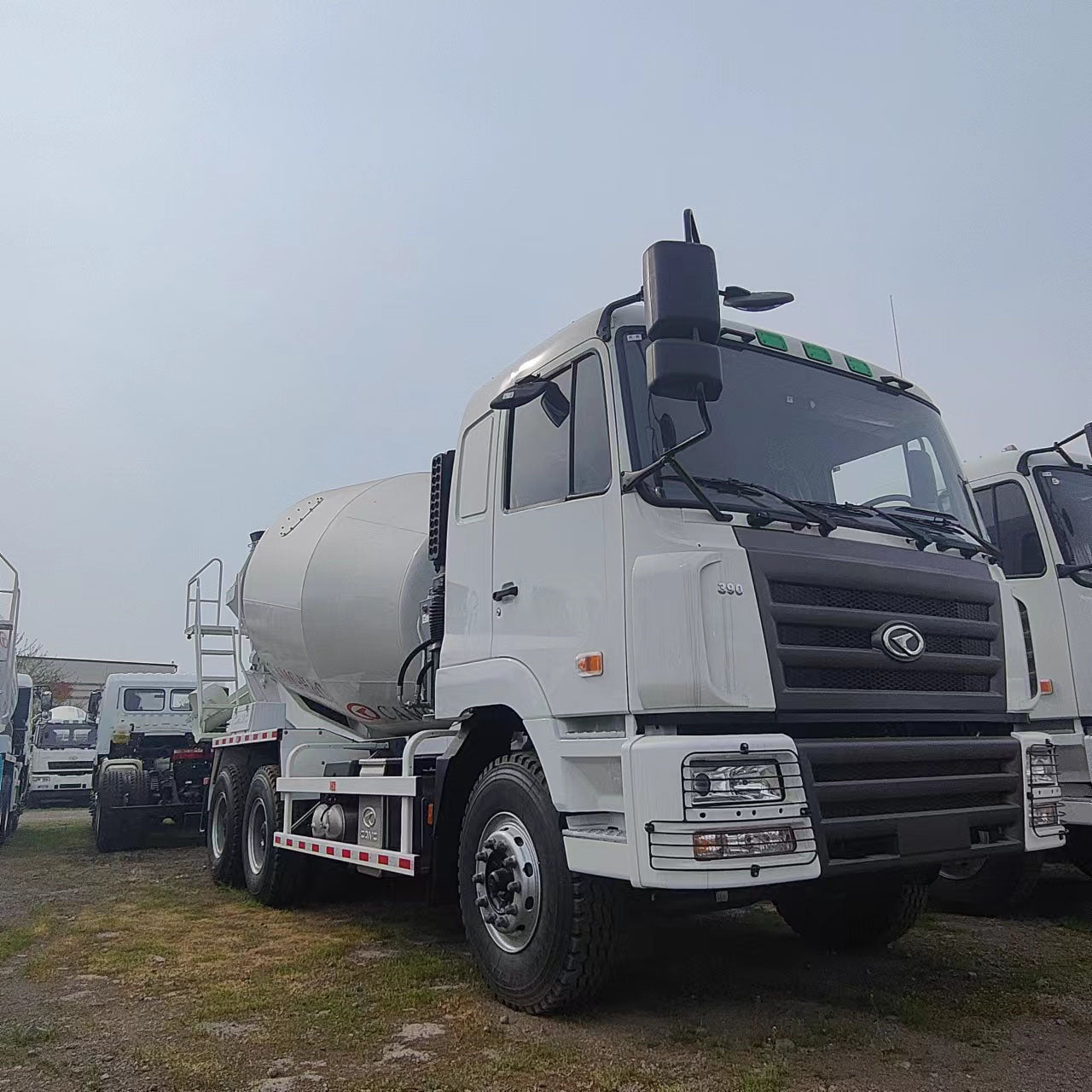

Concrete Mixer Transportation Truck 10m3 Diesel Fuel Truck YDCM6D18 385 312022

Parameter

• Model: YDCM6D18 385 312022

• Fuel type: Diesel

• Rated power/horsepower（kw/hp): 276/385

• Rated speed(rpm): 1900

• Displacement (L): 9.84

• Emission Standard: Euro 2

• Cylinders: 6

• Controller type: Mechanical

• Drive type: 6×4

• Overall dimension (mm): 9050×2550×3920

• Wheel base(mm): 3600+1350

• Kerb Weight (kg): 15400

• Rated GVW/ GVW (kg): 32000/40000

• Size (H*W*T): Height:310m，Width:90mm，Thickness:8mm+58mm (Double)

Front axle

Technology steering axle with double T-cross section, Rated

capacity:7.5T

Rear axle

CAMC technology 16T casting axle , with double reduction and

differential locks between axles,Rated capacity:16T

Ratio:5.263

optional:3.867, 4.267, 4.769, 5.921

Tyre: 12.00R20 Steel tire,10+1 pieces
