Description:

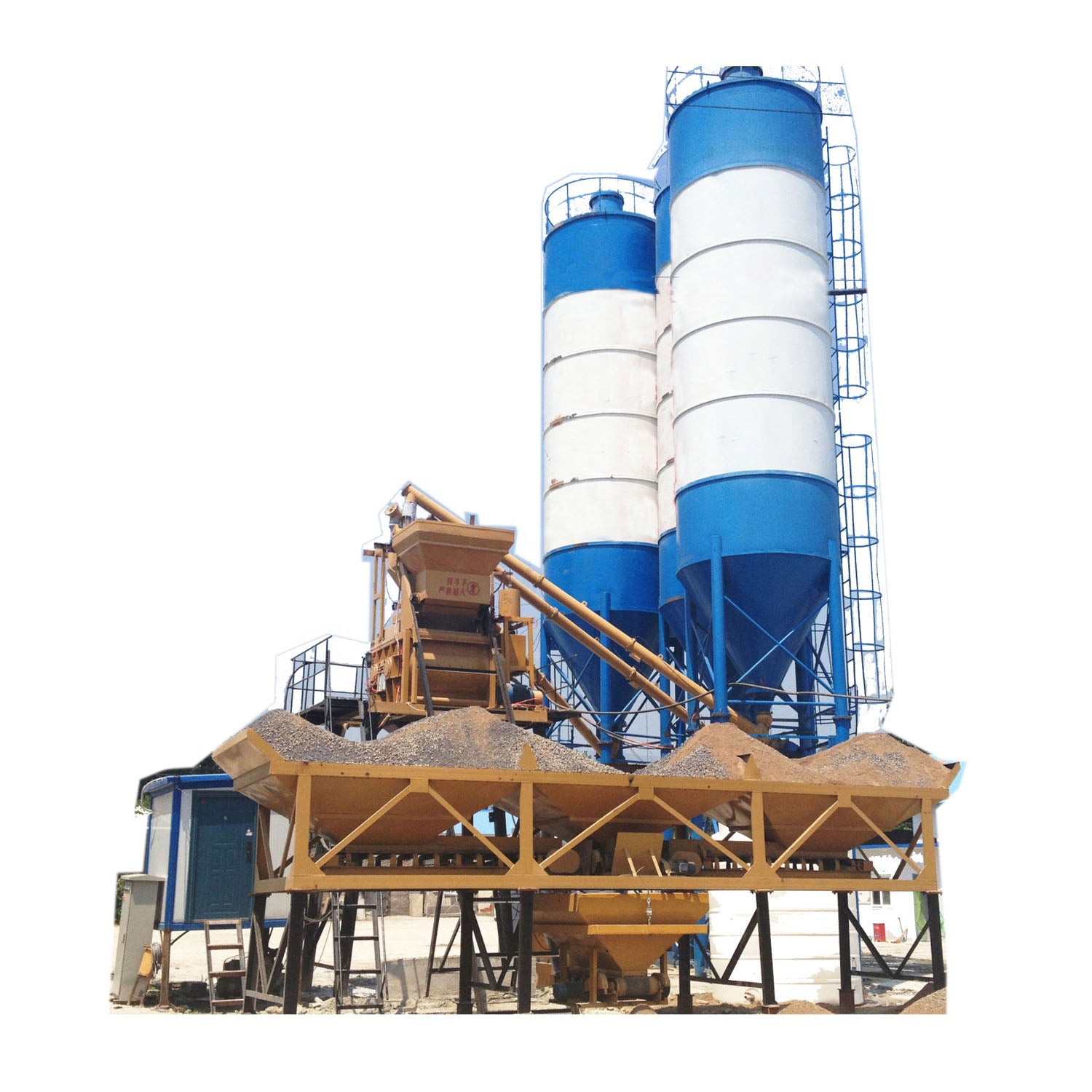

       Concrete Batching Plant is composed of feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.), featured by high-precision computer control. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.

       The HZS series Concrete Batching Plant from our Manufacturer can be widely used for house construction, road, bridge, railway, ports, airport, water conservation, square, industry, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications. HZS series concrete mixing plant is a compulsory, high efficient equipment.

Product Paramenters:

Model: YDHZS502022

The Whole Station--Max. Productivity: 50 m3/h

                                  Discharge Height: 1.5-3.8 m

                                  Working Cycle: 72 s

                                  Dimension (L*W*H) (mm): 15922*13500*17750

                                  Power: 90 kw

Concrete Mixer: JS1000

Batching Machine:  PLD1600

Pneumatic system--Air Compressor Model: 1.5-7

                                  Nominal Displacement: 1.67 m3/min

                                  Rated Discharge Pressure: 0.8 mpa

                                  Motor power: 7.5 kw

Measurement Accuracy of Weighing system

                                   Aggregate: ±2%

                                   Cement: ±1%

                                   Water: ±1%

                                   Admixture: ±1%
