COMFAST CF-WA900 V2 1750Mbps 2.4G & 5G Firewall 5G Wi-Fi 802.11ac Outdoor Wireless AP with POE Adapter

Item Model

CF-WA900 V2

Hardware Specification

Chipset: Qualcomm QCA9558+QCA9880+AR8035

DDR: 256MB; Flash: 16MB;

PA Chipset: 2.4G SE2576L, 5.8G SKY85728-11

Built in Watchdog Chipset

Antenna

3*8dBi 2.4G Antenna(Optional)

3*8dBi 5.8G Antenna(Optional)

RF Parameters

Output power(MAX): 500mW(27dBm);

Receiving Sensitivity(MAX): -96dBm;

Frequency: 5.8GHz: 5.18-5.825GHz

           2.4GHz: 2.412GHz*2.472GHz

Wireless Rate

2.4GHz: 450Mbps

5.8GHz: 1300Mbps

Physical Ports

1*10/100/1000Mbps WAN RJ45 Ethernet Port

Support POE Power Supply; Waterproof Connector

Indicator Light

Power WAN WIFI

Power

Power Supply: 802.3af/at POE Power Supply(0-100m)

Power Adapter: 48V 0.5A POE Power Adapter(Configured)

Power Consumption

<24W

Installation Way

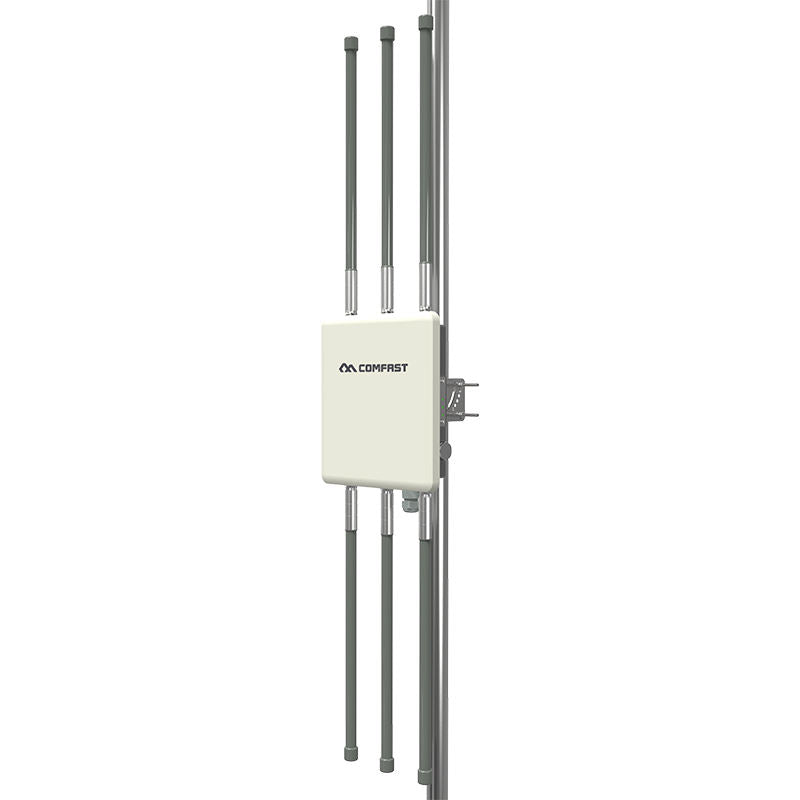

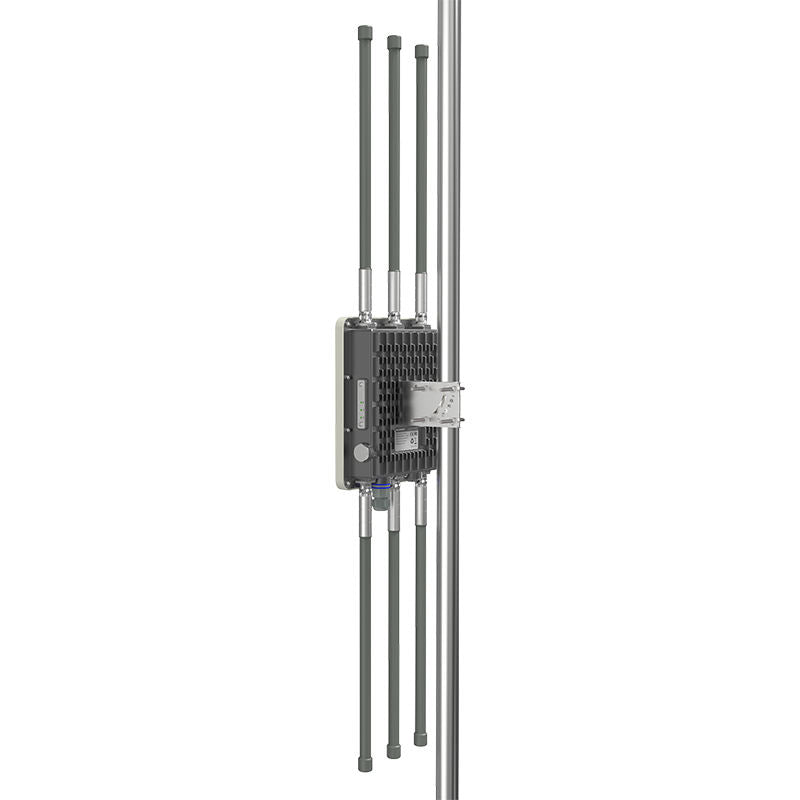

Pole-mounted

Physical Features

Sizez: 310*255*100mm, Antenna Length: 660mm

Weight: 2.23KG(Not including antenna)

IP Index

IP67 Thunder&Lightning protection: 4KV(Optional Arrester)
