Clamp P/G Aluminums/Copper 100/100 MM2

S/N

DETAIL

DATA

Description

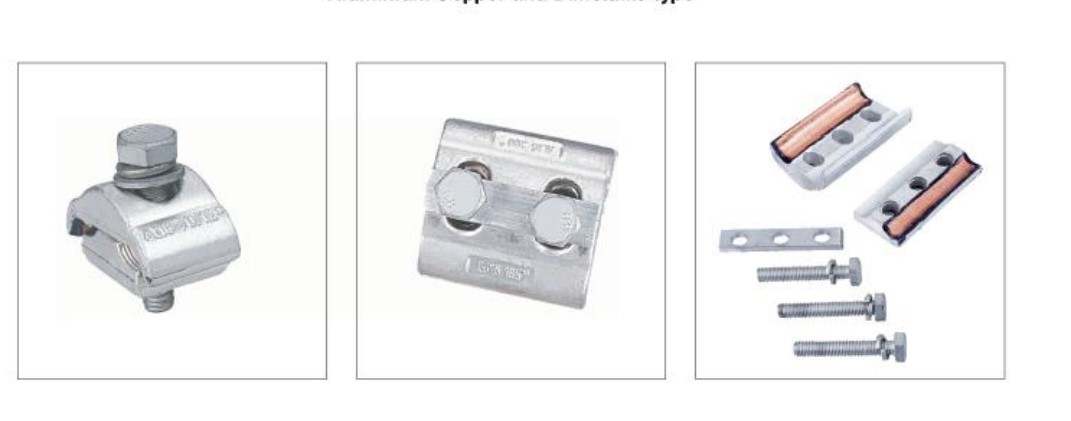

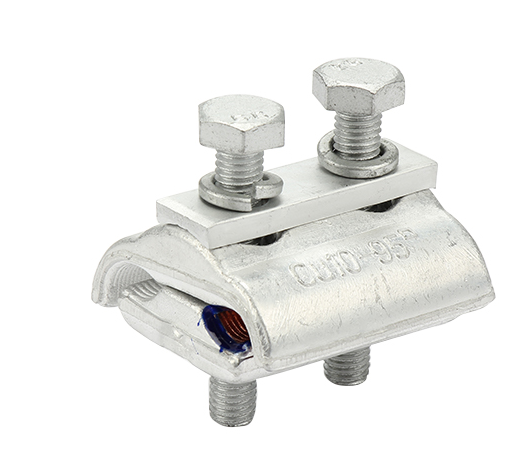

Aluminum/Copper parallel Groove connection

Type

Aluminium/Copper

Conductor cross section areas

100/100 mm2

CU10-95 /AL16-150

Number and material of bolt

2 X Galvanised mild steel bolts

Clamp body material

Aluminium

Drawings showing dimensions to be provided with bid

Yes

Previous type tests results/certificate to be provided with bid

Yes

Quality assurance certificate to be provided with bid

Yes

Applicable standard

IEC standards

Environmental Conditions

Ambient temperature range

-1 to+45 oC

Relative humidity

85 %

Altitude above sea level

1400 m
