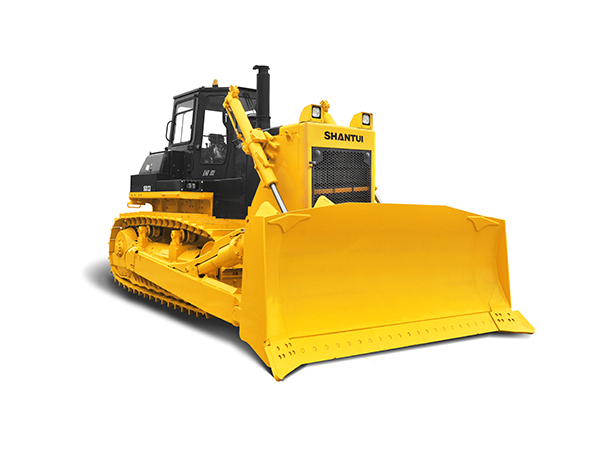

Bulldozer Shantui Dozer 320HP Excavator Crawler Track Bulldozer SD32

Please click to see more details

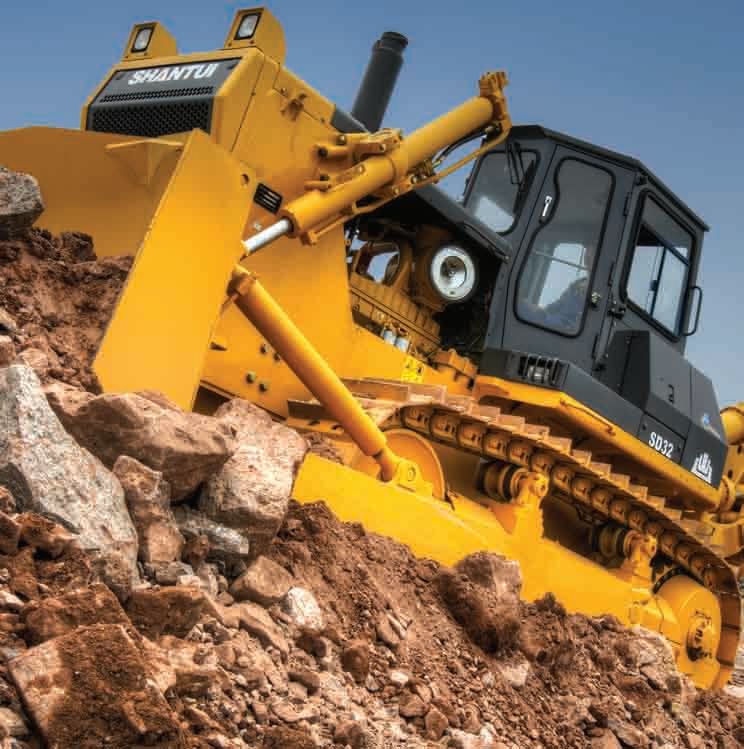

Based on the Shantui TY320B, the SD32 bulldozer was developed by Shantui for operation in earth moving projects with tough conditions. Equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provides reliable performance and convenient and flexible operation, the SD32 is the ideal medium size construction machine for earth moving projects.

Specification

L×W×H (Ripper not included): 6880×4130×3725mm

Operating weight (Ripper not included): 37.2t

Engine: CumminsNTA855-C360S10

Rated power: 235/2000 kW/rpm

Gradeability: 30°

Blade type: Straight tilt bladeSemi-U bladeAngle blade

Blade width: Straight tilt blade 4130×1590mm

Semi U blade 4030×1720Angle blade 5000×1140mm

Dozing capacity: Straight tilt blade 10Semi-U blade 11.9Angle blade 6m3

Max drop below ground of blade: 560mm

Lift height of blade: 1560mm

Ripper type: Single ripperThree-shank ripper

Ripping depth of ripper: Single ripper 1250Three-shank ripper 842mm

Lifting height of ripper: Single ripper 955Three-shank ripper 883mm

Number of carriers (each side): 2

Number of track rollers (each side): 7

Number of track shoes (each side): 41

Width of track shoe: 560mm

Track gauge: 2140mm

Ground length and ground pressure: 3150-0.105 mm/MPa

Pitch: 228.6mm

Forward speed: 0–3.6km/h

                         0–6.6km/h

                         0–11.5km/h

Reverse speed: 0–4.4km/h

                         0–7.8km/h

                         0–13.5km/h
