Technical Parameter

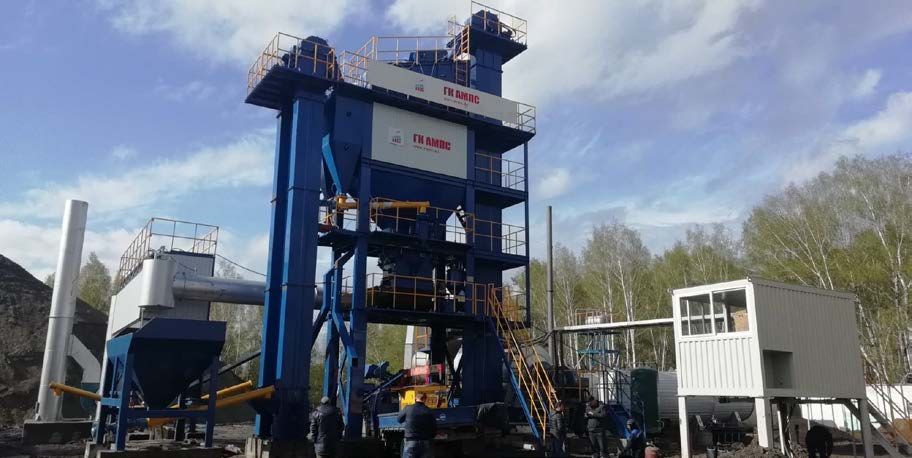

• Model: YDLB702022 Asphalt Mixing Plant

• Type: Batch Mix / Hot Mix

• Capacity : 60Tons Per Hour (Standard Working Condition)

• Mixer: 700kg/batch

• Fuel Consumption: Natural gas consumption: 8m³/ton

• Weighing Precision: Hot aggregate ±0.5%; bitumen ±0.3%; filler:±0.2%

• Hot Asphalt Temperature: 130℃-160℃(adjustable)

• Air Emissions: ≤50mg/Nm³

• Working Noise: ≤70db(A)

• Operation: Full Auto/Manual Operation

• Installation Power: 157kw

• Electrical Design: 380V-50Hz,3phase

• Plant Covering Space required: 35m length, 26m width, max height point 15m

• Documents: Lay-Out/ Electric Circuit Diagram; Chinese-English Operation

• Manual; Qualification Certificate
