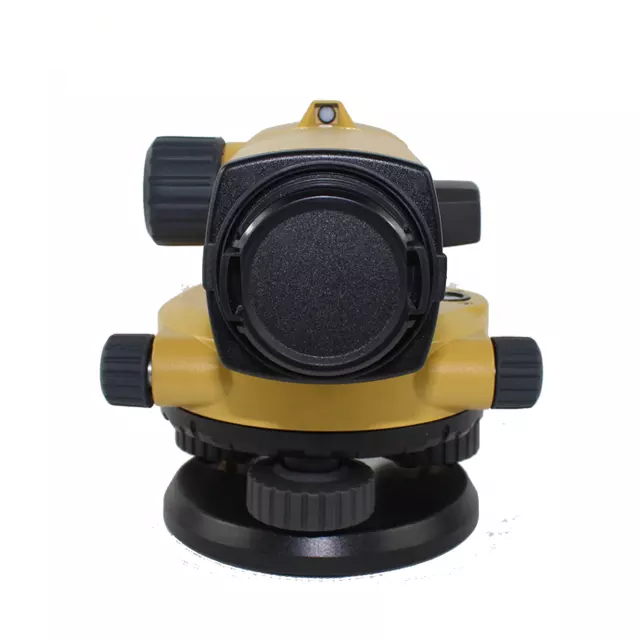

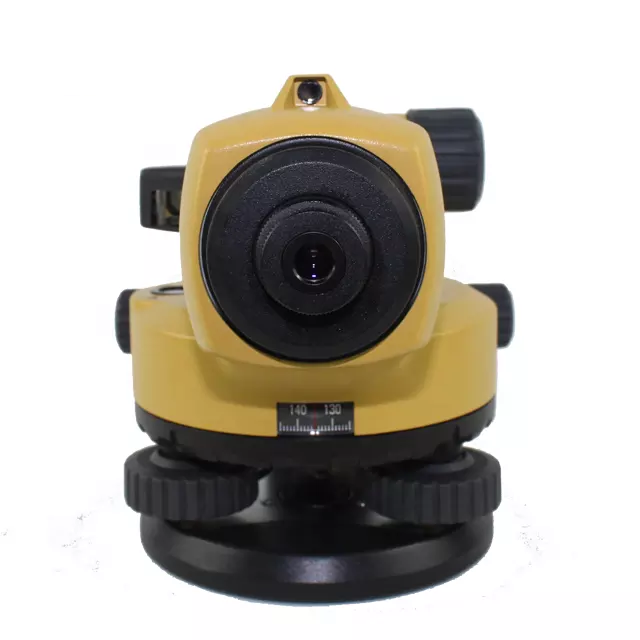

ATB2 32x magnification set auto level of 42mm objective aperture

Model:AT-B2

Length:215mm (8.46 in)

Magnification:32X

Objective Aperture:42mm (1.65 in.)

Resolving Power:3 in

Field of View:1°20' (2.3m / 7.5ft.)

at 100m/328ft:2.3m(7.5ft)

Min. Focus from end of telescope:0.2m(7.9 in)

Min. Focus from instrument center:0.3m (1ft)

Image:Erect

Stadia constant:0

Stadia ratio:100

Focusing Knob:2-peed

Sighting Aid:Peep sight

ACCURACY (1 km double run leveling)

Type:Pendulum compensator with magnetic damping system

Setting Accuracy:0.3 in.

Working Range:±15ft.

CIRCULAR LEVEL

Sensitivity:10ft/ 2mm

HORIZONTAL CIRCULE

Diameter:103mm(4.1 in)

Minimum division:1°/ 1gon

GENERAL

Operating temperature:-20 to +50ºC (-4 to +122°F)

Width:5.12 in (130mm)

Length:8.46 in (215mm)

Height:5.51 in (140mm)

Weigth:4.1 lbs (1.85kg)
