5 Hoppers Automatic Batching Weighing Belt Conveyors

Power (Kw)：1.1kw x 5

1,Function:Finish batching process according to customer’s formula. Batching Error+0.5%.

2,Structure Characteristics:5 sets of weighing belt conveyors, 5 sets of feeding hoppers, 1 set of general control panel.

3,Operation Instruction: 1 labor feed 1 hopper, totally need 5 labors.The batching process is finished automatically.

4,Main Spec:

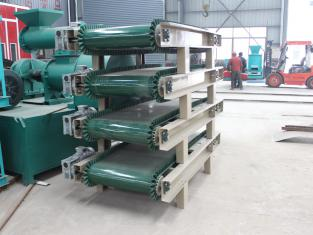

1),Weighing belt conveyor is with 2 weighing sensors, 1 rotary speed encoder, 2.0m length,650mm width,1.1kw/set.

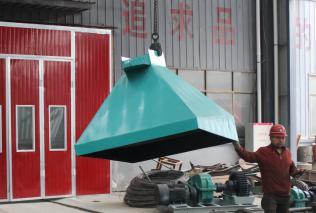

2),Hopper: Carbon steel Q235,3mm thickness. 1.5m width:1.5m length:1.5m,Volume: 1.5 CBM.

5,Capacity: 6-30 t/h 6,Remark:

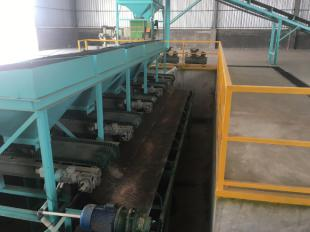

1),The input feeding hopper is same level with ground level. This batching system is below the ground level. After deal, The supplier r provide the pits construction drawing to the the buyer.

2),The feeding hopper is supported by the steel brackets.
