300Mbps Wi-Fi Range Extender

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easily expand wireless coverage at a push of Range Extender button

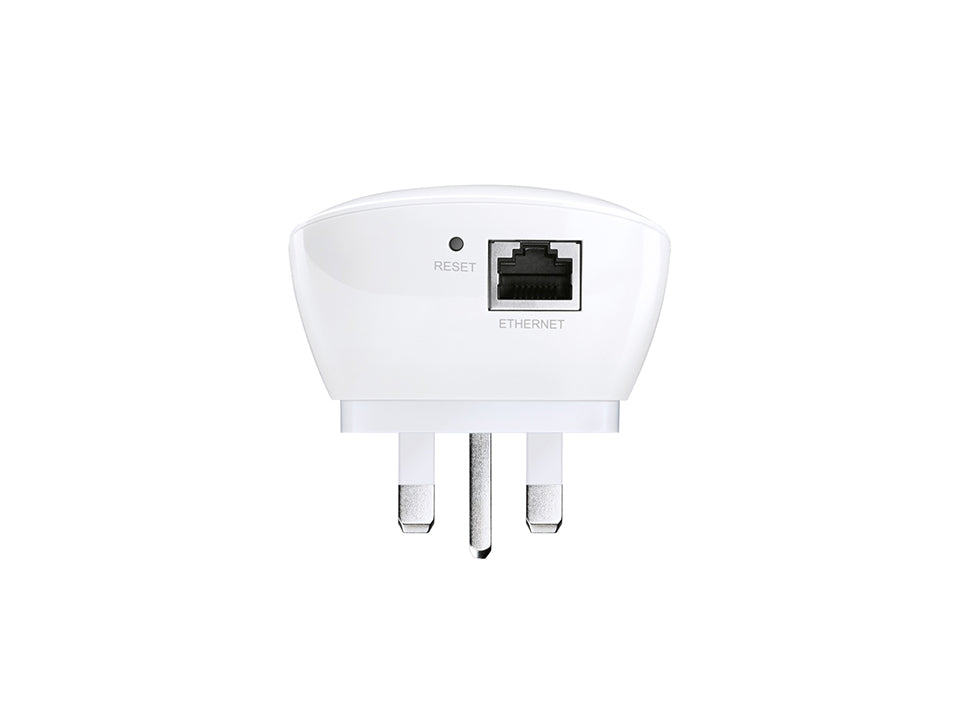

• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
• Tether App allows easy access and management using any mobile device
• LED Control function includes a Night Mode for peaceful sleep
• Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES

Plug Type EU, UK, US

Interface 1 * 10/100M Ethernet Port (RJ45)

Button RE (Range Extender) Button, Reset Button

Input Power 100-240V~50/60Hz

Power Consumption About 3W

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Antenna 2 * internal

WIRELESS FEATURES

Frequency 2.4~2.4835GHz

Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)

Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power < 20 dBm (EIRP)

Wireless Modes Range Extender/Access Point

Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function

Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK

OTHERS

Certification CE, RoHS

Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
Quick Installation Guide

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
