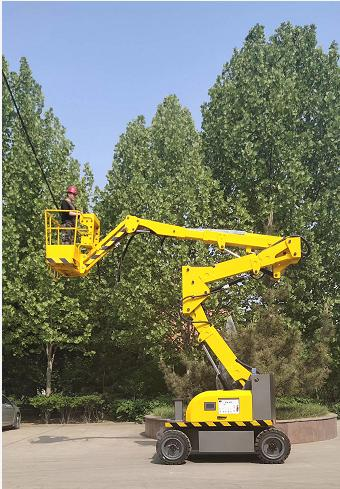

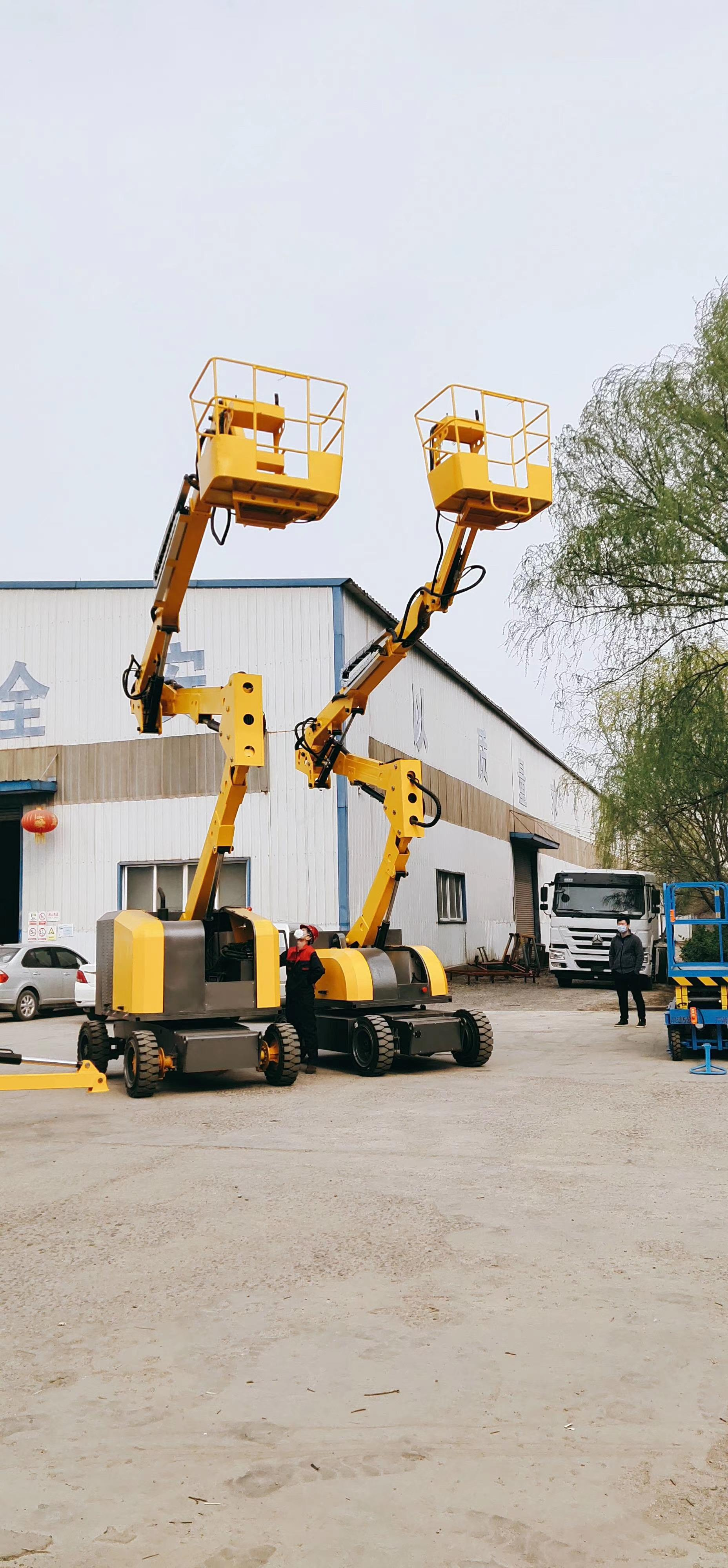

18m Self Propelled Boom Lift

Model: YDTGZ-182022

Load capacity: 200kg

Max Platform Height: 20m

Max Lifting Height: 18m

Platform size: 1200×600mm

Overall dimensions: 9400*2350*2600mm

Maximum working radius: 8.5m

Ground Clearance: 500mm

Wheelbase: 2200mm

axle track: 1800mm

Arms No.: 3 pcs (The 3rd armis telescopic boom)

Min turning radius: 4.5M

Platform rotation angle: 360°

Walking power: 4kw/48v

Up/Down Power: 3kw/24v

Arm deflection: ≤0.5%

Moving mode: Automatic moving

Drive steering type: 4x2x2

Control mode: Electric

Raise or extend walking speed: 5km/h

Maximum grade: 16.7°(30% 2WD)

Basic Parameters

• Turntable rotation speed: 0～0.8rpm
• Platform leveling: automatic
• Platform rotation: ±80°
• Fuel tank capacity: 100L
• Tyre: 33×12-20
• Total weight: 8500kg
• System voltage: 24V
• Drive steering type: 4*2*2
• Engine: Cummins B2.8-C58/Yanma 4TNV94L-B×PHZ
• Angle of axis rotation: 360°
• Engine rated power: 42 kw/2200rpm/35.5kw/2200rpm
• Working pressure: 10-15Mps
• Wind resistance: Wind grade VI
