Lucky

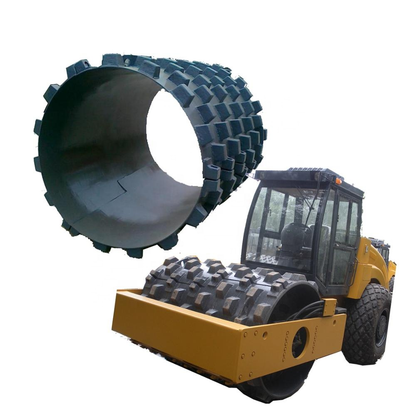

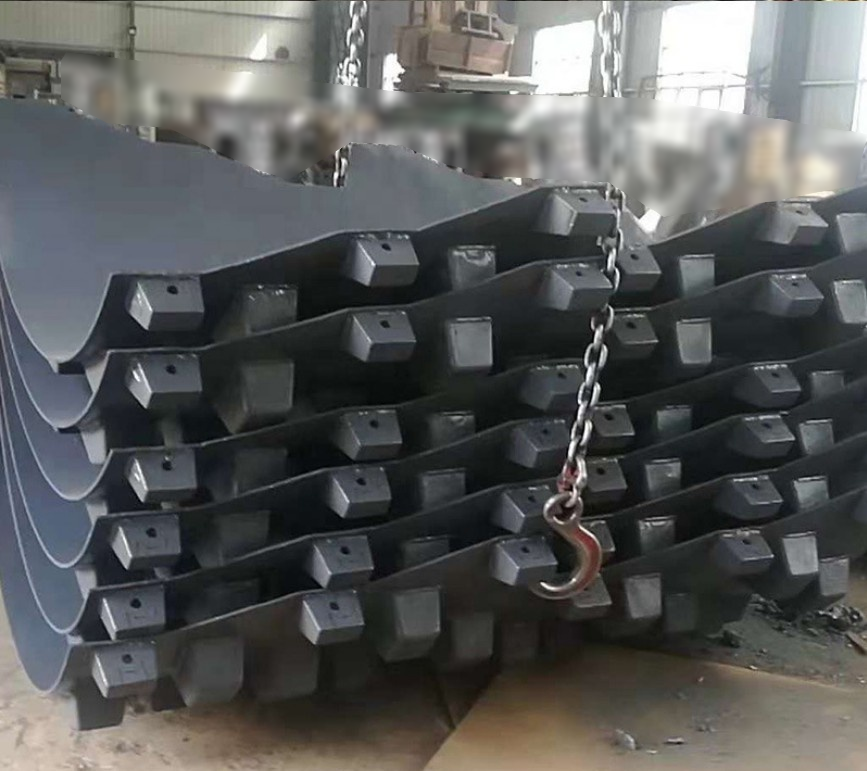

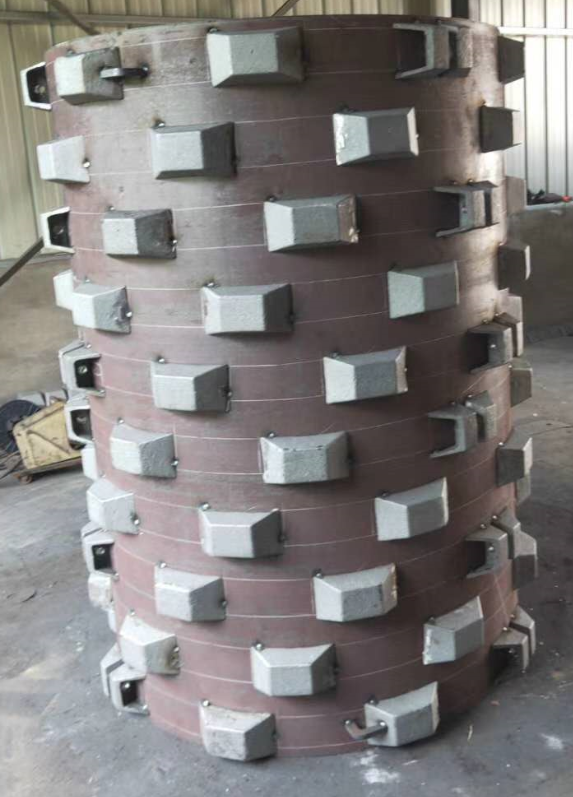

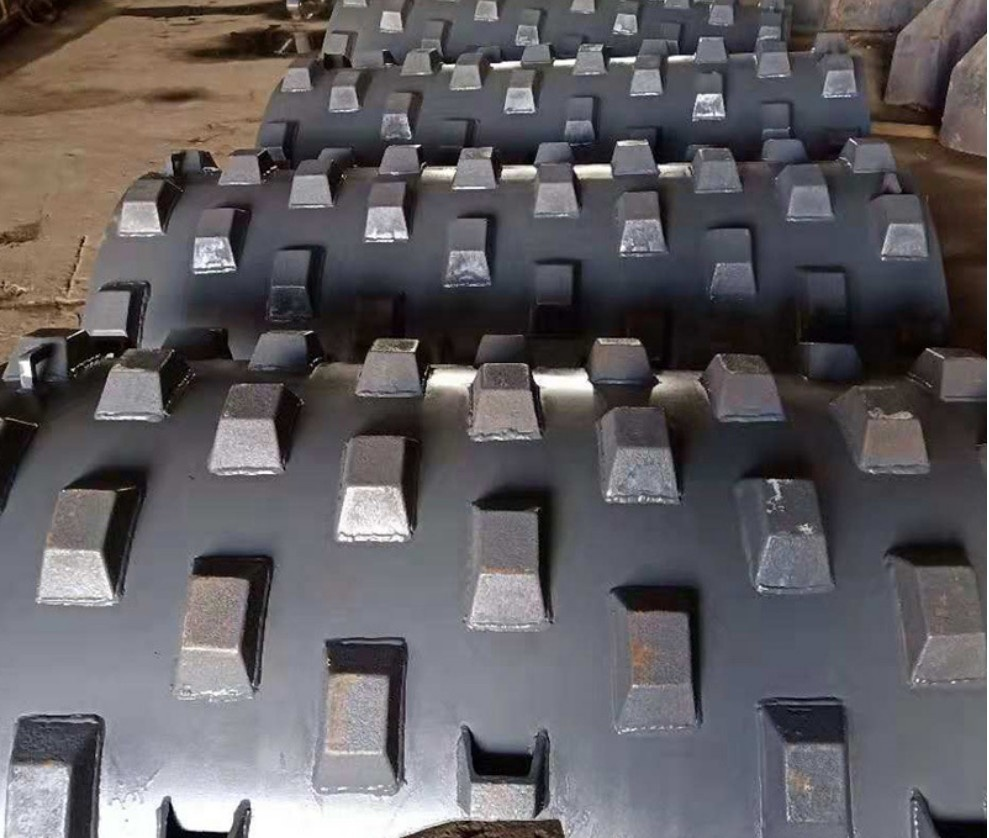

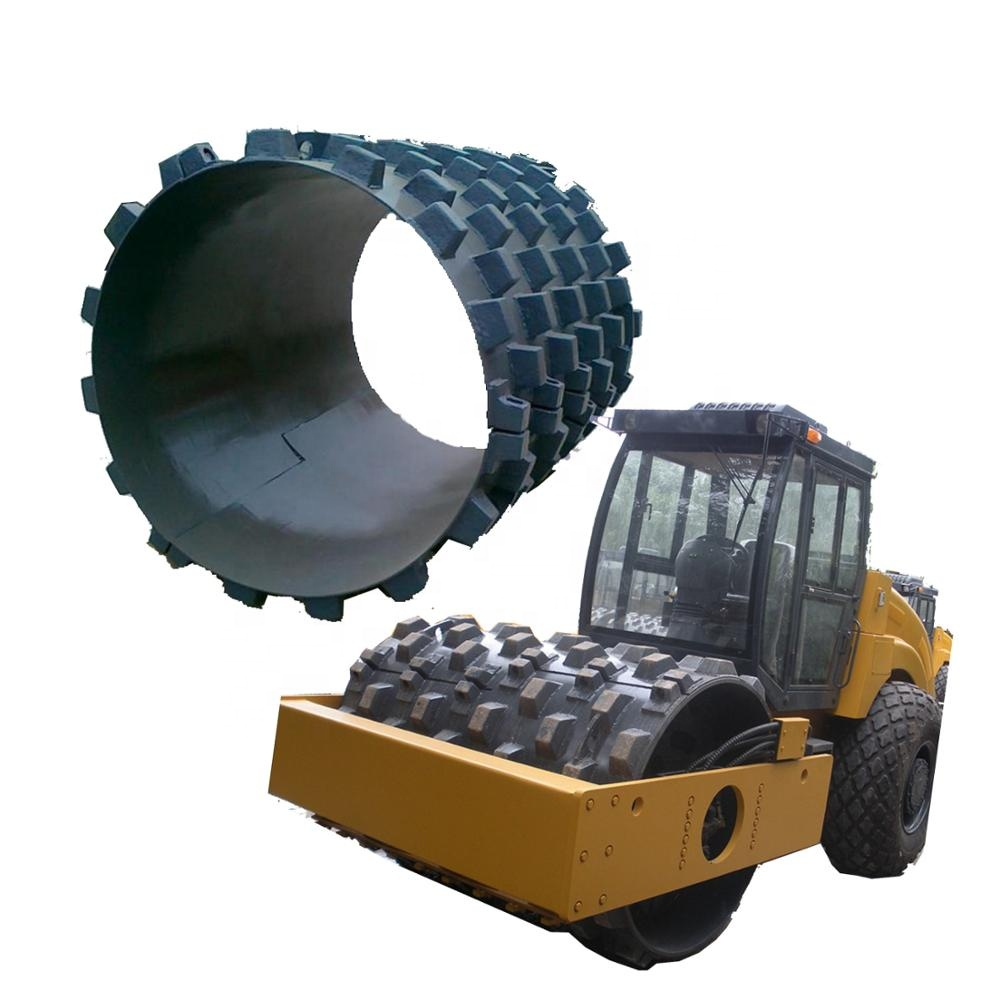

Padfoot Drum Wheel Roller, Bump Steel Wheel Roller for Road Roller 32kg/cm YDKT214B2022
Specifications
Introduction

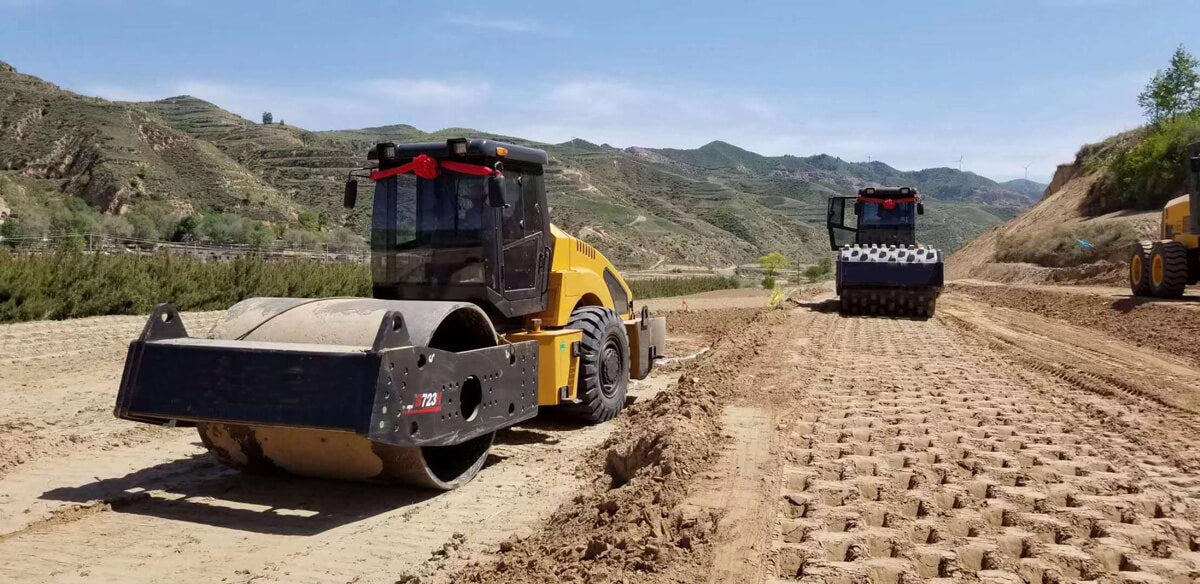

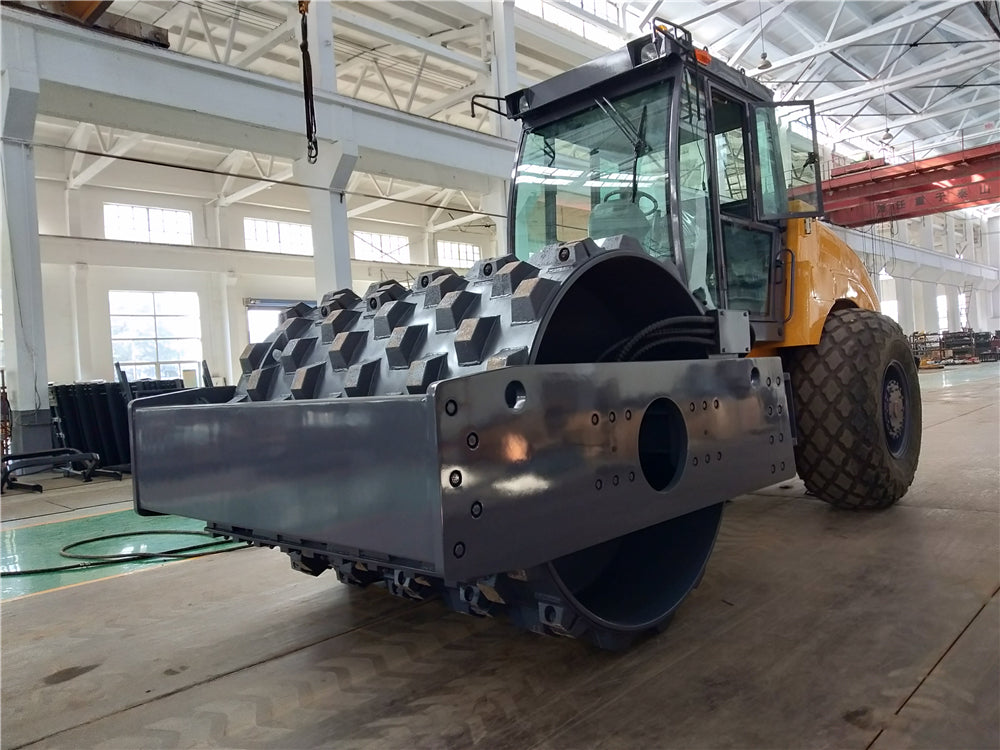

YDKT214B/S2022 Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, They are suitable for non-cohesive materials, such as sandy soil, gravel,crushed stones,rock fillings and slightly cohesive soils,designed for large foundation constructions such as high-class highways, mines, dams,airports, harbors, railways and industrial areas etc.
Main Technical Parameters
Model |
KT214B/S |
Static linear load |
326 |
Vibration frequency (Hz) |
30(28/35) |
Vibration amplitude (mm) |
1.7/0.8 |
Centrifugal force (KN) |
290/160 |
1st gear |
2.0 |
2nd gear |
4.0 |
3nd gear |
10.5 |
Gradeabillty (%) |
30 |
Steering angle |
35 |
Groud clearance (mm) |
432 |
Electrical voltage (V) |
24 |
Turning radius (mm) |
7000 |
Vertical oascillaion |
8 |
Type size |
23.1-26 |
Overall length (mm) |
5900 |
Overall width (mm) |
2280 |
Overall height (mm) |
3050 |
Drum width (mm) |
2100 |
Drum diameter (mm) |
1570 |
Drum rim thickness (mm) |
24 |
Wheelbase (mm) |
3185 |
Diesel model |
YC6B120 |
Diesel power (kw) |
88 |
Diesel speed |
2000 |
Fuel tank capacity (L) |
220 |
Hydraulic tank capacty (L) |
160 |
Main Feature
-
Mechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance. Reliable Yuchai Series diesel engine for convenient operation and maintenance.
-
Two sets of brake devices,a hand brake and foot pedal brake,assure the machine's safety and dependability. Spacious and comfortable cab mounted on top quality rubber damping elements.
-
World advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance, and low in cost.
Regular price
$71,875.00 USD
Regular price
Sale price
$71,875.00 USD
