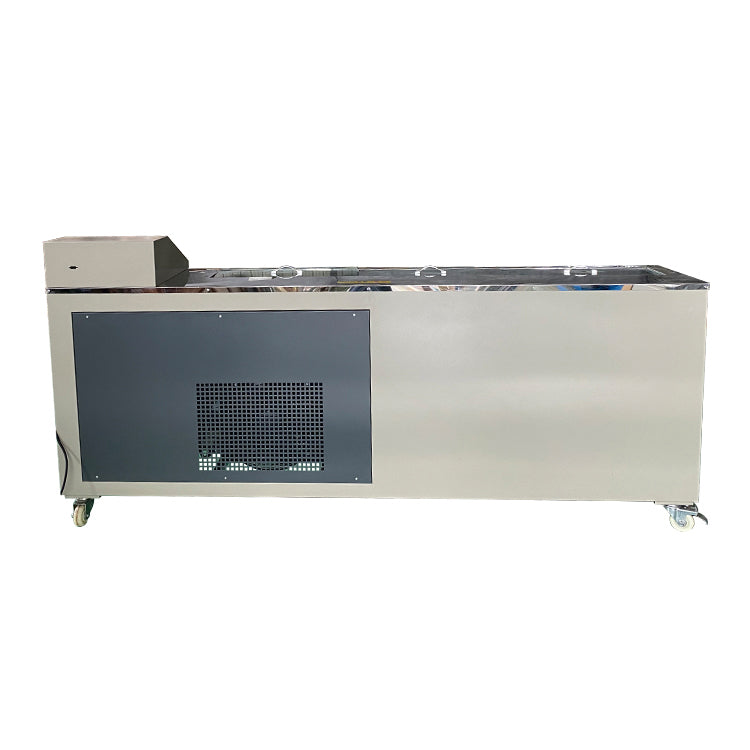

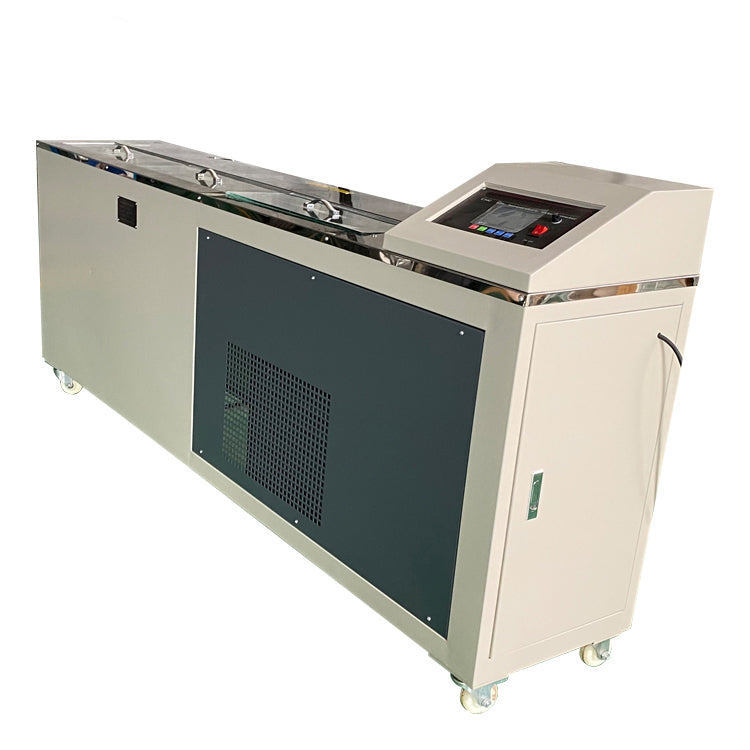

Intelligent Asphalt Elongation Tester YDLYY-82022

Introduction
This instrument is suitable for measuring the elongation of various specifications and models of
asphalt and liquid asphalt residues after distillation and asphalt emulsion evaporation residues. It is
widely used in production, road construction and scientific research departments, and is more
suitable for the test of modified asphalt. It meets the standards of the Ministry of Transport
(JTG-E20-2011).
Features
The liquid crystal low temperature extensometer conforms to a new generation of high-tech
products. It adopts an external lead screw and linear guide rail positioning, which is stable in
stretching, high in accuracy and convenient for observation. The stretching operation system

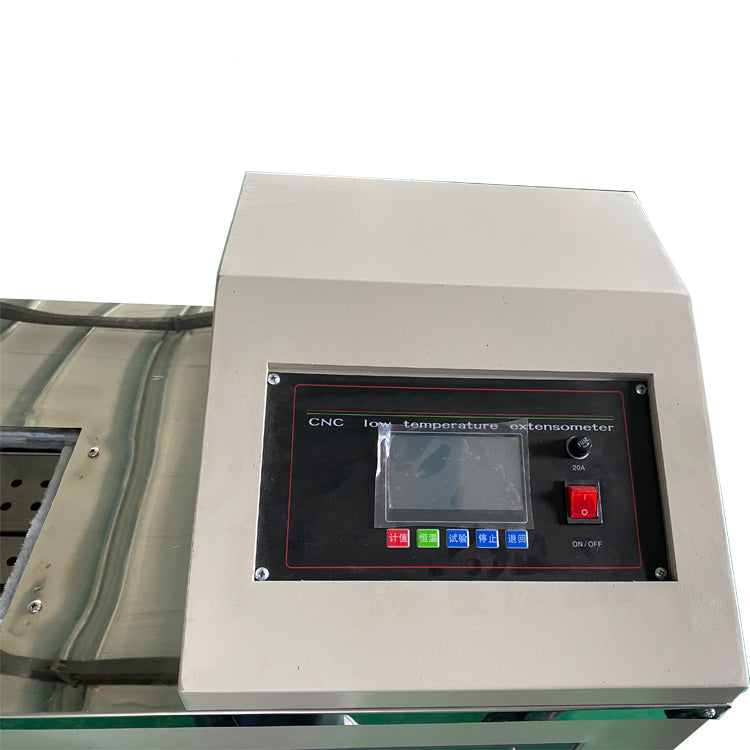

adopts a step servo controller. The control part adopts microcomputer processing, can store 100
sets of data
display the movement speed and precision temperature control, and the humanized
operation page.
Technical Data
Maximum measuring working length: 1500mm.
Moving speed of stretching slide: 10mm/min，50mm/min，100mm/min（adjustable)
Stretching motor power: 50W
Electric heating tube power: 2KW
Cooling power: 2KW
Water bath temperature control range: 5--50℃
Temperature control accuracy: ±0.1℃
Cooling capacity: 4000 calories/min
Working power supply voltage: 220V 50HZ

The machine size is 204x43x93cm, weight is about 146kgs
