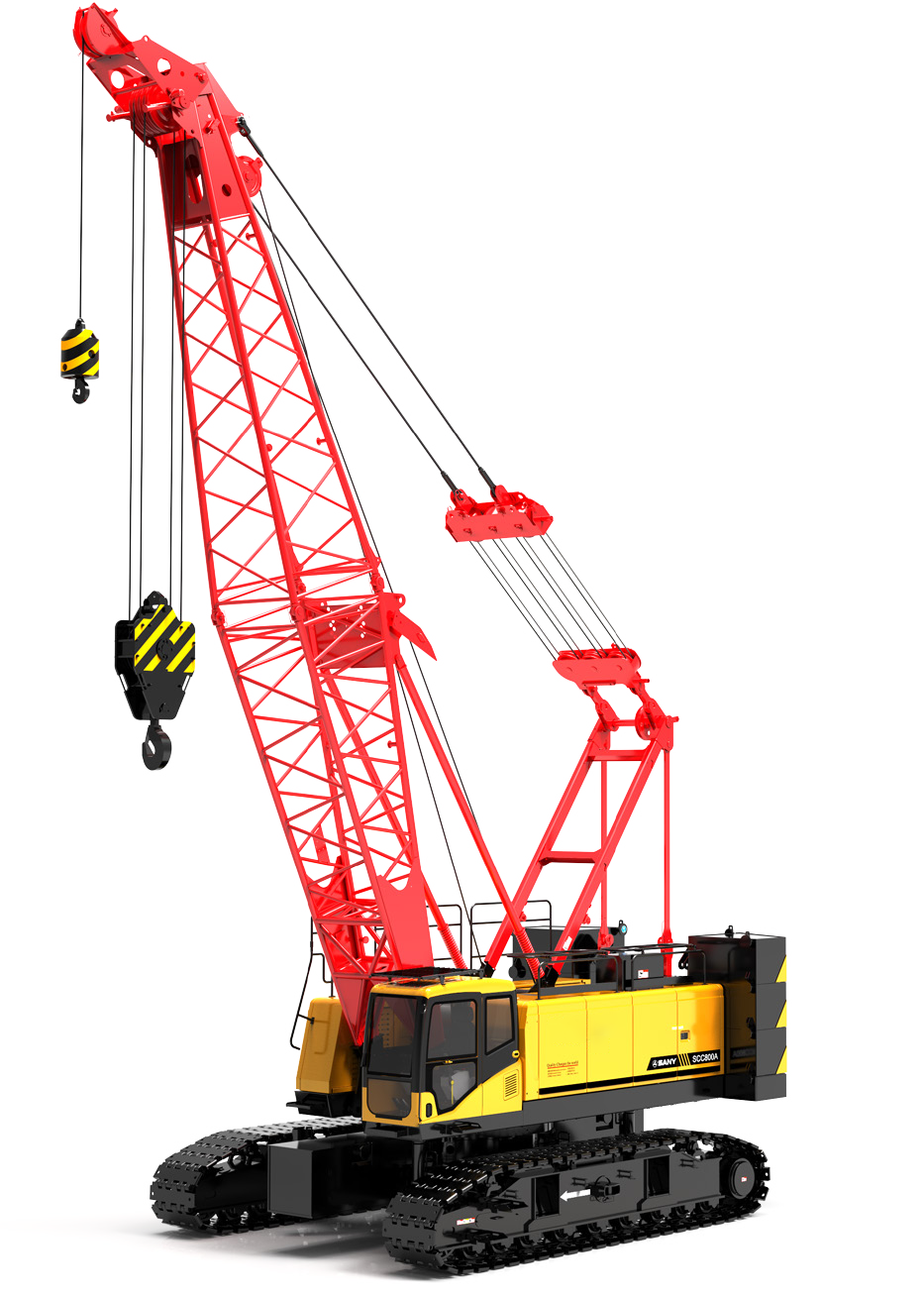

Hydraulic Engine Crawler Crane Tower Mobile Truck Crane 85t C850A-6
Specifications
Please click to look for details
Product Specification
Engine
▪ Wei Chai WP7 Diesel Engine.
▪ Type: 6-cylinder in-line, direct injection, water-cooled, intercooler.
Compliant with European Off-highway Tier III emission standard,
and Chinese Off-highway Tier III emission standard.
▪ Displacement: 7.47L.
▪ Rated power 199kW/2300rpm.
▪ Operation power: 199kW/1800rpm.
▪ Max. output torque 1200N·m/(1200~1500)rpm.
▪ Starter device: 24V-5.0kW.
▪ Battery: two 12V large battery in serial connection.
▪ Fuel tank: 400L.
Hydraulic System
Main pump: adopt large piston pump with open displacement
to provide oil for the machine actuator.
▪ Gear pump: dual gear pumps are used for swing, radiator and
control circuit.
▪ Control: the main pump adopt the control of electrical
proportionate positive flow; winch motor is piston motor of
variable displacement. The operation components are two
hydraulic control handles, and one dual travel pedal control
valve to control each actuator in proportionate way.
▪ Max.pressureofsystem: 35Mpa.
▪ Main/aux.load hoist and travel system: 35Mpa.
▪ Swing system: 24MPa.
▪ Control system: 5MPa.
▪ Hydraulic oil tank capacity: 305L.
Electrical Control System
▪ SYIC-2 integrated control system independently developed by
SANY is adopted to ensure high system integration, accurate
operation, and reliable quality. The control system mainly
includes power system, engine system, master control system,
load moment limiter system, auxiliary system, and safety
monitoring system.
▪ The controller, monitor, and the engine communicates through
CAN Bus.
▪ Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, engine working hours, lifting conditions
and boom angle.
▪ The Skyeye Monitoring System and Remote Control of machine
traveling on/off the trailer is offered as optional.
Swing Mechanism
▪ Swing brake adopts wet, spring loaded, normally-closed brake,
and braking through spring force.
▪ Swing system, equipped with integrated swing buffer valve,
has free slipping function. It is featured in steady starting and
control, and excellent inching function. Unique swing buffer
design and steadier brake.
▪ Internal-gear swing drive can swing the upperworks by 360°.
▪ Swing lock: Swing lock is designed. When the operation is over
or the machine is in transport, the upperworks can be locked
tightly.
▪ Swing bearing: single row ball bearing.
▪ Swing speed: 0-2.4rpm.
